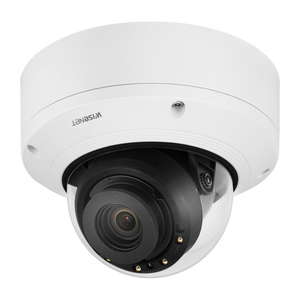

Hanwha XND-8080RV 5MP Vandal-Resistant Dome Camera

Hanwha XND-8080RV 5MP Day/Night Weatherproof Outdoor Vandal-Resistant Micro Dome IP Camera

The Hanwha XND-8080RV delivers professional-grade surveillance in a compact micro dome form factor, engineered for demanding outdoor environments. Built with a 1/1.8" 5MP CMOS sensor, this camera captures exceptional detail across diverse lighting conditions, making it ideal for commercial exteriors, parking facilities, transportation hubs, and public areas requiring robust security coverage.

Key Features

• 5MP Resolution – 5-megapixel sensor provides superior image clarity for reliable object and facial identification
• Motorized Varifocal Lens – 3.9–9.4mm (2.4x) with DC auto iris and P iris control for flexible field-of-view adjustment
• Exceptional Low-Light Performance – 0.07 Lux color (F1.3, 1/30sec) and 0 Lux B/W with IR LED; 30m IR illumination range
• Day/Night Capability – Automatic ICR (Infrared Cut filter Removal) switching ensures 24/7 visibility
• IK08 Vandal Rating – Reinforced housing withstands impact and tampering in high-risk environments
• Advanced WDR Technology – 120dB Wide Dynamic Range with HLC and DWDR balances exposure in challenging lighting scenes
• Intelligent Analytics – Motion detection, face detection, tamper alarm, defocus detection, directional detection, virtual line crossing, loitering, appear/disappear, and audio detection
• PoE + 12VDC Power Options – IEEE 802.3af Class 3 PoE (max 10W) or 12VDC (max 9W)
• H.265/H.264/MJPEG Compression – WiseStream II smart codec reduces bandwidth while maintaining quality
• Dual MicroSD Card Slots – Up to 512GB edge storage per slot for local recording

Technical Specifications

• Pan/Tilt/Rotate: 0°–354° / 0°–67° / 0°–355°
• Frame Rate: 30fps (H.264/H.265/MJPEG)
• Video Compression: H.265/H.264 Main/Baseline/High, MJPEG
• Audio: G.711/G.726 compression; selectable mic or line input; line output
• Streaming: Up to 10 profiles; unicast (20 users) and multicast support
• Security: HTTPS/SSL, IP filtering, 802.1X authentication, digest login, user access logs
• Protocols: ONVIF Profile S/G/T, SUNAPI (HTTP API), IPv4/IPv6, RTSP, DHCP, DNS, DDNS, NTP, SNMPv1/v2c/v3
• Operating Range: –10°C to +55°C; less than 90% RH
• Dimensions/Weight: Ø140.8 × 113.0mm; 732g (1.61 lb)

Advanced Features

The XND-8080RV includes digital image stabilization, defog support, LDC (Lens Distortion Correction), and SSNR V noise reduction for enhanced video quality. Flexible privacy masking (32 polygonal zones) with color options and mosaic mode protects sensitive areas. Motion detection supports 8 polygonal zones with dual alarm I/O for integration with external systems. Multiple backlight compensation modes (BLC, HLC, WDR, DWDR, SSDR) and electronic shutter control (2–1/12,000sec) ensure optimal exposure in extreme lighting.

Karl Wilson

The XND-8080RV is a purpose-built outdoor vandal camera that balances compactness with feature richness. The 2.4x motorized varifocal lens eliminates fixed-lens limitations, enabling scene optimization during installation and runtime adjustment for coverage refinement. The IK08 rating certifies resistance to 5J impact—suitable for environments with moderate vandalism risk but not heavy-duty applications.

Low-light performance is a standout: 0.07 Lux color sensitivity rivals cameras with larger sensors, and the 30m IR range covers typical outdoor distances. WDR with 120dB dynamic range handles parking lot scenarios where bright sky and dark ground coexist. The 5MP resolution provides sufficient detail for license plate and facial recognition at 15–20 feet.

Network efficiency is strong—H.265 encoding and WiseStream II smart codec reduce storage and bandwidth demands by 50%+ compared to standard H.264, critical for edge storage and multi-camera deployments. ONVIF Profile S/G/T compliance ensures VMS compatibility across platforms (Hanwha Wisenet, Milestone, Genetec, etc.).

Considerations: 10W PoE consumption is moderate but verify power budget on legacy PoE switches. Dual MicroSD slots support failover but are not redundant storage. Audio input requires external mic installation. The compact micro dome form factor sacrifices some mounting flexibility versus larger housings but excels in discreet, weather-sealed applications.
