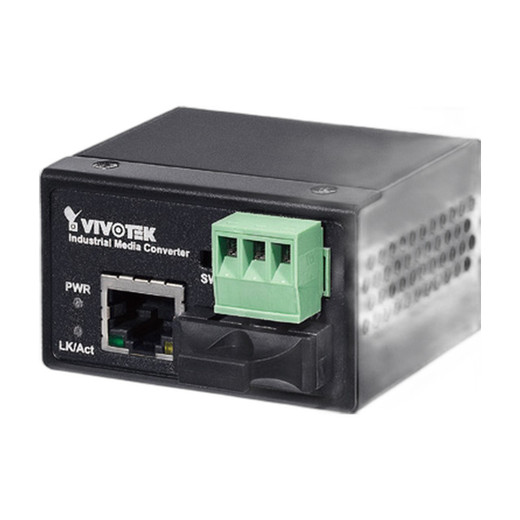

Vivotek AW-IHS-0201 Industrial Media Converter

Vivotek AW-IHS-0201 Industrial Media Converter

The Vivotek AW-IHS-0201 is an industrial-grade media converter designed to extend network connectivity in demanding environments. This device seamlessly converts 10/100Base-TX Ethernet signals to 100Base-FX fiber optic format, enabling reliable data transmission over distances up to 30 kilometers using single-mode SC fiber connections at 1310nm. Perfect for industrial installations, outdoor deployments, and critical infrastructure where extended range and signal integrity are essential.

Key Features

• Extended Fiber Reach: Supports up to 30 km transmission via single-mode SC fiber with 100Base-FX technology
• Dual Protocol Support: Handles 10Base-T and 100Base-TX Ethernet standards with auto-negotiation and MDI/MDI-X detection
• Industrial Durability: Operates reliably across -40°C to 75°C temperature range with IP40 aluminum housing
• Efficient Design: Consumes only 2W power with 128 KB buffer memory and store-and-forward transmission method
• Flexible Installation: DIN-rail and wall-mount options for diverse deployment scenarios
• Diagnostic Monitoring: LED indicators display power, LAN activity, and speed status
• Wide Power Input: Accepts 18V-36VAC or 12V-60VDC input via removable terminal block

Technical Specifications

• Ports: 1x RJ45 Fast Ethernet, 1x SC single-mode fiber
• Performance: 14,880 pps at 10 Mbps, 148,000 pps at 100 Mbps
• MAC Address Table: 1,024 entries
• Cabling: Cat. 5/5e UTP/STP for Fast Ethernet
• Certifications: CE, C-Tick, FCC, VCCI, LVD
• Dimensions: 59 x 49 x 36 mm; Weight: 0.08 kg
• Humidity: 5-95% non-condensing (operating and storage)

Industrial Applications

Ideal for manufacturing facilities, utility substations, transportation systems, and outdoor surveillance networks requiring long-distance Ethernet extension without signal degradation. The compact, rugged design integrates easily into existing DIN-rail infrastructure.
