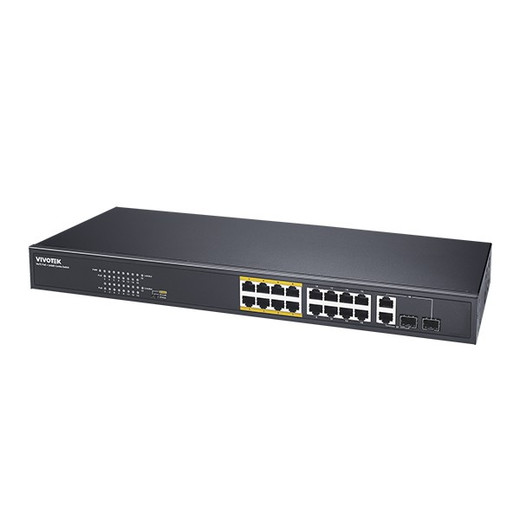

Vivotek AW-FGT180F250 16-Port PoE+ Network Switch

Vivotek AW-FGT180F250 16-Port PoE+ Network Switch

The Vivotek AW-FGT180F250 is a robust unmanaged PoE+ switch designed for professional IP surveillance and security deployments. With 16 Fast Ethernet PoE+ ports and a comprehensive 250W power budget, this switch delivers reliable power and connectivity to multiple high-demand security devices simultaneously. Its plug-and-play operation and industrial-grade construction make it an ideal backbone for distributed camera networks and security infrastructure.

Key Features

• 16 x 10/100Mbps PoE+ Ports (IEEE 802.3at, up to 30W per port)
• 2 x Gigabit RJ45/SFP Combo Uplink Ports for high-speed backbone connectivity
• 250W Total PoE Power Budget for simultaneous multi-device powering
• 8 Extended-Range PoE Ports supporting 250M distance at 10Mbps
• Unmanaged plug-and-play operation — zero configuration required
• VLAN support for network segmentation and traffic management
• 6KV PoE surge protection and 4KV AC surge protection
• Industrial metal casing for outdoor and harsh environment deployment
• Wide operating temperature range: 0°C to 50°C

Technical Specifications

• Switching Capacity: 7.2 Gbps
• MAC Address Table: 16K entries
• Jumbo Frame Support: 1,536 bytes
• Power Input: 100VAC–240VAC, 280VAC (4 hours), 300VAC (1 minute)
• PoE Output: 54VDC per port; IEEE 802.3af (15.4W max) and 802.3at (30W max)
• Auto-MDI/MDI-X and auto-negotiation supported
• Dimensions: 440 x 207 x 44 mm; Weight: 2.93 kg
• Certifications: CE, UKCA, FCC, VCCI, C-Tick Class A; EN62368-1, IEC62368-1 safety standards
• Warranty: 24 months

Applications

Perfect for IP surveillance networks, access control systems, VoIP installations, wireless access point deployments, and any security infrastructure requiring centralized power distribution and high-density PoE connectivity. The extended-range PoE capability supports long cable runs to remote cameras, while dual Gigabit uplinks enable seamless integration with core network infrastructure.

James Everett

The AW-FGT180F250 excels in surveillance-specific deployments where simplicity and reliability are paramount. As an unmanaged switch, it eliminates configuration overhead—critical for integrating multiple camera brands without protocol conflicts. The 250W budget supports 8 simultaneous high-power cameras (30W each) plus additional lower-power devices, making it suitable for mid-to-large camera deployments.

The extended PoE range (8 ports at 250M) is particularly valuable for distributed outdoor networks where running separate power infrastructure is impractical. Dual Gigabit uplinks prevent bottlenecking on the backbone, ensuring uncompressed HD video streams don't degrade performance. Industrial-grade surge protection and temperature tolerance make it suitable for outdoor cabinets and weatherproof enclosures.

The 24-month warranty and compliance with international safety/EMC standards provide enterprise-grade reliability without managed-switch complexity.
