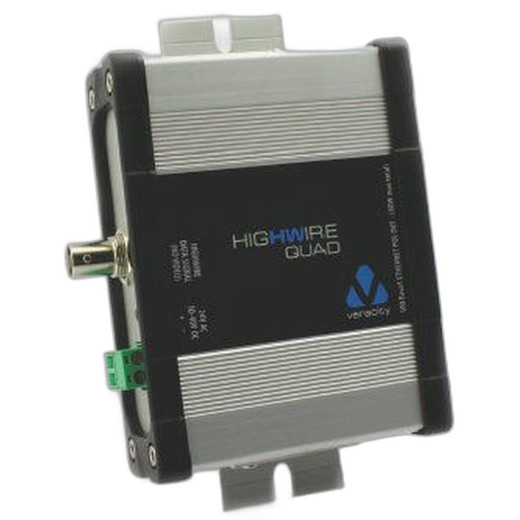

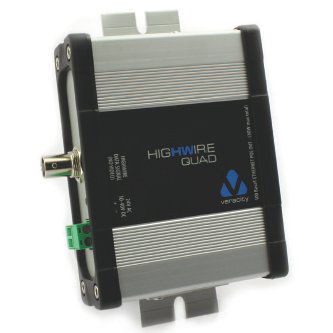

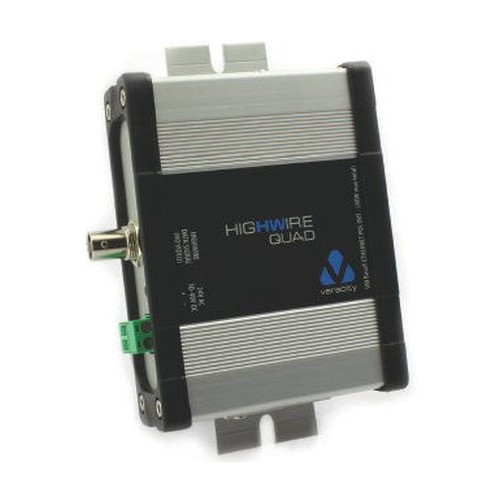

Veracity VHW-1U Ethernet over Coax Extender

Veracity VHW-1U Ethernet over Coax Extender

Overview

The Veracity VHW-1U is a purpose-built Ethernet extender engineered to transmit 10/100 Mbps data signals over existing coaxial infrastructure. Designed for security integrators and system installers who require network extension without re-running dedicated Ethernet cabling, the VHW-1U leverages installed coax plant to simplify deployment and reduce infrastructure costs. This extender is particularly valuable in retrofit installations, surveillance networks, and distributed security systems where cable runs are already established.

The VHW-1U operates as a transparent bridge, allowing standard Ethernet devices—including IP cameras, network switches, access control readers, and management consoles—to communicate over coaxial media. By eliminating the need for parallel copper or fiber runs, the VHW-1U accelerates project timelines and minimizes physical disruption in occupied facilities.

Key Features

• 10/100 Mbps Ethernet Speed: Supports Fast Ethernet data rates for real-time video streaming, control signaling, and network management traffic over coax
• Coaxial Cable Extension: Transmits network signals over existing RG-59, RG-6, or equivalent coaxial infrastructure without requiring parallel Ethernet runs
• Transparent Bridging: Operates as a media converter, requiring no configuration or IP assignment for basic operation
• 1U Rackmount Form Factor: Compact rackable design suitable for central hub installations, cable headends, or network distribution points
• Dual Coax Ports: Provides redundant or multi-run connectivity for extended reach or system resilience
• Low-Latency Transmission: Minimal propagation delay ensures real-time performance for streaming and control applications
• Passive or Active Power Options: Flexible power architecture for various deployment scenarios
• Wide Compatibility: Works with standard Ethernet endpoints requiring no driver or firmware installation
• Industrial-Grade Build: Engineered for continuous operation in distribution, hospitality, government, and critical infrastructure environments

Integration & Compatibility

The VHW-1U integrates seamlessly into existing coaxial plant infrastructure, making it ideal for retrofit projects in facilities where re-cabling is impractical or cost-prohibitive. Security integrators commonly deploy the VHW-1U in:

• IP video surveillance systems extending camera feeds across campus networks
• Access control and badge reader networks distributed across multiple floors or buildings
• Network backbone extensions in facilities with mature coaxial infrastructure
• Telecom and cable distribution headends requiring transparent Ethernet bridging
• Remote site network extensions where Ethernet terminations are limited

The VHW-1U supports standard 10/100 Mbps endpoints including network switches, IP cameras, NVRs, access controllers, and industrial IoT devices. No MAC address learning, VLAN configuration, or spanning tree management is required for basic operation, reducing commissioning complexity and support overhead.

Marty Allison

I've specified the Veracity VHW-1U on several retrofit surveillance and access control projects where budgets and facility constraints made dedicated Ethernet cabling unfeasible. The unit's ability to operate transparently over existing coax plant is a genuine labor and material saver. Unlike active media converters that require managed configuration, the VHW-1U functions as a straightforward bridge, which means fewer variables to troubleshoot during deployment and commissioning.

Technical Highlights:

• 10/100 Mbps Performance: Adequate for standard IP camera streams, access control traffic, and real-time telemetry without the need for Gigabit infrastructure
• Coax Leverage: Direct integration with RG-59/RG-6 plant eliminates dual-cable runs and simplifies retrofit logistics

Deployment Considerations:

• Verify coax cable quality and termination integrity before deployment; signal degradation compounds with cable age and splice quality
• Test bandwidth requirements in advance—while 10/100 Mbps handles single or dual HD camera streams and control traffic, high-volume video aggregation may exceed available throughput
• Plan for rack or wall-mount placement at central distribution points; the 1U form factor suits standard network enclosures
• Confirm power supply availability at the hub location; some configurations require active power injection for extended runs

The VHW-1U is a reliable choice for integrators seeking to minimize infrastructure investment while extending network reach in legacy or coaxial-dominant facilities. I recommend it for retrofit surveillance, distributed access control, and telecom backbone applications where Ethernet over coax is already a project constraint.
