Speco O2BFRM 2MP IP Bullet Camera 7-22mm Varifocal

Speco Technologies O2BFRM 2MP IP Bullet Camera

Overview

The Speco Technologies O2BFRM is a 2MP outdoor IP bullet camera designed for surveillance deployments requiring facial recognition capability and flexible lens control. This wired network camera combines a motorized 7-22mm varifocal lens with native facial detection analytics, making it suitable for perimeter monitoring, entrance monitoring, and mixed indoor-outdoor installations where identification accuracy matters. The camera ships with a junction box, streamlining installation logistics for integrators working in multi-camera environments.

When this is the correct choice

Choose the O2BFRM when your project requires IP67-rated outdoor durability, facial recognition capability, and flexible field-of-view adjustment without adding a separate motorized lens turret. The motorized 7-22mm lens allows remote focus and zoom adjustment, eliminating revisits for focal length tuning. Two-way audio support enables voice-down communication at monitored zones. This camera is well-suited for retail entrances, facility perimeters, parking structure monitoring, and mixed deployment scenarios where both motion detection and facial analytics are operational requirements.

When to choose a different model

If your deployment requires fixed focal length or a significantly wider or narrower field of view, a fixed-lens alternative may reduce cost and simplify configuration. For applications requiring pan-tilt-zoom (PTZ) motion or 360-degree scanning, choose a PTZ form factor. If facial recognition is not required and basic motion detection suffices, lower-resolution or non-analytics-enabled models may provide better cost efficiency. For extremely long-range identification beyond typical motorized bullet capability, consider higher megapixel cameras or specialized telephoto deployments.

Optics and field of view

The 7-22mm motorized varifocal lens provides flexible focal length adjustment, supporting both wide-area monitoring and targeted identification work. This range allows integrators to configure the camera for multiple use cases—from covering a broad entrance zone to focusing on specific identification points—without physical lens replacement. The motorized design enables remote focus adjustment, reducing field visit costs and supporting commissioning workflows where focal optimization occurs after initial installation.

Imaging performance and low light

The O2BFRM delivers 2MP resolution (1920×1080) at 30fps using a 1/2.8" CMOS sensor. Night vision is supported through the camera's day/night switching capability, enabling continuous surveillance across lighting transitions. Wide Dynamic Range (WDR) helps recover detail in mixed lighting environments—typical in entrance zones and perimeter installations where backlit conditions or reflective surfaces challenge image contrast. Together, these features support forensic-quality playback and facial recognition accuracy in both daylight and low-light scenarios.

Analytics and edge capabilities

Built-in edge analytics include motion detection, line crossing detection, and face detection. The facial detection capability supports identification workflows, reducing false-positive alerts common in motion-only systems and enabling integrators to deliver more actionable notifications to end users. These analytics run on the camera itself, reducing bandwidth and storage overhead compared to server-side processing and enabling lower-latency alerting in real-time response environments.

Video encoding and streaming

The camera supports H.265+, H.264+, and MJPEG compression modes, giving integrators flexibility to optimize for bandwidth constraints, storage efficiency, and codec compatibility across legacy and modern VMS platforms. H.265+ encoding significantly reduces bitrate while maintaining image quality, a practical advantage in bandwidth-limited or high-camera-count deployments. Frame rate is fixed at 30fps, suitable for general surveillance; higher frame rates are not required for facial recognition accuracy at this resolution.

Network and security

The O2BFRM is ONVIF Profile S compliant, ensuring compatibility with standards-based VMS platforms and enabling vendor-neutral integration workflows. The camera connects via standard Ethernet, supporting both PoE (802.3af) and DC 12V auxiliary power configurations. This dual power option accommodates both PoE-only installations and hybrid deployments where DC backup or supplemental power is preferred. Network connectivity is wired only; wireless options are not supported.

Environmental and durability ratings

IP67 rating provides protection against water ingress and dust, qualifying this camera for outdoor and semi-exposed mounting locations. Operating temperature range of -22°F to 140°F (-30°C to 60°C) supports temperate and warm climates. The compact form factor and 2.3 lbs weight simplify wall and ceiling mounting logistics. The included junction box facilitates organized cable termination and power distribution, a practical addition that reduces field material costs and installation time.

Power and installation notes

Power consumption is 12W, well within PoE+ budgets on standard enterprise switches. The camera supports both PoE (802.3af) and DC 12V, allowing flexibility in power architecture decisions. Wired-only connectivity means integrators must plan cable runs and network access points during site survey; no wireless fallback is available. The included junction box streamlines multi-camera installations, providing a centralized point for power and signal termination.

What is included

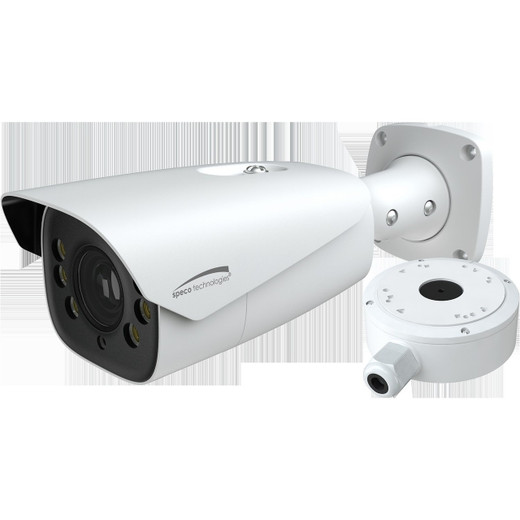

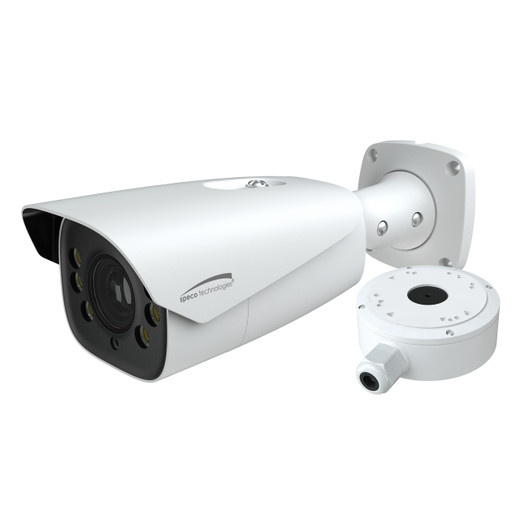

• Speco Technologies O2BFRM 2MP IP bullet camera
• 7-22mm motorized varifocal lens (pre-installed)
• Junction box

Ted Perry

I've specified the Speco O2BFRM in mixed indoor-outdoor deployments where facial detection and flexible zoom reduce commissioning overhead. The motorized lens is a practical asset—remote focus adjustment has saved us multiple site visits on entrance installations. The included junction box is often overlooked but genuinely useful in multi-camera projects; it's one less field assembly task.

Technical Highlights:

• Facial detection: Native edge analytics support identification workflows, reducing false-positive motion alerts and enabling smarter alerting at facility entry points.
• Motorized 7-22mm lens: Remote focal adjustment eliminates physical reinstallation; WDR handling of backlit entrance zones is solid for recognition-grade imagery.
• Dual power support: PoE or DC 12V flexibility accommodates both modern PoE-only infrastructure and hybrid power architectures.

Deployment Considerations:

• IP67 rating and -22°F to 140°F operating range support outdoor and semi-exposed mounting; verify junction box placement to avoid water pooling during heavy rain or snow melt.
• H.265+ encoding delivers significant bandwidth savings on high-count deployments; confirm VMS platform supports this codec before large rollouts.
• Wired Ethernet only—plan cable runs and network access points during site survey; no wireless failover available.

The O2BFRM is a solid choice for integrators building entrance monitoring and perimeter systems where facial recognition, outdoor durability, and flexible lens control justify the investment. The motorized lens and edge analytics reduce operational friction compared to fixed-lens alternatives.
