Speco ACSR62L Mullion Keypad & Smart Card Reader

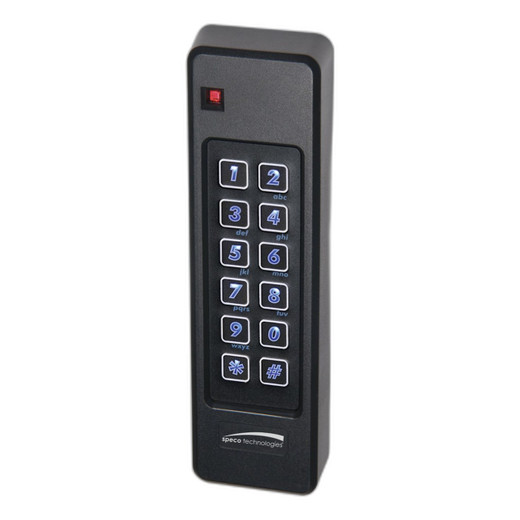

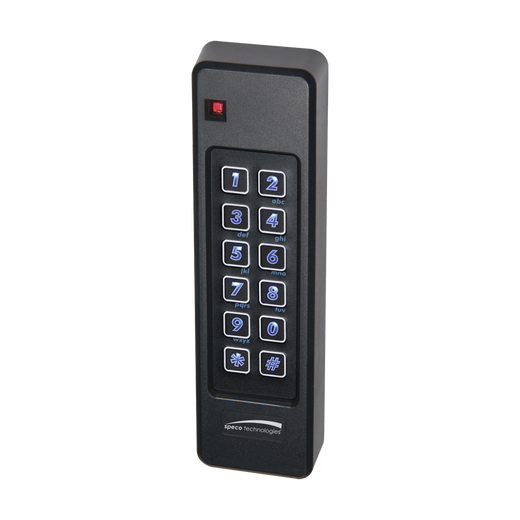

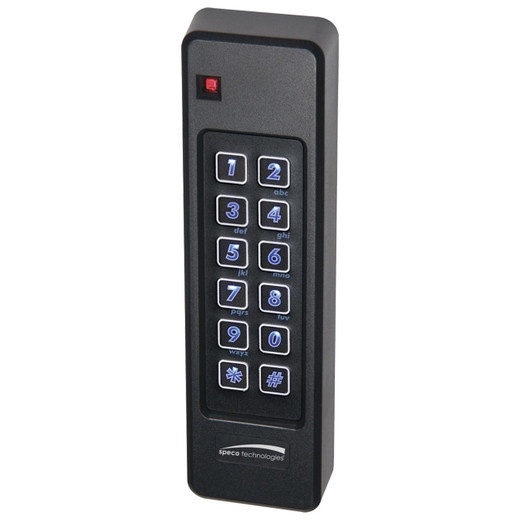

The Speco ACSR62L is a weatherproof mullion-mount access control reader combining contactless smartcard and Bluetooth Low Energy (BLE) credential authentication in a single IP67-rated device. Supporting read ranges up to 15 feet for mobile credentials and featuring integrated keypad entry, the ACSR62L addresses multi-credential access requirements in security-critical installations where weather exposure and tamper resistance are mandatory.
Key Features
- Dual-technology platform: contactless smartcard (13.56 MHz) and Bluetooth Low Energy (2.4 GHz) credential support
- Extended mobile credential read range: up to 15 feet (4.6 m) for BLE-enabled smartphones
- IP67 rating with weather- and tamper-resistant epoxy potting for indoor and outdoor deployment
- Wiegand 26-bit interface for integration with standard access control systems
- Low-power operation: 60 mA typical, 250 mA peak at 12 VDC with +8 to -14 VDC input tolerance
- Four-state LED indicator (red, green, amber, off) with integrated audio beeper
- Supports multiple credential standards: MIFARE Classic/DESFire/UltraLight/Plus, FIPS 201 PIV Type A, TWIC, CAC, and Conekt Mobile Access Credentials
- Lifetime warranty and NDAA Section 889 Part B compliant
Applications
- Perimeter access control at secure facilities requiring weather-resistant reader installation
- Multi-campus or distributed security environments supporting both physical smartcards and mobile credential authentication
- Government and federal facilities requiring FIPS 201 PIV and CAC credential interoperability
- Outdoor gate and checkpoint installations where tamper resistance and temperature extremes (–31°F to 150°F) are operational constraints
- Hybrid credential environments transitioning from card-based to mobile-first access strategies
Specifications
- Model: Mullion-Mount Mobile-Ready Contactless Smartcard Reader and Keypad
- Dimensions: 1.78" W × 6.1" H × 0.91" D (45 mm × 155 mm × 23 mm)
- Voltage: +8 to -14 VDC
- Current Draw: 60 mA typical, 250 mA peak @ 12 VDC
- Operating Temperature: –31°F to 150°F (–35°C to +66°C)
- IP Rating: IP67
- Interface: Wiegand 26-bit
- Physical Credential Read Range: Up to 2 inches (51 mm)
- Mobile Credential Read Range: Up to 15 feet (4.6 m)
- Frequency: 13.56 MHz (smartcard), 2.4 GHz (BLE)
- Cabling: 24 AWG minimum, multiconductor stranded with overall foil shield
- Certifications: FCC, ICC, CE, UL Standard 294
