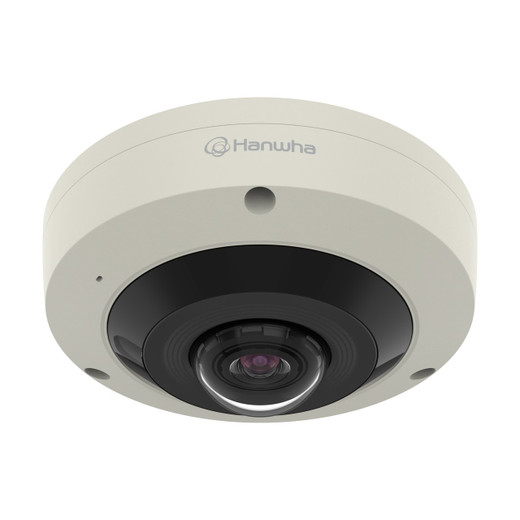

Hanwha XNF-8010RVM RB Panoramic Mobile Fisheye Camera

Hanwha XNF-8010RVM RB Overview

The Hanwha XNF-8010RVM RB is a panoramic fisheye network camera engineered for mobile and vehicle-mounted surveillance applications. Powered by Wisenet X and Wisenet 5 architecture, this unit delivers 6MP resolution (2048x2048) at 30 fps from a 1.6mm fixed lens providing 192-degree field of view. Certified for mobile deployment on vehicles and rail rolling stock under EN50155 and EN 50121-x standards, the XNF-8010RVM RB combines ruggedized construction with advanced analytics to meet the demands of fleet monitoring, transit security, and mobile enforcement.

Hanwha XNF-8010RVM RB Key Features

• 6MP Panoramic Fisheye Imaging: Captures 2048x2048 resolution at 30 fps, providing single-camera wide-area coverage with minimal blind spots ideal for vehicle and rail applications.
• Triple Codec Compression: Supports H.265, H.264, and MJPEG with WiseStream II adaptive bitrate technology to optimize bandwidth and storage utilization without sacrificing image quality.
• Advanced Night Vision: High-powered IR LEDs deliver 49-foot (15-meter) infrared range, enabling clear identification in total darkness or low-light mobile environments.
• 120dB Wide Dynamic Range: WDR processing handles extreme contrast scenarios common in vehicle-mounted deployments, such as bright sunlight and deep shadows simultaneously.
• Mobile-Optimized Durability: IP66 waterproof rating and IK10 impact resistance provide protection against road spray, vibration, and mechanical shock. Operating range of -40°C to +55°C ensures reliability across climate zones.
• Intelligent Video and Sound Analytics: Integrated video classification and sound detection enable automated event triggering and business analytics without requiring external processing.
• Advanced Image Enhancement: HLC (Highlight Compensation), defog detection, and Digital Image Stabilization (DIS) compensate for mobile motion, vehicle lighting, and weather conditions.
• Dual SD Card Storage: Onboard dual microSD card slots enable local backup and extended recording without continuous network connectivity.
• Flexible Power Options: Operates on 12VDC or PoE (802.3af), accommodating both hardwired vehicle power systems and network-powered installations.
• Mobile-Certified Connectivity: M12 connector for mobile applications ensures secure, vibration-resistant connections per vehicular and transit standards. (Note: RJ45 to M12 adapter not included.)
• Simple Focus Adjustment: Fixed 1.6mm lens with straightforward focus mechanism reduces on-site setup time for installers.
• USB Port Installation: USB connectivity simplifies firmware updates and configuration without requiring network access at deployment.

Hanwha XNF-8010RVM RB Integration and Deployment

The XNF-8010RVM RB is designed for seamless integration into mobile surveillance systems. As a Wisenet-powered device, it supports standard ONVIF protocols for compatibility with third-party VMS platforms common in fleet and transit environments. The combination of H.265 codec support and WiseStream II compression ensures efficient bandwidth utilization on cellular and limited-bandwidth mobile networks. M12 connector standardization (with external adapter support) enables deployment across diverse vehicle types—from police vehicles and transit buses to rail rolling stock—while maintaining the ruggedness required for continuous mobile operation.
