Frame Rate:
25fps
Sensor Type:

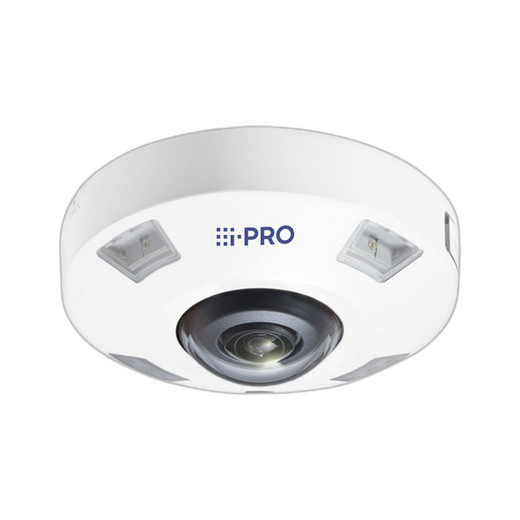

Approx. 1/2 type 12MP CMOS image sensor
Minimum Illumination:
Color : 0.3 lx BW : 0.04 lx (F1.9, Maximum shutter : Off (1/30 s), AGC : 11) BW : 0 lx (F1.9, Maximum shutter : Off (1/30 s), AGC : 11, when the IR LED is lit) Color : 0.02 lx BW : 0.003 lx (F1.9, Maximum shutter : max. 16/30s, AGC : 11)
Intelligent Auto:
On / Off
Maximum Shutter:
max. 16/30s to Max. 1/10000s
Wide Dynamic Range:
On / Off, The level can be set in the range of 0 to 31.
Dynamic Range:
Max.84 dB (Wide Dynamic Range : On, level : 31)
Image Settings:
Gain (AGC), White balance
Image Compensation:
Adaptive black stretch, Back light compensation (BLC), Fog compensation, High light compensation (HLC), Digital noise reduction
Color/BW (ICR:
Off / On (IR Light Off) / On (IR Light On) / Auto1 (IR Light Off) / Auto2 (IR Light On) / Auto3 (SCC)
IR LED Light:
High* / Middle / Low / Off *Maximum irradiation distance : 14 m{Approx. 45 ft}(30IRE), 10 m {Approx. 33 ft} (Mounting height : Approx. 3 m, Peripheral intensity control : On)
Video Motion Detection (VMD:
On / Off, 4 areas available
Scene Change Detection (SCD:
On / Off, 1 areas available
Audio Detection:
On / Off
AI Sound Classification:
Gunshot, Yell, Vehicle horn, Glass break
AI Analytics:
AI-VMD/AI People Counting for 360-degree fisheye camera, AI Privacy Guard for 360-degree fisheye camera, AI Scene Change Detection
Privacy Zone:
On / Off, Up to 8 zones available
Camera Title (OSD:
On / Off, Up to 20 characters (alphanumeric characters, marks)
Fixing angle adjustment:
-5°, 0°, +5°
Zoom Ratio:
1x
Digital (Electronic) Zoom:
Choose from 3 levels of x1, x2, x4
Focal Length:
1.4 mm {1/16 inches}
Maximum Aperture Ratio:
1:1.9
Focus Range:
0.5 m {19-11/16 inches} - ∞
Angular Field of View:
Horizontal : 183° Vertical : 183°
Distance to the object in the center of the image:
Detect (25 ppm / 8 ppf) : 29.9 m / 98.2 ft Observe (62.5 ppm / 19 ppf) : 12.0 m / 39.3 ft Recognize (125 ppm / 38 ppf): 6.0 m / 19.6 ft Identify (250 ppm / 76 ppf) : 3.0 m / 9.8 ft
System on Chip (SoC:
Ambarella CV22
Camera Control:
Brightness, AUX On / Off
Audio Support:
Mic (Line) Input : On / Off Volume adjustment : Low / Middle / High Audio Output : On / Off Volume adjustment : Low / Middle / High
GUI / Setup Menu Language:
English, Italian, French, German, Spanish, Portuguese, Russian, Chinese, Japanese
Network IF:
10Base-T / 100Base-TX, RJ45 connector
H.265/H.264:
Transmission Mode : Constant bit rate / VBR / Frame rate / Best effort Transmission Type : Unicast port (AUTO)/ Unicast port (MANUAL)/ Multicast
JPEG:
Image Quality :10 steps
Smart Coding:
GOP (Group of pictures) control : On (Frame rate control)* / On (Advanced)* / On (Mid) / On (Low) / Off *On (Frame rate control) and On (Advanced) are only available with H.265. Auto VIQS : On / Off
Audio Compression:
G.726 (ADPCM) : 16 kbps / 32 kbps ,G.711 : 64 kbps, AAC-LC : 64 kbps / 96 kbps / 128 kbps
Max. concurrent access number:
Up to 14 users (Depends on network conditions)
Mobile Terminal Compatibility:
iPad / iPhone, AndroidTM terminals
ONVIF Profile:
G / M / S / T
Alarm Source:
3 terminals input, VMD, Command alarm
Alarm Actions:
SDXC/SDHC/SD memory recording, E-mail notification, HTTP alarm notification, Indication on browser, TCP alarm notification output
Monitor output (for adjustment:
VBS : 1.0 V [p-p] / 75 Ω, composite, ø3.5 mm mini jack An NTSC or PAL signal can be outputted from camera
Audio Output:
ø3.5 mm stereo mini jack (monaural output) Output impedance : Approx. 600 Ω (unbalanced) Output level : –20 dBV
External I/O Terminals:
ALARM IN1 (Alarm input 1/ Black & white input/ Auto time adjustment input) (x1) ALARM IN2 (Alarm input 2/ ALARM OUT) (x1) ALARM IN3 (Alarm input 3/ AUX OUT) (x1)
Safety:
UL (UL62368-1), c-UL (CSA C22.2 No.62368-1), CE, IEC62368-1
EMC:
FCC (Part15 ClassA), ICES003 ClassA, EN55032 ClassB, EN55035, ECE-R10, EN50498 compliant, EN50121
Power Source and Power Consumption:
DC power supply : DC 12 V 1.1 A/Approx. 13.2 W PoE (IEEE802.3af compliant) Device : DC 48 V 270 mA/Approx. 12.95 W (Class 0 device)
Ambient Operating Temperature:
IR LED : On -40 °C to +50 °C (-40 °F to 122 °F) Off -40 °C to +60 °C (-40 °F to 140 °F)
Ambient Operating Humidity:
10 to 100 % (no condensation)
Anti-Condensation System:
Rosahl element
Water and Dust Resistance:
IP66(IEC60529), Type 4X(UL50), NEMA 4X compliant
Shock Resistance:
50J (IEC 60068-2-75 compliant), IK10 (IEC 62262)
Wind Resistance:
Up to 40 m/s {approx. 89 mph}
Railway Application:
EN50155-TX
Mass (Approx:
When using the attachment plate only : Approx. 880 g {1.94 lbs}, When using the base bracket : Approx. 1.3 kg {2.87 lbs}
Finish:
Main body : Aluminum die cast, i-PRO white / Outer fixing screws : Stainless steel (Corrosion-resistant treatment) / Dome section : Polycarbonate resin, Clear
Product Type:
Dome
Connectivity:
Wired
Night Vision:
IR
Power Type:
PoE
PoE Class:
0
Form Factor:
Dome
IP Rating:
IP66, NEMA 4X
Vandal Rating:
IK10
Compatibility:
ONVIF
Resolution:
12MP
Video Compression:
H.265, H.264
IR Distance:
14m
Built-in IR:
Yes
Day/Night:
Yes
Analytics:
People Counting
Storage Support:
microSD
Outdoor Ready:
Yes
Signed Firmware:
Yes
HTTPS Encryption:
Yes
Operating System:
Android
