Features:
AI
Frame Rate:
Variable
Sensor Type:
Approx.1/2.8 type CMOS image sensor
Scanning Area:
5.57 mm (H) × 3.13 mm (V); {7/32 inches (H) × 1/8 inches (V)}
Minimum Illumination:
Color : 0.02 lx (30IRE, F2.1, 1/30 s), Color : 0.03 lx (50IRE, F2.1, 1/30 s); BW : 0.02 lx (50IRE, F2.1, 1/30 s), BW : 0 lx (50IRE, F2.1, 1/30 s with IR LED)
White Balance:
ATW1/ ATW2/ AWC
Maximum shutter:
60 fps/30 fps/15 fps mode: Max.1/10000s to Max.16/30s; 50 fps/25 fps/12.5 fps mode: Max.1/10000s to Max.16/25s
Intelligent Auto:
On / Off
Super Dynamic:
On / Off,; The level can be set in the range of 0 to 31. *1
Dynamic Range:
144 dB max.; (Super Dynamic: On, Level: 31)
Adaptive Black Stretch:
The level can be set in the range of 0 to 255.
Back Light Compensation/ High Light Compensation:
BLC/ HLC/ Off, The level can be set in the range of 0 to 31.; (only when Super Dynamic/ Intelligent Auto: Off)
Fog Compensation:
On/ Off,; The level can be set in the range of 0 to 8.; (only when Intelligent Auto/ Auto contrast adjust: Off)
Maximum Gain (AGC:
The level can be set in the range of 0 to 11.
Color/BW (ICR:
Off/ On(IR Light Off)/ On(IR Light On)/ Auto1(IR Light Off)/ Auto2(IR Light On)/ Auto3(SCC)
IR LED Light:
High/ Middle/ Low/ Off; Maximum irradiation distance : 21 m {Approx. 69 ft} (30IRE)*, 15 m {Approx. 49 ft} (50IRE); * Converted value
Digital Noise Reduction:
The level can be set in the range of 0 to 255.
Video Motion Detection (VMD:
On/ Off,; 4 areas available
Scene Change Detection (SCD:
On/ Off,; 1 area available
Audio Detection:
On/ Off
AI Sound Classification:
Selectable from Gunshot, Yell, Vehicle horn, Glass break
AI Analytics:
AI Video Motion Detection, AI Privacy Guard, AI Face Detection, AI People Detection, AI Vehicle Detection, AI Non mask Detection, AI Occupancy Detection, AI Scene Change Detection; ; For details :; https://i-pro.com/products_and_solutions/en/surveill
Privacy Zone:
On/ Off,; up to 8 zones available
VIQS:
On/ Off,; up to 8 zones available
Image Rotation:
0° (Off)/ 90°/ 180° (Upside-down)/ 270°
Camera Title (OSD:
On/ Off, Up to 40 characters, Up to 2 Lines; (alphanumeric characters, marks)
Optical Zoom:
1x
Extra zoom:
max 3.0 x; (when resolution is 640x360)
Digital (Electronic) zoom:
-
Focal Length:
2.4mm {3/32inches}
Angular Field of View:
[16:9 mode]; Horizontal: 132°, Vertical: 74°; [4:3 mode]; Horizontal： 99°, Vertical： 74°
Maximum Aperture Ratio:
1 : 2.1
Focus range:
0.5 m {19-11/16 inches} –∞
Aperture range:
F2.1
Detect (25ppm / 8ppf:
17.1m / 56.1ft
Observe (62.5ppm / 19ppf:
6.8m / 22.4ft
Recognize (125ppm / 38ppf:
3.4m / 11.2ft
Identify (250ppm / 76ppf:
1.7m / 5.6ft
System on Chip (SoC:
Ambarella CV25M
Adjusting Angle:
Horizontal (PAN) angle: -45°to +45°, Vertical (TILT) angle: 0°to +90°; Azimuth (YAW) angle: -90°to +90°
GUI / Setup Menu Language:
English, Italian, French, German, Spanish, Portuguese, Russian, Chinese, Japanese
Browser *2:
Microsoft Edge, Firefox, Google Chrome
Network IF:
10BASE-T/100BASE-TX, RJ45 connector
Resolution:
[16:9 mode(60 fps mode/ 30 fps mode/ 50 fps mode/ 25 fps mode)]; 1920x1080/ 1280x720/ 640x360/ 320x180; [4:3 mode(30 fps mode/ 25 fps mode)] 1280x960/ VGA/ QVGA; [4:3 mode(15 fps mode/ 12.5 fps mode)] 2048x1536* / 1280x960/ VGA/ QVGA; *Used by super
H.265/H.264 Transmission Mode / Type *3:
[Transmission Mode] Constant bit rate / VBR / Frame rate / Best effort; [Transmission Type] Unicast port (AUTO) / Unicast port (MANUAL) / Multicast
JPEG:
[Image Quality] 10 steps
Smart Coding:
[GOP(Group of pictures) control]; Off/ Low (Variable GOP 1s-8s)/ Mid (Variable GOP 4s-16s)/ Advanced (Fixed GOP 60 seconds with 1 second Key frame)/ Frame rate control (Variable GOP 4s-16s with frame rate control); *Advanced and Frame rate control ar
Audio Compression:
G.726 (ADPCM): 32 kbps/16 kbps, G.711: 64 kbps, AAC-LC: 64kbps/96kbps/128kbps *4
Supported Protocol:
IPv6: TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP, SNMPv1/v2/v3, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ, LLDP, FTP, SFTP, MQTT; IPv4: TCP/IP, UDP/ IP, HTTP, HTTPS, SSL/TLS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, SNMPv1/
No. of Simultaneous Users:
Up to 14 users; (Depends on network conditions)
Secure:
FIPS 140-2 level 3 (NXPR EdgeLock® SE050F), Device Certificate GlobalSign® pre-installed, HTTPS, User authentication, Digest authentication, Host authentication, IEEE802.1X, System log, Image transmission log, Brute-force protection, Alteration detec
SDXC/SDHC/SD Memory Card (Option:
microSDXC memory card: 64 GB,128 GB,256 GB,512 GB; microSDHC memory card: 4 GB,8 GB,16 GB,32 GB, microSD memory card: 2 GB
Mobile Terminal Compatibility:
iPad / iPhone (iOS 8.0 or later), AndroidTM mobile terminals
ONVIF®Profile:
G / M / S / T
Alarm Actions:
SDXC/SDHC/SD memory recording, E-mail notification, HTTP alarm notification Indication on browser, TCP alarm notification output
Safety:
UL (UL62368-1), c-UL (CSA C22.2 No.62368-1), CE, IEC62368-1
EMC:
FCC (Part15 ClassA), ICES-003 ClassA, EN55032 ClassA, EN55035
Power Type:
PoE
Power (Max:
PoE DC 48V: 180mA / approx. 8.6W (Class 0 device)
Ambient Operating Temperature:
-40 °C to +50 °C {-22 °F to 122 °F}; (Power On range: -20 °C to +50 °C {-4 °F to 122 °F})
Ambient Operating Humidity:
10 % to 100 % (no condensation)
Water and Dust Resistance:
IP66 (IEC 60529), Type 4X (UL50E), NEMA 4X compliant
Shock Resistance:
IK10 (IEC 62262)
Wind Resistance:
Up to 40 m/s {approx. 89 mph}
Dimensions:
109 mm (W) x 53 mm (H) x119 mm (D); {4-19/64inches (W) x 2-3/32 inches (H) x 4-11/16 inches (D)}
Mass (approx:
approx. 475g {1.05 lbs}
Finish:
Main body: Aluminum die cast, i-PRO white; Front panel: PC resin, Clear
Other:
Tamper-resistant enclosure *5

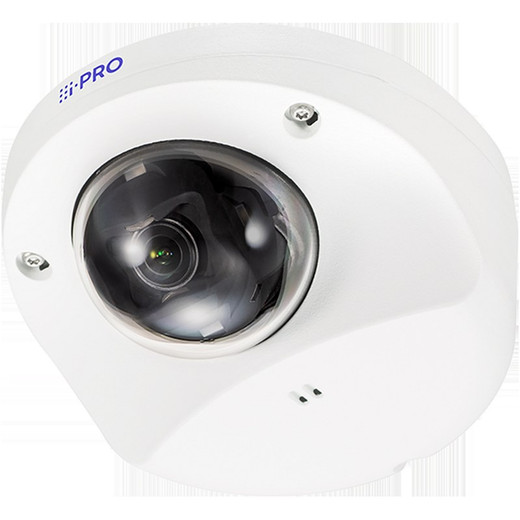

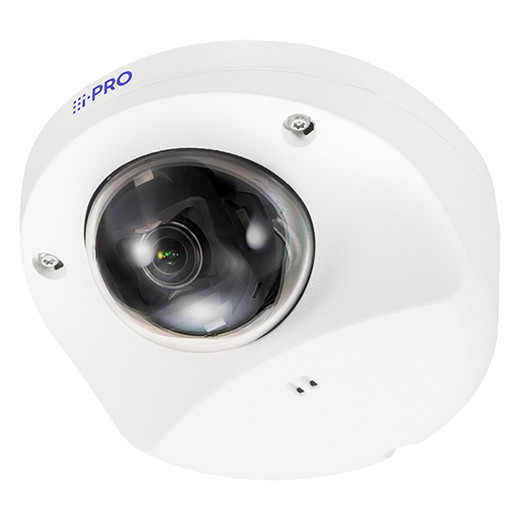

Product Type:
Dome
Connectivity:
Wired
IP Rating:
IP66
Night Vision:
IR
PoE Class:
0
Form Factor:
Dome
Vandal Rating:
IK10
Compatibility:
ONVIF
Video Compression:
H.265, H.264
Audio Support:
Yes
IR Distance:
21m
Built-in IR:
Yes
Day/Night:
Yes
Analytics:
Facial Recognition
Storage Support:
microSD
Outdoor Ready:
Yes
Signed Firmware:
Yes
HTTPS Encryption:
Yes
Operating System:
Android
WDR:
WDR
