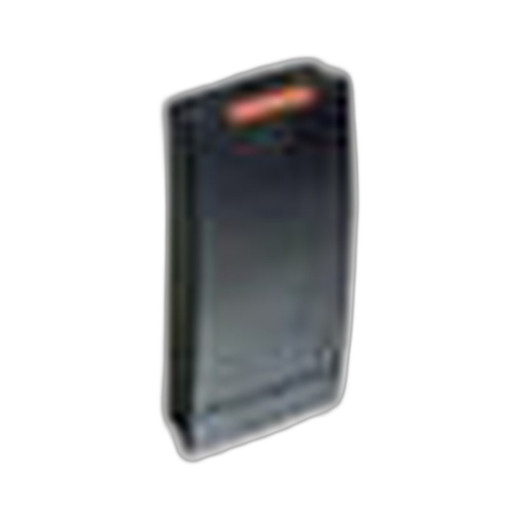

HID 925PTNTEK00425 RMPK40 Multiclass SE Magstripe Reader

HID 925PTNTEK00425 RMPK40 Multiclass Smart Card Reader

Overview

The HID 925PTNTEK00425 is an advanced multiclass credential reader designed for enterprise access control environments. Built on the RMPK40 platform, this reader integrates multiple credential technologies into a single intelligent device, eliminating the need for separate readers at each access point. The 925PTNTEK00425 configuration supports low-frequency standard (LF STD), high-frequency standard (HF STD), and dual-interface operation, making it suitable for mixed-credential deployments across security integrations serving diverse organizational requirements.

Key Features

• Multiclass Credential Support: Simultaneous read capability for EM (low-frequency), HF (high-frequency), magnetic stripe, and Wiegand protocol credentials in a single reader footprint
• Terminal Interface Configuration: Factory-configured terminal output with support for standard Wiegand transmission and SIO/SEOS/MAG protocol variants for seamless integration with legacy and modern access control systems
• Visual and Audible Status Indicators: Red LED paired with green flashing indicator and active buzzer notification (buzzer enabled) for immediate user and operator feedback on read success and system status
• 32-Bit CSN (Card Serial Number): MSB-formatted 32-bit card number output enabling compatibility with extended credential databases and enterprise access control platforms
• 4-Bit Message Framing: Efficient message protocol supporting legacy system integration while maintaining modern data integrity standards
• Optional Tamper Detection: Built-in tamper sensor (included in this configuration) for physical security monitoring and alarm reporting on reader enclosure breach attempts
• Open Collector Output: Direct relay-compatible signaling reducing intermediate conversion hardware requirements in integration scenarios
• Black Finish Standard Enclosure: Durable standard-profile housing suitable for indoor access points, meeting typical enterprise installation requirements
• Single-Key Backup Function: One-key facility override capability for emergency access scenarios, with no parity bit configuration for streamlined credential matching
• AMAG Penn State Configuration: Pre-configured magnetic option (MAG OPT 5) supporting specialized magnetic credential formats used in educational and institutional deployments
• IPM Off / KPF Mode: Reader configured without intelligent parity management, supporting environments where credential parity is managed externally or bypassed for legacy system compatibility
• Buffered Forward Communication: Single-frame buffering (BFFRD 1 KEY) reducing data collisions during rapid multi-credential scan scenarios typical in high-traffic access points

Integration and Compatibility

The HID 925PTNTEK00425 reader integrates across Wiegand 26/34-bit and SIO protocols, supporting both legacy access control panels and modern networked credential verification systems. The terminal configuration enables direct connection to standard door control interfaces. This reader is compatible with mixed-credential environments including proximity cards, magnetic-stripe badges, and dual-interface smartcards. The 32-bit MSB-formatted output ensures compatibility with enterprise card database formatting standards used across institutional access control platforms.

Eden Phillips

I've evaluated the HID 925PTNTEK00425 during access control system refresh projects, particularly for organizations transitioning from single-credential environments to multiclass deployments. This reader's simultaneous EM/HF/magnetic capability eliminates the complexity of managing separate reader networks, which is a significant operational cost reduction in large-scale installations.

Technical Highlights:

• Multiclass Read Engine: Native support for EM, HF standard, magnetic stripe, and Wiegand credentials allows single-point integration rather than parallel reader topology, reducing wiring complexity and panel I/O requirements
• Output Format Flexibility: 32-bit MSB CSN with 4-bit message framing and configurable SIO/SEOS/MAG protocols provides direct compatibility with enterprise credential databases without translation layers, critical for environments with strict data format specifications
• Tamper Monitoring: Integrated tamper sensor (enabled in this config) provides physical security feedback to central systems, essential for high-security facility compliance and intrusion detection workflows
• Open Collector Signaling: Direct relay-compatible output architecture reduces intermediate relay boards in panel-based systems, simplifying troubleshooting during commissioning and ongoing maintenance

Deployment Considerations:

• Terminal configuration (TERM) requires direct connection planning to access control panel inputs; verify panel compatibility with Wiegand and SIO protocol support before installation
• The 4-bit message protocol and legacy parity configuration (IPM OFF, KPF mode) indicates this reader is optimized for institutional or educational environments with established credential formats—confirm existing card database structure aligns with 32-bit MSB output before full deployment
• Buzzer-enabled configuration (BZR ON) provides operator feedback in attended access points; verify alarm fatigue risk in high-traffic areas and consider buzzer disable capability if deployment environment warrants silent operation
• AMAG Penn State magnetic option (MAG OPT 5) is specialized for specific institutional credential formats; ensure your badge stock matches this configuration or plan migration strategy if credential changes are anticipated

The 925PTNTEK00425 is a solid fit for large enterprise consolidations, education/institutional facilities managing legacy magnetic credentials, and mixed-credential environments where eliminating separate reader hardware delivers operational simplification. Its terminal configuration and multiclass engine reduce integration surface area, which translates directly to lower deployment costs and faster commissioning cycles.
