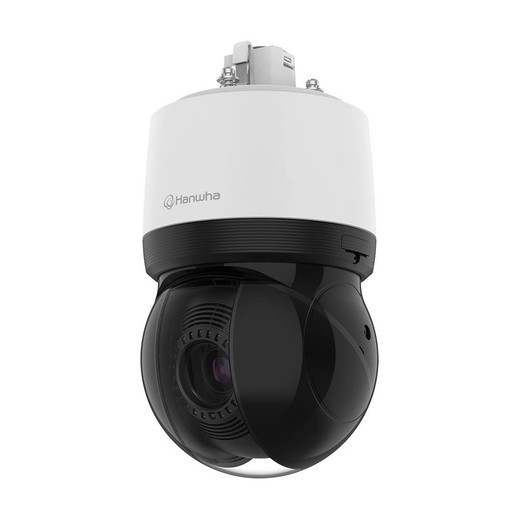

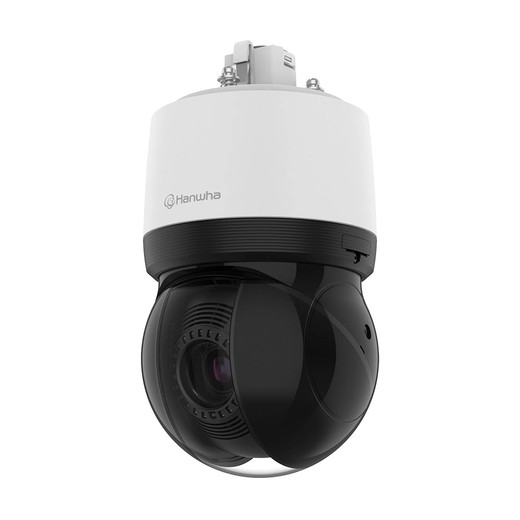

Hanwha XNP-C9253 (8MP) Intelligent Auto-Tracking WDR Outdoor PTZ IP Camera
Hanwha XNP-C9253 (8MP) Intelligent Auto-Tracking WDR Outdoor PTZ IP Camera
Hanwha XNP-C9253 8MP Intelligent Auto-Tracking WDR Outdoor PTZ IP Camera

Overview

SKU: XNP-C9253
UPC: 8801089224972
Condition: New
Availability: Usually ships in 24 hours
Warranty 3-year warranty
Write a Review 40% OFF

Hanwha XNP-C9253 8MP Intelligent Auto-Tracking WDR Outdoor PTZ IP Camera

Hanwha XNP-C9253 8MP Outdoor AI Auto-Tracking PTZ Camera The Hanwha XNP-C9253 is a professional-grade 8MP outdoor PTZ camera engineered for demanding…

Add to cart for sale price
$4,500.00
$2,699.99
Ships same business day
In stock

Quantity:

Adding to cart… The item has been added
Compatibility guidance available for your deployment
Certified experts for pre and post-sales support
Authorized sourcing and documentation support
Shipping and lead-time confirmation before install
Bryan

Talk to Bryan

200+ hrs training • U.S - based

Certified Expert • 877-277-7147

Live Chat Call

Hanwha XNP-C9253 8MP Intelligent Auto-Tracking WDR Outdoor PTZ IP Camera

$4,500.00
$2,699.99
Add to Cart

Your recommended setup

Review items below — quantities update pricing automatically.

Item Qty Status Price
Optional Add-Ons recommended
Services optional

Bundle Summary

Bundle Subtotal: $0.00
Optional Add-Ons: $0.00
Services: $0.00
Total: $0.00

Overview

SKU: XNP-C9253
UPC: 8801089224972
Condition: New
Availability: Usually ships in 24 hours
Warranty 3-year warranty
Description

Hanwha XNP-C9253 8MP Outdoor AI Auto-Tracking PTZ Camera

The Hanwha XNP-C9253 is a professional-grade 8MP outdoor PTZ camera engineered for demanding surveillance applications. Combining high-resolution imaging, intelligent AI-powered auto-tracking, and robust environmental protection, this camera delivers comprehensive coverage and actionable intelligence for enterprise security operations. Built on the Wisenet platform with a 25x optical zoom and 360° pan capability, the XNP-C9253 excels in large-area monitoring where subject identification and continuous tracking are critical.

Key Features

  • 8MP (3840×2160) resolution at up to 60fps for exceptional image clarity
  • 25x optical zoom (5–125mm focal length) with 32x digital zoom for detailed identification
  • AI-powered auto-tracking for persons and vehicles with target lock functionality
  • 360° endless pan with 110° tilt range and ±0.1° preset accuracy
  • Extreme WDR (120dB) and intelligent backlight compensation for challenging lighting
  • Ultra-low illumination: 0.1 Lux color / 0.01 Lux B&W (F1.6, 1/30sec)
  • Advanced analytics: object detection, virtual line crossing, area entrance/exit, license plate recognition
  • PoE+ powered (IEEE 802.3at, Class 4) with minimal power draw (typical 24W)

Technical Highlights

The XNP-C9253 captures at 8MP with support for H.265, H.264, and MJPEG compression, enabling efficient bandwidth utilization through Hanwha's WiseStream III codec technology. Its 1/2.8" CMOS sensor delivers exceptional low-light performance, critical for 24/7 outdoor operations. The camera supports up to 20 concurrent unicast streams and 128 multicast users, making it suitable for large-scale deployments with multiple monitoring stations.

Environmental durability is paramount: the camera achieves IP66 rating, IK10 vandal resistance, and NEMA 4X certification. Integrated lens heater and spin-dry technology ensure clear optics in rain, snow, and frost conditions. Operating temperature range of -40°C to +55°C (-40°F to +131°F) supports extreme climates.

Security features include TPM with FIPS 140-2 Level 2, secure boot, signed firmware, and HTTPS/SRTP encryption. Support for ONVIF Profile S/G/T/M, along with Hanwha's proprietary SUNAPI and Wisenet open platform, enables seamless integration with third-party VMS and NVR systems.

Storage & Connectivity

Dual microSD/SDHC/SDXC card slots support up to 1TB edge storage (512GB×2) for local event recording. The camera features 4GB RAM and 512MB flash, with 16 multilingual UI options. Alarm triggers activate file uploads, notifications, and scheduled recordings to SD or NAS storage.

Applications

Ideal for perimeter monitoring, parking areas, traffic enforcement, critical infrastructure, campus security, and large outdoor venues where pan-tilt-zoom flexibility and intelligent tracking reduce operational burden and enhance threat detection.

Eden Phillips
Eden Phillips

The XNP-C9253 represents Hanwha's commitment to AI-native surveillance. Its Wisenet 7 chipset executes real-time object classification and tracking at the edge, reducing false alarms and alert fatigue common in legacy PTZ systems. The 120dB WDR handles high-contrast scenes (e.g., backlit entrances, vehicle headlights) without image degradation.

Pan/tilt acceleration reaching 700°/500° per second enables rapid target acquisition—critical in active threat scenarios. The dual codec support (H.265 for bandwidth-constrained networks, H.264 for legacy systems) and 10 concurrent streaming profiles provide deployment flexibility. For integrators, ONVIF compliance and REST API support simplify VMS migration and custom automation.

The IP66/IK10 ratings and integrated environmental controls position this camera for unattended outdoor installations where maintenance access is limited.

Product Documentation

📄 Download Product Datasheet (PDF)

Expert Analysis
Specifications
Features: AI Auto Tracking
Frame Rate: 60fps
Imaging Device: 1/2.8" CMOS
Resolution: 3840x2160, 2592x1944, 2592x1464, 1920x1080, 1600x1200, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
Max. Framerate: H.265/H.264: Max. 30fps/25fps(60Hz/50Hz); MJPEG: Max. 30fps/25fps(60Hz/50Hz) (@8MP Max. 5fps)
Min. Illumination: Color: 0.1Lux(F1.6, 1/30sec); BW: 0.01Lux(F1.6, 1/30sec)
Focal Length (Zoom Ratio: 5~125mm(25x) zoom (digital 32x, total 800x zoom)
Max. Aperture Ratio: F1.6(Wide)~F3.73(Tele)
Angular Field of View: H: 57.42°(Wide)~2.71°(Tele) / V: 33.54°(Wide)~1.55°(Tele)
Min. Object Distance: 5m(16.4ft)
Focus Control: Oneshot AF, Focus save
Lens Type: DC auto iris
Pan Range: 360° Endless
Pan Speed: Max. 700°/sec, Manual: 0.024°/sec~250°/sec
Tilt Range: 110°(90°~-20°)
Tilt Speed: Max. 500°/sec, Manual: 0.024°/sec~250°/sec
Sequence: Preset(300ea), Swing, Group(6ea), Trace, Tour, Auto Run, Schedule
Preset Accuracy: Up to ±0.1°, Pan/Tilt correction
Camera Title: Displayed up to 85 characters
Direction Indicator: Support
Day & Night: Auto(ICR)
Backlight Compensation: BLC, HLC, WDR, SSDR
Wide Dynamic Range: Extreme WDR(120dB)
Digital Noise Reduction: WiseNRⅡ(Based on AI engine), SSNRⅤ
Digital Image Stabilization: Support(built-in gyro sensor)
Defog: Support
Motion Detection: 8ea, 8point polygonal zones
Privacy Masking: 32ea, Quadrangle Support; - Color: Grey/Green/Red/Blue/Black/White; - Mosaic
Gain Control: Off / Max gain / Manual
White Balance: ATW / NarrowATW / AWC / Manual / Indoor / Outdoor / Mercury / Sodium
Electronic Shutter Speed: Minimum / Maximum / Anti flicker (2~1/12,000sec); Prefer shutter control(Based on AI engine)
Video Rotation: Flip&Mirror
Analytics: Classified object type : Person/Face/Vehicle/License plate; Attributes : Vehicle(Type:car/bus/truck/motorcycle/bicycle); Support DetectionShot; Analytics events based on AI engine; - Object detection, Virtual line(Crossing/Direction), Virtual area(Lo
Alarm Triggers: Analytics, Network disconnect, Alarm input((Via optional I/O box SPM-4210), Time schedule, MQTT subscription
Alarm Events: When alarm trigger occurred; - File upload(image) : e-mail/FTP; - Notification : e-mail; - Recording : SD/SDHC/SDXC or NAS recording at event triggers; - Handover: PTZ preset, send message by HTTP/HTTPS/TCP; - MQTT: publication; * Alarm output / Audi
Water Removal: Support(Spin dry, Lens heater)
Auto Tracking: Support; Object auto tracking(Person/Vehicle); Target lock tracking
Ethernet: Metal shielded RJ-45(10/100BASE-T)
Video Compression: H.265/H.264: Main/Baseline/High, MJPEG
Smart Codec: Manual(5ea area), WiseStreamⅡ, WiseStreamⅢ(Based on AI Engine)
Bitrate Control: H.264/H.265: CBR or VBR; MJPEG: VBR
Streaming: Unicast(20 users) / Multicast (128 user); Multiple streaming(Up to 10 profiles)
Protocol: IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), NTCIP1205, MQTT
Application Programming Interface: ONVIF Profile S/G/T/M; SUNAPI(HTTP API); Wisenet open platform
OS / Firmware Protect: Secure boot, Signed firmware, Firmware encryption
User authentication: Digest Authentication, Prevent brute-force attack
Network authentication: 802.1X Authentication(EAP-TLS, EAP-LEAP, EAP-PEAP MSCHAPv2)
Secure Communication: HTTPS, SRTP, WSS(Web socket secure)
Access Control: Access control based on IP address
Data Protect: Authentication information encryption, ZIP compression encryption
Audit: User Access/System/Event log management
Device ID: Device Certificate(Hanwha Private Root CA)
Secure Storage: TPM(Trusted platform module), HTPM(Hanwha trusted platform module), SDcard partition encrypt
Security Certificate: TPM with FIPS 140-2 level 2
Webpage Language: English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
Edge Storage: Micro SD/SDHC/SDXC 2slot 1TB (512GBx2)
RAM: 4GB RAM, 512MB Flash
Operating Temperature / Humidity: -40°C~+55°C(-40°F ~ +131°F) /; +74°C(+165°F) (MAX) based on NEMA-TS 2(2.2.7); * Start up should be done at above -30°C; 0~100%RH(Condensing) Humidity control /w AIR sheet
Storage Temperature / Humidity: -50°C ~ +60°C(-58°F ~ +140°F) / 0~90% RH
Certification: IP66, IK10, NEMA4X, NEMA-TS 2(2.2.7, 2.2.8, 2.2.9)
Input Voltage: PoE+(IEEE802.3at, Class4)
Power (Max: Typical 24W, Max 25.5W
Color / Material: Body : White / Aluminum; Head : Black / Polycarbontate; Hard-coated dome
RAL Code: White: RAL9003 / Black: RAL9005
Product Dimensions / Weight: ø158x293.3mm(6.22x11.55") / 3200g(7.05lb)
Hanging Mount (Dome: SBP-156HMW
Ceiling Mount (Assy: SBP-156CMW, SBP-300CMTS, SBP-300CMW1/900CMW, SBP-150CMI/300CMI

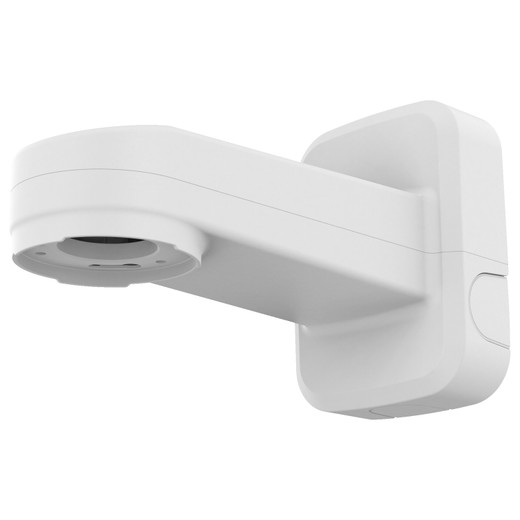

Wall Mount: SBP-156WMW, SBP-390WMW2
Pole Mount: SBP-300PMW2
In-ceiling Mount: SHP-1563FPW, SHP-1563FW
Parapet Mount: SBP-156LMW, SBP-156LMW1, SBP-300LMW
Corner Mount: SBP-156KMW, SBP-300KMW1
Cabinet: SBP-300NBW
Other Compatible Models: SPB-PTZ85W
EMC: FCC 47 CFR 15 Subpart B Class A; ICES-3(A)/NMB-3(A); CE/UKCA; - EN 55032 Class A, EN 50130-4; VCCI CISPR 32 Class A; RCM AS/NZS CISPR 32 Class A; KS C 9832 Class A, KS C 9835
Safety: UL 62368-1, CAN/CSA C22.2 NO. 62368-1; IEC 62471
Environment Rating: EN IEC 63000; IEC 60529 IP66, IEC 62262 IK10; NEMA TS 2-2013 (2.2.7, 2.2.8, 2.2.9); NEMA 250 type 4X
Detect (25PPM/ 8PPF: Wide: 140.2m(460.0ft) / Tele: 3246.9m(10652.4ft)
Observe (63PPM/ 19PPF: Wide: 56.1m(184.0ft) / Tele: 1298.7m(4261.0ft)
Recognize (125PPM/ 38PPF: Wide: 28.0m(92.0ft) / Tele: 649.4m(2130.5ft)
Identify (250PPM/ 76PPF: Wide: 14.0m(46.0ft) / Tele: 324.7m(1065.2ft)
Product Type: Dome
Connectivity: Wired
IP Rating: IP66
Night Vision: IR
Power Type: PoE+
PoE Class: 4
Form Factor: Dome
Vandal Rating: IK10
Compatibility: ONVIF
IR Distance: 5m
Built-in IR: Yes
Day/Night: Yes
Storage Support: microSD
Outdoor Ready: Yes
HTTPS Encryption: Yes
WDR: WDR
