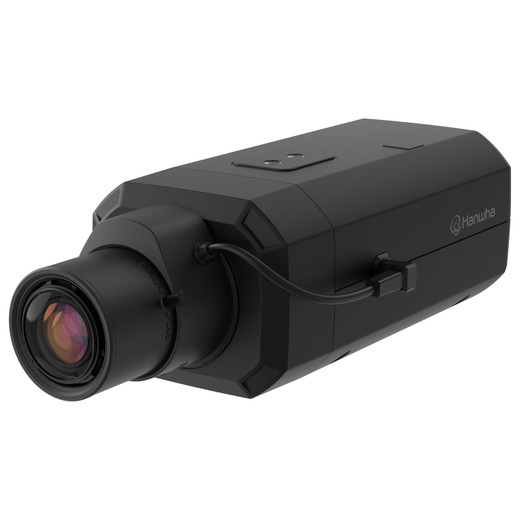

Hanwha XNB-6003 2MP AI Indoor Box Camera

Hanwha XNB-6003 2MP AI Indoor Box Camera

The Hanwha XNB-6003 is a compact 2MP box camera engineered for intelligent indoor surveillance with integrated AI analytics. Built around a 1/2.8" progressive CMOS sensor, this camera delivers full HD 1920x1080 resolution at up to 120 fps, ensuring sharp, fluid video capture even during rapid motion. The combination of advanced imaging technology and onboard AI processing makes it suitable for deployments requiring object detection, classification, and real-time business intelligence.

Key Features

• AI-Powered Analytics: Native object detection and classification for persons, faces, vehicles, and license plates with configurable DetectionShot events
• Extreme WDR (150dB): Handles high-contrast scenes with automatic exposure balancing across the entire frame
• Ultra-Low Light Performance: Color illumination at 0.007 Lux; B/W at 0.0007 Lux for minimal-light environments
• High Frame Rate: 120 fps H.265/H.264, 60 fps with WDR enabled; 30 fps MJPEG for flexible streaming profiles
• Advanced Noise Reduction: WiseNR II (AI-based) and SSNR V for cleaner footage in low-light scenarios
• Digital Stabilization: Built-in gyro sensor compensates for minor camera vibration
• Motion Detection & Privacy: 8 polygonal motion zones; 32 privacy masking areas with multiple color and mosaic options
• Business Intelligence: People counting, queue management, and heatmap generation based on AI analysis
• Flexible Lens Control: DC auto iris, P-iris, manual, and I-CS mount compatibility (C and CS mounts supported)
• Edge Storage: Two microSD/SDHC/SDXC slots supporting up to 1TB (512GB × 2) for local backup

Technical Highlights

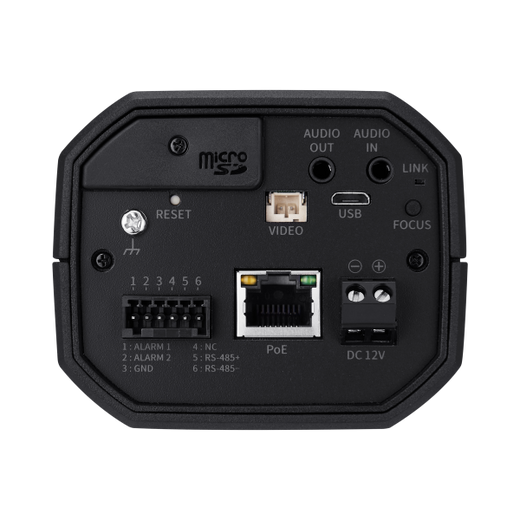

PoE powered (IEEE 802.3af Class 3, max 12.95W) with optional 12VDC supply, the XNB-6003 operates across -10°C to +55°C. Dual Gigabit Ethernet connectivity supports ONVIF Profile S/G/T/M, SUNAPI, and Wisenet open platform integration. Smart codec options including WiseStream II and III reduce bandwidth by up to 50% without sacrificing detail in zones of interest. The camera features RS-485 serial control, 2 configurable I/O ports, dual audio channels (mic/line in; line out), and comprehensive alarm integration triggered by analytics events, network disconnects, or time schedules. Security is reinforced with TPM 2.0 (FIPS 140-2 Level 2), HTTPS/SSL encryption, 802.1X authentication, and IP filtering.

Applications

Ideal for retail analytics, office building entry monitoring, warehouse perimeter surveillance, traffic management, and public space monitoring where AI-driven insights add value beyond traditional recording. The compact box form factor (81 × 67 × 165 mm; 880g) fits discreetly in ceiling or wall-mounted installations, while the C/CS mount flexibility accommodates diverse optical requirements.

James Everett

The XNB-6003 bridges the gap between entry-level 2MP surveillance and enterprise-grade intelligent video systems. Its 120 fps capability and extreme WDR excel in fast-paced environments and mixed lighting, while the onboard AI engine eliminates the need for external VMS-based analytics licensing for common use cases like object detection and people counting. The dual microSD slots and WiseStream codec optimization make it cost-effective for edge storage scenarios.

However, users should note that the 2MP resolution, while adequate for identification at close range, may require multiple cameras for wide-area coverage. The camera's reliance on PoE and preference for stable mounting means mobile or outdoor weather-exposed applications would benefit from supplementary housing and power conditioning. Integration with Hanwha's Wisenet ecosystem ensures long-term compatibility and firmware support.

Product Documentation

📄 Download Product Datasheet (PDF)
