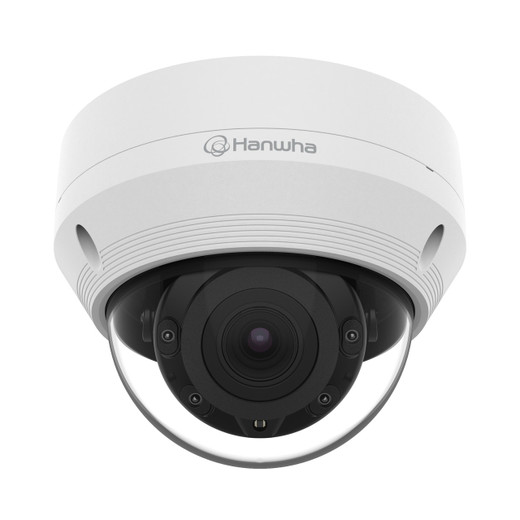

Hanwha QNV-6082R1 2MP Vandal-Resistant Outdoor Dome
Hanwha QNV-6082R1 2MP Vandal-Resistant Outdoor Dome IR IP Camera The Hanwha QNV-6082R1 is a professional-grade outdoor surveillance dome camera engin…
Hanwha QNV-6082R1 2MP Vandal-Resistant Outdoor Dome
$535.00
$321.99
Your recommended setup
Review items below — quantities update pricing automatically.
Item
Qty
Status
Price
Optional Add-Ons recommended
Services optional
Bundle Summary
Bundle Subtotal:
$0.00
Optional Add-Ons:
$0.00
Services:
$0.00
Total:
$0.00
Overview
SKU:
QNV-6082R1
UPC:
8801089209627
Condition:
New
Availability:
Usually ships in 24 hours
Warranty
3-year warranty
Description
Hanwha QNV-6082R1 2MP Vandal-Resistant Outdoor Dome IR IP Camera
The Hanwha QNV-6082R1 is a professional-grade outdoor surveillance dome camera engineered for high-security applications requiring robust vandalism protection and reliable performance in harsh environmental conditions. Built on a 1/2.8" 2MP CMOS sensor, this camera delivers 1920×1080 resolution at 30fps, providing clear, detailed imagery suitable for identifying and tracking activity across expansive outdoor areas.
Key Features
- 2MP CMOS sensor with 1920×1080 native resolution and 30fps frame rate
- 3.2–10mm motorized varifocal lens (3.1× zoom) with DC auto iris for dynamic scene adaptation
- IR illumination up to 30 meters for complete darkness visibility
- IP66 dust/water protection and IK10 vandalism resistance rating
- 120dB Wide Dynamic Range (WDR) for high-contrast environments
- Advanced video analytics: motion detection, tampering alerts, defocus detection, virtual line crossing, enter/exit detection
- PoE (IEEE 802.3af Class 3) or 12VDC power; maximum 7.70W consumption
- H.265/H.264/MJPEG compression with WiseStream II smart codec technology
- microSD/SDHC/SDXC edge storage support (up to 128GB)
Technical Highlights
The QNV-6082R1's motorized varifocal lens provides a horizontal field of view ranging from 109° (wide) to 33.2° (tele), enabling flexible coverage from perimeter monitoring to focused detail capture. The camera's low-light performance is exceptional: 0.03 Lux in color mode (F1.6, 1/30sec) and 0 Lux in black-and-white mode with IR enabled, ensuring continuous operation regardless of ambient lighting. The 120dB WDR capability combined with backlight compensation (BLC) and advanced noise reduction (SSNR) preserves detail in challenging lighting scenarios such as direct sunlight or mixed interior/exterior conditions.
Video transmission and connectivity are enterprise-ready: the camera supports ONVIF Profile S/G/T, SUNAPI HTTP API, and Wisenet open platform integration. Security features include HTTPS/SSL encryption, digest authentication, 802.1X network authentication (EAP-TLS/EAP-LEAP), and user access logging. The camera supports up to 6 unicast users with multiple streaming profiles and bitrate control via CBR/VBR modes, making it ideal for diverse network configurations.
Built for extreme outdoor environments, the QNV-6082R1 operates from −30°C to +55°C with less than 90% relative humidity. Its compact aluminum housing (Ø137×106.1mm, 710g) is available in RAL9003 white and supports single/double/4" octagon gang-box mounting via the SBP-301HMW2 hanging mount accessory.
Applications
Ideal for outdoor perimeter security, critical infrastructure protection, parking facilities, transportation hubs, and any environment where vandalism resistance and all-weather durability are essential. The 4-zone motion detection and 6-zone privacy masking enable customized monitoring workflows.
Marty Allison
The QNV-6082R1 balances professional surveillance demands with practical outdoor deployment constraints. The IK10 rating (equivalent to 20J impact resistance) and IP66 sealing make it genuinely suitable for exposed locations prone to weather and physical tampering. The motorized varifocal lens eliminates the need for multiple fixed cameras, reducing installation complexity and cost.
WiseStream II compression is particularly valuable for edge storage scenarios—the 128GB microSD capacity can store significant video volumes when combined with smart codec efficiency. The 120dB WDR and comprehensive analytics suite (tampering, defocus, directional detection) provide proactive threat identification rather than reactive playback review. For PoE-powered deployments, the 6W typical consumption is efficiently managed by Class 3 switches.
Integration via ONVIF and open platform APIs ensures compatibility with legacy and modern VMS platforms, reducing vendor lock-in risk.
Product Documentation
Specifications
Frame Rate:
30fps
Imaging Device:
1/2.8" 2MP CMOS
Resolution:
1920x1080, 1280x960, 1280x720, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360
Max. Framerate:
H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 15fps/12fps(60Hz/50Hz)
Thermal Sensitivity (NETD:
None
Pixel Size:
None
Min. Illumination:
Color: 0.03Lux(F1.6, 1/30sec) BW: 0Lux(IR LED on)
Video Out:
CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation
Video Transmission Distance:
None
Focal Length (Zoom Ratio:
3.2~10mm(3.1x) motorized varifocal
Max. Aperture Ratio:
F1.6(Wide)~F2.9(Tele)
Angular Field of View:
H: 109.0°(Wide)~33.2°(Tele) / V: 57.4°(Wide)~18.7°(Tele) / D: 132.0°(Wide)~38.0°(Tele)
Min. Object Distance:
0.5m (1.64ft)
Focus Control:
Simple focus
Lens Type:
DC auto iris
Mount Type:
None
Optional Lens:
None
Pan / Tilt / Rotate Range:
0˚~350˚ / 0˚~67˚ / 0˚~355˚
Pan Range:
None
Pan Speed:
None
Tilt Range:
None
Tilt Speed:
None
Rotate Range:
None
Sequence:
None
Preset Accuracy:
None
Camera Title:
Displayed up to 85 characters
Direction Indicator:
None
Day & Night:
Auto(ICR)
Backlight Compensation:
BLC, WDR, SSDR
Wide Dynamic Range:
120dB
Digital Noise Reduction:
SSNR
Digital Image Stabilization:
None
Defog:
None
Motion Detection:
4ea, polygonal zones
Privacy Masking:
6ea, rectangular zones
Gain Control:
Low / Middle / High
White Balance:
ATW / AWC / Manual / Indoor / Outdoor
LDC:
Support
Electronic Shutter Speed:
Minimum / Maximum / Anti flicker (1/5~1/12,000sec)
Digital PTZ:
None
Video Rotation:
Flip, Mirror, Hallway view(90˚/270˚)
Analytics:
Defocus detection, Directional detection, Motion detection, Enter/Exit, Tampering, Virtual line
Business Intelligence:
None
Serial Interface:
None
Alarm Inputs/Outputs:
Input 1ea / Output 1ea
Alarm Triggers:
Analytics, Network disconnect, Alarm input
Alarm Events:
File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers Alarm output
Audio In:
None
Audio Out:
None
IR Viewable Length:
30m(98.42ft)
IR Illuminator (Optional:
None
Water Removal:
None
Auto Tracking:
None
Coaxial Protocol:
None
Color Palettes:
None
Temperature Detect Range:
None
Temperature Accuracy:
None
Temperature Detection:
None
Additional:
None
Ethernet:
RJ-45(10/100BASE-T)
Video Compression:
H.265/H.264: Main/High, MJPEG
Audio Compression:
None
Smart Codec:
WiseStreamⅡ
Video Quality Adjustment:
H.264/H.265: Target bitrate level control MJPEG: Quality Level control
Bitrate Control:
H.264/H.265: CBR or VBR MJPEG: VBR
Streaming:
Unicast(6 users) / Multicast Multiple streaming(Up to 3 profiles)
Protocol:
IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP
Security:
HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP)
Application Programming Interface:
ONVIF Profile S/G/T SUNAPI(HTTP API) Wisenet open platform
Webpage Language:
English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Portuguese, Czech, Polish, Turkish, Dutch
Web Viewer:
None
Edge Storage:
Micro SD/SDHC/SDXC 1slot 128GB
RAM:
512MB RAM, 256MB Flash
Operating Temperature / Humidity:
-30°C ~ +55°C(-22°F ~ +131°F) / Less than 90% RH * Start up should be done at above -20°C
Storage Temperature / Humidity:
-30°C ~ +60°C(-22°F ~ +140°F) / Less than 90% RH
Certification:
IP66, IK10
Input Voltage:
PoE(IEEE802.3af, Class3), 12VDC
Power (Max:
PoE: Max 7.70W, typical 6.00W 12VDC: Max 6.50W, typical 5.10W
Color / Material:
White / Aluminum
RAL Code:
RAL9003
Product Dimensions / Weight:
Ø137.0x106.1mm(Ø5.39x4.18"), 710g(1.57 lb)
Compatible Conduit hole / Gangbox:
Single, Double, 4" Octagon
Hanging Mount (Dome:
SBP-301HMW2
Skin Cover (Dome:
None
Weather Cap (Dome:
None
Power Module:
None
Backbox:
SBV-136BW
Detect (25PPM/ 8PPF:
Wide: 27.4m(89.85ft) / Tele: 128.8m(422.56ft)
Observe (63PPM/ 19PPF:
Wide: 11.0m(35.94ft) / Tele: 51.5m(169.02ft)
Recognize (125PPM/ 38PPF:
Wide: 5.5m(17.97ft) / Tele: 25.8m(84.51ft)
Identify (250PPM/ 76PPF:
Wide: 2.7m(8.99ft) / Tele: 12.9m(42.26ft)
Product Type:
Dome
Connectivity:
Wired
IP Rating:
IP66
Features:
WDR
Night Vision:
IR
Power Type:
PoE
PoE Class:
3
Form Factor:
Dome
Vandal Rating:
IK10
Compatibility:
ONVIF
IR Distance:
0.5m
Built-in IR:
Yes
Day/Night:
Yes
Storage Support:
microSD
Outdoor Ready:
Yes
HTTPS Encryption:
Yes
WDR:
WDR
Weight Lbs:
1.57
