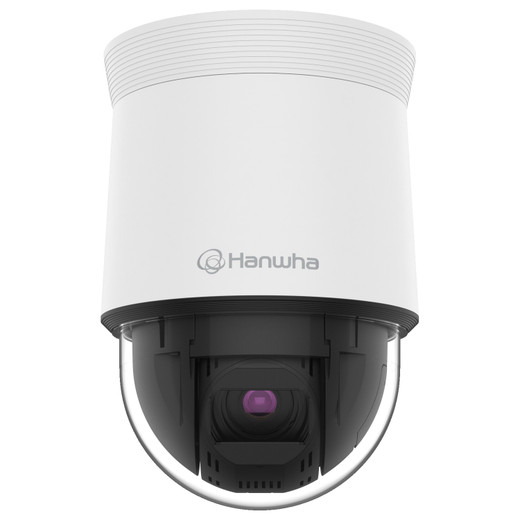

Hanwha QNP-6250 2MP PTZ IR Dome Camera
Hanwha QNP-6250 2MP PTZ IR Dome CameraThe Hanwha QNP-6250 is a high-performance outdoor PTZ dome camera designed for large-scale surveillance applicat…
Hanwha QNP-6250 2MP PTZ IR Dome Camera
$1,500.00
$899.99
Your recommended setup
Review items below — quantities update pricing automatically.
Item
Qty
Status
Price
Optional Add-Ons recommended
Services optional
Bundle Summary
Bundle Subtotal:
$0.00
Optional Add-Ons:
$0.00
Services:
$0.00
Total:
$0.00
Overview
SKU:
QNP-6250
UPC:
8801089204486
Condition:
New
Availability:
Usually ships in 24 hours
Warranty
3-year warranty
Description
Hanwha QNP-6250 2MP PTZ IR Dome Camera
The Hanwha QNP-6250 is a high-performance outdoor PTZ dome camera designed for large-scale surveillance applications requiring extended coverage and detailed identification. Combining 2MP resolution with a powerful 25x optical zoom (800x total with digital zoom), this camera delivers crisp imagery across distances from wide-angle overviews to extreme telephoto detail. Built-in IR illuminators enable effective night vision down to 0.005 Lux in black-and-white mode, ensuring 24/7 operational capability regardless of ambient lighting.
Key Features
- 2MP (1920x1080) resolution at 60fps with H.265/H.264 and MJPEG codec support
- 25x optical zoom (4.44–111mm) with 32x digital zoom and 800x combined magnification
- 360° endless pan at speeds up to 700°/sec; 105° tilt range with ±0.2° preset accuracy
- Integrated IR LEDs with 1.5m minimum distance and 0.005 Lux minimum illumination (B/W mode)
- 120dB Wide Dynamic Range (WDR) for balanced exposure in high-contrast scenes
- Built-in digital image stabilization with gyro sensor to counteract camera shake
- IP66-rated outdoor housing; operates -10°C to +55°C with 0–95% RH tolerance
- PoE+ powered (IEEE 802.3at, Class 4); max 14.5W consumption
- Micro SD/SDHC/SDXC edge storage (up to 256GB) with local recording capability
Advanced Analytics & Intelligence
The QNP-6250 integrates motion detection, directional detection, virtual line crossing, enter/exit detection, tampering alerts, and audio detection analytics. Up to 8 motion detection zones with 8-point polygonal configuration enable granular region-of-interest monitoring. The camera supports auto-tracking for dynamic subject pursuit and includes 300 preset positions with swing, group, trace, and schedule sequencing for comprehensive coverage automation.
Security & Connectivity
Network security is enforced through 802.1X authentication, HTTPS/SRTP encryption, IP filtering, and firmware encryption. The camera supports ONVIF Profile S/G/T, SUNAPI HTTP API, and Wisenet open platform integration. Audio input/output (G.711, G.726, AAC-LC codecs) enables two-way communication. Alarm I/O (4 input, 2 output) with multiple trigger actions—file upload, email notification, SD/NAS recording, and HTTP/HTTPS handover—provide flexible event response workflows.
Applications
Ideal for parking facilities, urban perimeter security, critical infrastructure monitoring, transportation hubs, and large outdoor venues. The combination of extreme zoom range, intelligent analytics, and robust environmental rating makes this camera suitable for fixed-position surveillance requiring both wide situational awareness and detailed forensic capability.
Karl Wilson
The QNP-6250 targets high-end outdoor PTZ deployments where coverage area and identification distance justify the investment. The 800x magnification—achieved through 25x optics plus 32x digital zoom—enables object identification at distances exceeding 480 meters in optimal conditions, though practical identification typically occurs within 150m. The 120dB WDR and digital stabilization are essential for mixed-lighting environments and windy rooftop installations.
PoE+ class 4 (max 14.5W) is efficient for modest hub distances; verify PoE+ injector capacity for multiple units. Micro SD backup is valuable for edge recording during network interruptions. The preset system (300 positions, ±0.2° accuracy) supports repeatable patrol routines.
For integrators, ONVIF compliance and Wisenet API support multi-vendor control center adoption. Typical deployment scenarios include campus perimeter, port/logistics yards, and utility substations where 24/7 automated tours with rapid zoom-in-on-demand capability justify the complexity and cost versus fixed-focal cameras.
Product Documentation
Specifications
Frame Rate:
60fps
Imaging Device:
1/2.8" CMOS
Resolution:
1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
Max. Framerate:
H.265/H.264: Max. 60fps/50fps(60Hz/50Hz); MJPEG: Max. 30fps/25fps(60Hz/50Hz)
Min. Illumination:
Color: 0.05Lux(F1.6, 1/30sec, 30IRE); BW: 0.005Lux(F1.6, 1/30sec, 30IRE)
Focal Length (Zoom Ratio:
4.44~111mm(25x) zoom (digital 32x, total 800x zoom)
Max. Aperture Ratio:
F1.6(Wide)~F3.9(Tele)
Angular Field of View:
H: 64.66°(Wide)~2.99°(Tele); V: 38.08°(Wide)~1.68°(Tele)
Min. Object Distance:
Wide: 1.5m(4.92ft) / Tele: 2m(6.56ft)
Focus Control:
Oneshot AF, Focus save
Lens Type:
DC auto iris
Pan Range:
360° Endless
Pan Speed:
Preset: 700°/sec, Manual: 0.024°/sec~200°/sec
Tilt Range:
105°(90°~-15°)
Tilt Speed:
Preset: 300°/sec, Manual: 0.024°/sec~200°/sec
Sequence:
Preset(300ea), Swing, Group(6ea), Trace, Tour, Auto Run, Schedule
Preset Accuracy:
±0.2°
Camera Title:
Displayed up to 85 characters
Direction Indicator:
Support
Day & Night:
Auto(ICR)
Backlight Compensation:
BLC, HLC, WDR, SSDR
Wide Dynamic Range:
120dB
Digital Noise Reduction:
SSNRⅤ
Digital Image Stabilization:
Support(built-in gyro sensor)
Defog:
Support
Motion Detection:
8ea, 8point polygonal zones
Privacy Masking:
32ea, 4point quadrangle zones; - Color: Grey/Green/Red/Blue/Black/White; - Solid/Mosaic
Gain Control:
Low / Middle / High
White Balance:
ATW / AWC / Manual / Indoor / Outdoor / Mercury / Sodium
Electronic Shutter Speed:
Minimum / Maximum / Anti flicker (2~1/12,000sec)
Video Rotation:
Flip, Mirror
Analytics:
Analytics events; - Directional detection, Motion detection, Enter/Exit, Tampering, Virtual line, Audio detection
Alarm Inputs/Outputs:
Input 4ea / Output 2ea
Alarm Triggers:
Analytics, Network disconnect, Alarm input
Alarm Events:
When alarm trigger occurred; - File upload(image) : e-mail/FTP; - Notification : e-mail; - Recording : SD/SDHC/SDXC or NAS recording at event triggers; - Alarm output; - Handover(PTZ preset, Send message by HTTP/HTTPS/TCP)
Audio In:
Selectable(mic in/line in); Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
Audio Out:
Line out, Max.output level: 1Vrms
Auto Tracking:
Support
Ethernet:
RJ-45(10/100BASE-T)
Video Compression:
H.265/H.264: Main/High, MJPEG
Audio Compression:
G.711 u-law /G.726 Selectable; G.726(ADPCM) 8KHz, G.711 8KHz; G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps; AAC-LC: 48Kbps at 16KHz
Smart Codec:
Manual(5ea area), WiseStreamⅡ
Bitrate Control:
H.264/H.265: CBR or VBR; MJPEG: VBR
Streaming:
Unicast(20 users) / Multicast; Multiple streaming(Up to 10 profiles)
Protocol:
IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP (TCP, UDP Unicast), NTCIP1205
Application Programming Interface:
ONVIF Profile S/G/T; SUNAPI(HTTP API); Wisenet open platform
OS / Firmware Protect:
Firmware encryption
User authentication:
Digest Authentication, Privent brute-force attack
Network authentication:
802.1X Authentication(EAP-TLS, EAP-LEAP, EAP-PEAP MSCHAPv2)
Secure Communication:
HTTPS, SRTP, WSS(Websocket secure)
Access Control:
IP address filtering
Data Protect:
Authentication information encryption, ZIP compression encryption
Audit:
User Access/System/Event log
Device ID:
Device Certificate(Hanwha Techwin Root CA, pre-installed)
Webpage Language:
English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
Edge Storage:
Micro SD/SDHC/SDXC 1slot Max. 256GB
RAM:
1GB RAM, 256MB Flash
Operating Temperature / Humidity:
-10°C~+55°C(14°F~+131°F) / 0~95% RH(Non-condensing)
Storage Temperature / Humidity:
-30°C~+60°C(-22°F~+140°F) / 0~95% RH
Input Voltage:
PoE+(IEEE802.3at, Class4)
Power (Max:
PoE+: Max 14.5W, typical 12W
Color / Material:
White / Plastic
RAL Code:
RAL9003
Product Dimensions / Weight:
ø152x218mm(ø5.98x8.58"), 1700g(3.75 lb)
Hanging Mount (Dome:
SBP-301HMW3
Ceiling Mount (Assy:
SBP-300CMW, SBP-300CMW1/900CMW, SBP-150CMI/300CMI, SBP-300CMTW, SBP-300CMTS
Wall Mount:
SBP-300WMW1, SBP-300WMW, SBP-250WMW, SBP-390WMW2
Pole Mount:
SBP-300PMW2, SBP-156LMW1
In-ceiling Mount:
SHP-1520FW
Parapet Mount:
SBP-300LMW
Corner Mount:
SBP-300KMW1
Housing (Box:
SHP-3701H
Cabinet:
SBP-300NBW
Other Compatible Models:
SPB-PTZ6, SBP-115PFA
EMC:
FCC 47 CFR 15 Subpart B Class A; IC Regulation ICES-003 Issue 7 Class A; CE/UKCA; - EN 55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3; VCCI CISPR 32 Class A; RCM AS/NZS CISPR 32 Class A
Safety:
UL 62368-1, CAN/CSA C22.2 NO. 62368-1
Environment Rating:
IEC/EN 63000
Detect (25PPM/ 8PPF:
Wide: 60.7m(199.1ft) / Tele: 1471.3m(4827.2ft)
Observe (63PPM/ 19PPF:
Wide: 24.3m(79.6ft) / Tele: 588.5m(1930.9ft)
Recognize (125PPM/ 38PPF:
Wide: 12.1m(39.8ft) / Tele: 294.3m(965.4ft)
Identify (250PPM/ 76PPF:
Wide: 6.1m(19.9ft) / Tele: 147.1m(482.7ft)
Product Type:
Dome
Connectivity:
Wired
IP Rating:
IP66
Features:
WDR
Night Vision:
IR
Power Type:
PoE+
PoE Class:
4
Form Factor:
PTZ
Compatibility:
ONVIF
IR Distance:
1.5m
Built-in IR:
Yes
Day/Night:
Yes
Storage Support:
microSD
HTTPS Encryption:
Yes
WDR:
WDR
Weight Lbs:
3.75
