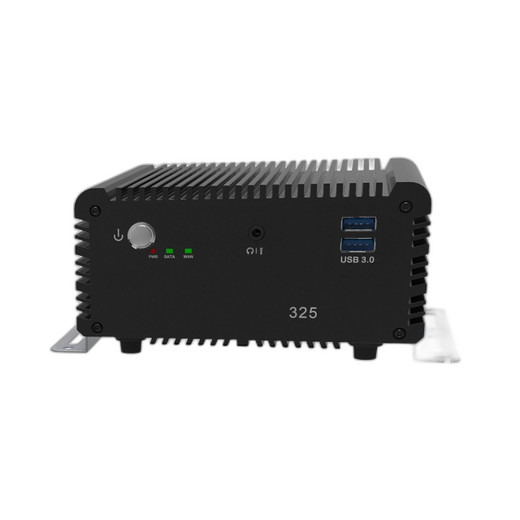

Hanwha CMVR-325 Wisenet SKY Compact NVR

Hanwha CMVR-325 Wisenet SKY Compact NVR

The Hanwha CMVR-325 Wisenet SKY is a compact, metal-chassis network video recorder engineered for small-to-medium security deployments across retail, SMB offices, and distributed branch locations. This rugged unit combines local recording with cloud-based analytics, integrated PoE power delivery, and enterprise-grade redundancy in a space-efficient form factor—eliminating the need for external power injectors and reducing installation complexity.

Key Features

• Supports up to 8 cameras at 4MP or 12 cameras at 1MP resolution
• 4 integrated PoE ports (IEEE 802.3af Class 3) for direct camera power delivery
• Dual gigabit Ethernet ports for network redundancy and failover protection
• 2TB integrated hard drive with 10-day retention for full 12-camera 1MP deployment
• 5 concurrent cloud analytics streams via Wisenet Cloud integration
• Dual video outputs: HDMI and DisplayPort for multi-monitor management
• Embedded Linux OS for secure, lightweight operation
• Compact wall or shelf-mountable design: 127mm × 172mm × 75mm

Recording & Storage

The CMVR-325 accommodates mixed-resolution camera setups with flexible scalability. The 2TB integrated drive provides approximately 10 days of retention for a full 12-camera 1MP deployment. This capacity supports longer archive periods when operating at lower camera counts or higher compression ratios, making it suitable for compliance-driven environments requiring extended footage access.

Connectivity & Power Architecture

Dual gigabit Ethernet ports enable network redundancy and failover protection, critical for locations where recorder availability directly impacts security operations. The four integrated PoE ports (IEEE 802.3af Class 3) deliver power and data over a single cable run, simplifying deployment and reducing cabling costs. Two USB 3.0 ports support external storage expansion and peripheral device integration for enhanced operational flexibility.

Cloud & Analytics Integration

Built-in Wisenet Cloud connectivity enables up to 5 concurrent analytics streams, allowing remote monitoring, motion detection, and intelligent event logging without requiring separate analytics hardware. This integration supports distributed surveillance architectures where central monitoring and cloud archival are operational requirements.

Display & Management

Dual video outputs—HDMI and DisplayPort—allow simultaneous connection to multiple monitors or displays, enabling comprehensive real-time viewing and playback workflows. The Embedded Linux operating system provides a lightweight, security-hardened platform resistant to common OS-level vulnerabilities.

Physical Design & Compliance

The CMVR-325 features a durable metal chassis with compact dimensions (127mm × 172mm × 75mm) and weighs 1.92kg, enabling flexible deployment on shelves, walls, or within equipment racks. It operates reliably across 0°C to 35°C and 0–70% RH non-condensing environments. The unit includes wall mount hardware and a 20W power supply (100–240V AC input). Full certifications—FCC, UL, PSE, CE, CCC, REACH, RoHS, C-Tick, and NDAA compliance—confirm suitability for regulated and government-sector deployments.

Karl Wilson

The CMVR-325 is purpose-built for organizations seeking integrated PoE power without external injectors or modular expansion complexity. Its dual Ethernet architecture and cloud analytics integration make it ideal for branch office deployments where redundancy and remote visibility are non-negotiable. The 2TB drive with predictable 10-day 1MP retention enables straightforward capacity planning for compliance and incident investigations.

The metal chassis and broad certification portfolio reinforce its position as a reliable choice for regulated sectors. Compared to plastic-chassis alternatives, the 325's structural durability and operational stability justify the higher weight and form factor for permanent installations.
