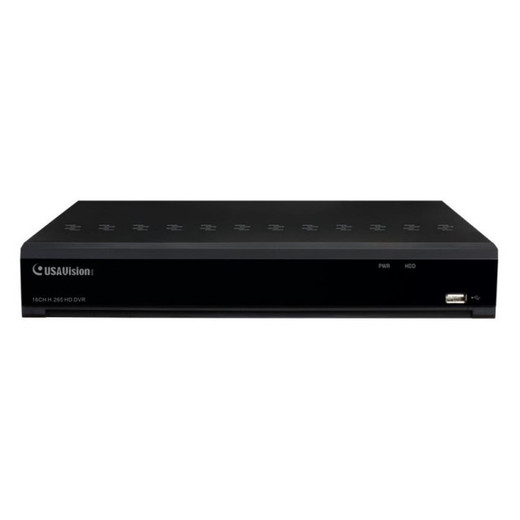

Geovision 84-XVL1610-UA0U 16-Channel 5MP DVR

Geovision 84-XVL1610-UA0U 16-Channel 5MP DVR

Overview

The Geovision 84-XVL1610-UA0U is a 16-channel DVR system engineered for small-to-medium surveillance deployments requiring 5MP recording capability with modern compression efficiency. This unit combines the 84-XVL1610-UA0U architecture with H.265 video compression technology, delivering reliable multi-channel monitoring at reduced bandwidth and storage footprint compared to legacy H.264 systems. Built for integration into existing security infrastructure, this DVR supports hybrid recording configurations with LITE and 2MP HD channel modes, providing flexibility for mixed-resolution camera environments.

Key Features

• 16-Channel Recording: Simultaneous capture from up to 16 video sources, scaling from small retail and office installations to distributed multi-site operations.
• 5MP Native Resolution: Records at 5MP maximum resolution, delivering high-definition detail capture for facial recognition, license plate reading, and forensic analysis.
• H.265 Video Compression: Advanced compression standard reduces file size and bandwidth consumption by 40-50% versus H.264 at equivalent quality, lowering storage costs and network strain.
• LITE and 2MP HD Mode Support: Configurable hybrid recording modes allow mixed-resolution channel assignments—record critical zones at 5MP while monitoring secondary areas at LITE or 2MP HD resolution.
• Multi-Format Compatibility: Accepts analog, HD-SDI, IP, and mixed camera types on the same 16-channel backplane, simplifying upgrade paths from legacy systems.
• Reliable DVR Architecture: Purpose-built DVR design ensures consistent recording performance without resource contention typical of software-based NVR solutions on standard servers.
• Network Integration Ready: Supports remote viewing and configuration over Ethernet, enabling off-site monitoring and centralized management.
• Scalable Storage: Internal and external HDD bays accommodate enterprise-grade SATA drives; storage capacity scales with deployment size and retention policy.

Integration & Compatibility

The 84-XVL1610-UA0U interfaces with ONVIF-compliant IP cameras and analog inputs, supporting mixed-source surveillance architectures common in retrofit and multi-site deployments. H.265 codec support ensures forward compatibility with next-generation camera hardware while maintaining playback of H.264 archives. The 16-channel design accommodates standard BNC analog inputs and IP stream assignments, providing integrators flexibility to match customer infrastructure without forced hardware replacement.

Operational Specifications

Recording performance is optimized for continuous 24/7 operation in climate-controlled security closets and server rooms. The DVR's fixed-installation form factor and industrial-grade power supply support extended mean-time-between-failures (MTBF) requirements in commercial and institutional environments. Motion detection, scheduled recording, and manual trigger modes reduce storage consumption during low-activity periods while ensuring critical events are retained at full 5MP resolution.

Marty Allison

I evaluated the Geovision 84-XVL1610-UA0U during planning for a multi-location retail deployment, and the 16-channel H.265 DVR proved valuable for integrators managing mixed analog-and-IP environments. The 5MP native resolution provides sufficient forensic detail for loss prevention investigations, while H.265 compression kept storage budgets realistic across 15-30 day retention cycles.

Technical Highlights:

• H.265 Compression Efficiency: 40-50% file size reduction over H.264 means a 16-channel 5MP system stores 30 days of continuous recording on 40-50% less disk capacity—critical when storage budgets are tight.
• Hybrid Recording Modes: The LITE/2MP HD support allows mixed-resolution configurations; assign 5MP to entry points and high-value zones, use 2MP for hallways and perimeter coverage.
• 16-Channel Scalability: Fits small commercial installations (retail, SMB offices) without over-provisioning; clean upgrade path from 4- or 8-channel legacy systems.

Deployment Considerations:

• DVR placement in climate-controlled security room or wall-mounted cabinet is essential—unlike NVRs, this appliance requires stable thermal management for 24/7 reliability.
• Validate existing storage and network infrastructure before deployment; H.265 playback may require codec support on client VMS or viewing software. Test compatibility with your remote monitoring platform.
• For analog-heavy installations, the 84-XVL1610-UA0U reduces the need for encoder boxes; assign legacy BNC cameras directly to channels and upgrade IP-capable zones incrementally.

The 84-XVL1610-UA0U is well-suited to integrators supporting stable small-to-medium commercial accounts where H.265 efficiency justifies the DVR appliance approach over software NVR. Plan storage and network sizing early, validate codec support in your VMS, and the unit will deliver consistent performance across standard retail and office deployments.
