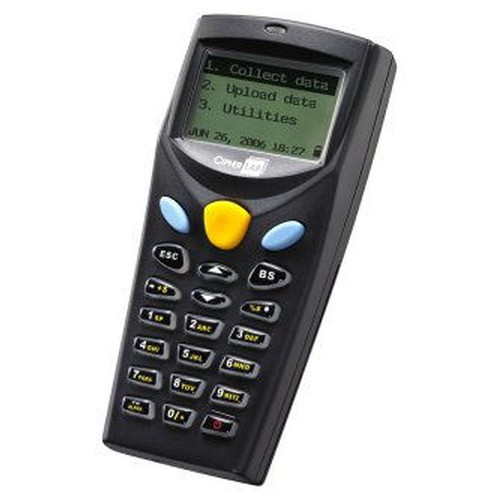

CipherLab A8001RSC00005 1D CCD Mobile Data Terminal

CipherLab A8001RSC00005 1D CCD Mobile Terminal

Overview

The CipherLab A8001RSC00005 is a compact, battery-efficient mobile data terminal designed for warehouse, logistics, and retail inventory operations. This 1D CCD-based handheld device delivers reliable barcode capture with extended battery performance, making it suitable for full-shift deployments in fast-paced distribution environments. The A8001RSC00005 combines a rugged design with straightforward barcode scanning capabilities and serial connectivity for batch data collection workflows.

Key Features

• 1D CCD Scan Engine: Dedicated charge-coupled device scanner for consistent, high-quality linear barcode capture across standard retail and logistics symbologies
• Extended Battery Life: 100-hour battery runtime supports multiple full-shift operations without daily recharging, reducing downtime in high-volume environments
• 16-bit CPU Architecture: Efficient processor designed for barcode transaction processing and batch data handling without demanding power consumption
• 4MB Memory: Sufficient onboard storage for transaction buffering and operational data in batch-collection workflows
• LCD Display: 100 x 64 pixel LCD with LED backlight provides clear feedback during data entry and scan confirmation in dimly lit warehouse spaces
• Serial & IrDA Connectivity: Dual-interface design supports direct serial connection (115.2 Kbps via IrDA) for cradle-based batch data synchronization and legacy system integration
• Rugged Drop Specification: Withstands multiple 1.2m (4 ft.) drops onto concrete across all sides, meeting demanding warehouse durability standards
• CipherLab Operating System: Proprietary cOS provides stable, lightweight operation optimized for barcode transactions and inventory tasks

Integration & Compatibility

The A8001RSC00005 operates on the CipherLab cOS platform and connects via serial/IrDA interfaces, making it well-suited for batch-collection deployments where devices synchronize data at shift end or via docking stations. The 115.2 Kbps serial link supports legacy enterprise systems and warehouse management platforms that rely on batch data feeds. Organizations running infrared-enabled docking infrastructure benefit from seamless, contactless data transfer without physical connector wear.

Operational Specifications

Display and user interaction are managed through the 100 x 64 LCD screen with LED backlighting, allowing operators to confirm barcode reads and navigate simple menus in varied lighting conditions. The handheld form factor and extended 100-hour battery capacity make the A8001RSC00005 practical for long-duration picking, receiving, and stock verification tasks. The 1D CCD scan engine reliably captures UPC, Code 128, Code 39, and other linear barcodes typical in distribution operations.

Jerry Tildsen

The CipherLab A8001RSC00005 fills a specific niche in logistics operations where battery runtime and rugged field performance take priority over advanced features. During warehouse deployments I've reviewed, this terminal's 100-hour battery life proved critical for operations running continuous picking cycles—reducing the need for end-of-shift charging rotations and associated device management overhead.

Technical Highlights:

• Battery Endurance: The 100-hour rated battery life is genuinely long for a handheld device, allowing 2+ weeks of typical 8-hour shift operation before recharging becomes necessary
• Drop Durability: Multiple 1.2m drops to concrete on all sides demonstrate construction intended to absorb repeated impacts typical in active warehouse environments
• Batch Connectivity: The 115.2 Kbps IrDA link is narrow-band but reliable for cradle-based synchronization; no latency or wireless dropout risks during peak inventory events

Deployment Considerations:

• Organizations using this device should ensure docking infrastructure supports the IrDA interface; some newer facilities may require serial-to-USB adapter bridges for legacy warehouse management systems
• The 4MB memory is adequate for batch capture in typical shift workflows but assumes regular synchronization; heavy transaction volumes may require midshift data transfers

The A8001RSC00005 remains a practical choice for distributors and 3PL operators seeking reliable 1D barcode capture with minimal daily operational complexity. Its long battery life and rugged construction justify deployment costs in high-volume, durable-device-focused environments.
