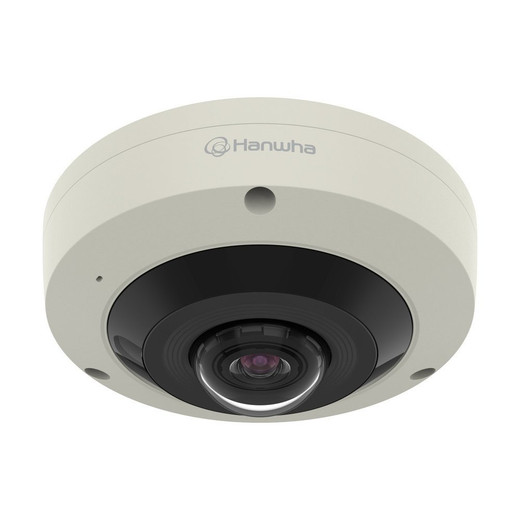

Hanwha XNF-8010RVM B2 Overview
The Hanwha XNF-8010RVM B2 is a 6MP panoramic fisheye network camera built on Wisenet X and Wisenet 5 platforms, engineered for mobile and stationary outdoor surveillance applications requiring wide-angle coverage and ruggedized construction. This B-stock unit combines extreme field-of-view capability with advanced video analytics and weatherproofing, making it suitable for fleet monitoring, perimeter surveillance, and high-vandalism environments where traditional fixed domes fall short.
Hanwha XNF-8010RVM B2 Key Features
- 192-Degree Panoramic Fisheye Coverage: Fixed 1.6mm lens delivers near-complete hemispherical viewing angle in a single camera stream, eliminating blind spots and reducing installation count for wide-area monitoring applications.
- 6MP CMOS Sensor at 2048×2048 Resolution: Captures full-resolution video at 30 fps, delivering sufficient detail for facial recognition and license plate identification across the entire field of view without multi-sensor complexity.
- Triple Codec Support with WiseStream II Technology: Encode simultaneously in H.265, H.264, and MJPEG with intelligent WiseStream II bitrate optimization, enabling bandwidth-efficient recording while maintaining multi-client playback flexibility and legacy system compatibility.
- 120dB Wide Dynamic Range: WDR processing compensates for extreme lighting contrasts—backlit perimeters, loading docks, and mixed indoor/outdoor scenes—ensuring usable detail in both shadow and highlight regions.
- High-Power IR with 49-Foot Effective Range: Integrated IR LEDs deliver reliable night-vision coverage across mid-to-large outdoor areas; simple mechanical focus adjustment streamlines field installation without software recalibration.
- Advanced Video and Sound Classification Analytics: Built-in analytics detect motion, classify audio events, and trigger business intelligence insights; supports integration with VMS platforms for automated incident response and behavioral analysis.
- IP66 / IK10 Rating for Extreme Durability: Sealed against dust and water jets; withstands impacts up to 20 joules, meeting requirements for high-vandalism transit, industrial, and outdoor retail environments.
- Wide Operating Temperature Range: Rated -40°C to +55°C (-40°F to +131°F), ensuring performance in arctic shipping containers, desert perimeters, and unheated structures without environmental enclosures.
- Dual SD Card Slots with HLC and Defog Detection: Local backup recording on dual microSD cards; HLC (High Light Compensation) and defog algorithms adapt automatically to condensation and glare, critical for coastal and tropical deployments.
- PoE and 12VDC Power Flexibility: Supports both PoE (802.3af) and 12V DC supply, accommodating installations where PoE budget is constrained; USB port simplifies firmware updates and configuration.
- Digital Image Stabilization (DIS): Compensates for camera vibration on moving vehicles or vibration-prone mounting surfaces; preserves video quality in mobile surveillance and dynamic environments.
- Mobile-Optimized M12 Connector: Factory-equipped with M12 circular connector for rugged mobile applications; note that RJ45-to-M12 adapter is not included and must be sourced separately if hybrid wired/M12 installations are required.
Hanwha XNF-8010RVM B2 Integration & Compatibility
The XNF-8010RVM B2 operates as an ONVIF-compliant network camera, integrating with standard Wisenet NMS platforms and third-party VMS systems supporting ONVIF Profile S/T/G discovery and streaming. Supports HTTP/HTTPS secure access, 802.1X network authentication, and firmware-signed software updates. M12 connector configuration requires planning for cabling and termination; consult network topology before ordering to ensure all necessary adapters are available in your supply chain.
