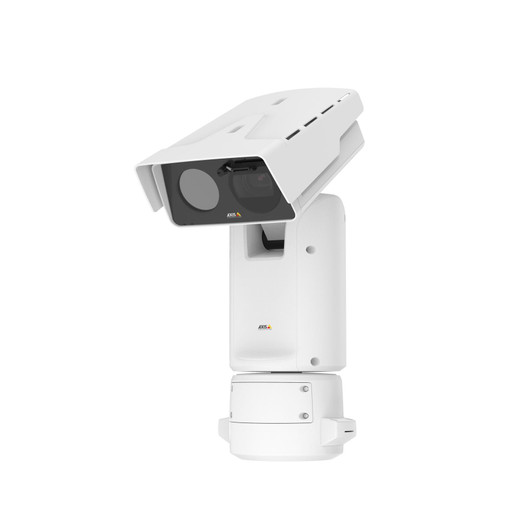

Axis XQ8752-E 2MP 8.3fps Bispectral PTZ IP Camera, 01840-001

Axis XQ8752-E 2MP Bispectral PTZ IP Camera

The Axis XQ8752-E is a dual-spectrum PTZ camera engineered for demanding perimeter security, border control, and critical infrastructure monitoring. By integrating thermal and visual imaging into a single platform, this camera delivers comprehensive surveillance across all lighting and weather conditions. With 2MP visual resolution at 8.3 fps and a 32x optical zoom, the XQ8752-E captures forensic-quality detail at distances exceeding 3 km for human detection and 9+ km for vehicles.

Key Features

• Bispectral Imaging: Combines thermal and visual cameras in one unit for simultaneous thermal detection and visual identification
• 2MP 1080p HDTV Resolution: Delivers high-quality visual footage at up to 8.3 fps for detailed forensic analysis
• 32x Optical Zoom: Narrows field of view from 58.5° to 2.4° horizontally, enabling identification at extreme range
• 360° Endless Pan & -90° to +45° Tilt: Complete coverage with smooth motorized movement and preset position touring
• Lightfinder 2.0 Technology: Captures true-color images at 0.1 lux minimum illumination for 24/7 visibility
• Forensic WDR: Balances exposure in mixed lighting scenes, preserving critical detail in highlights and shadows
• Autotracking 2.0: Automatically follows moving objects within the thermal image
• PoE Powered: Single cable installation with built-in power delivery simplifies deployment
• Military-Grade Durability: IP66-rated and IK10 vandal-resistant housing rated for -40° to +55°C operation
• H.264 Compression & Zipstream: Reduces bandwidth and storage requirements without sacrificing image quality

Technical Specifications

• Sensor: 1/2.8" CMOS with Forensic WDR
• Focal Length: 4.3–137.6mm (32x optical zoom)
• Field of View: 58.5°–2.4° horizontal; 34.9°–1.3° vertical
• Frame Rate: 8.3 fps at 1920×1080
• Night Vision: Integrated IR and Lightfinder 2.0
• Audio: Bidirectional support with audio detection
• Connectivity: Wired PoE with ONVIF Profile G compliance
• Security: Signed firmware, secure boot, and TPM support
• Storage: Local storage support; integrated alarm I/O (4 channels)
• Environmental Rating: IP66 (dust and water-resistant), IK10 (impact-resistant)

Applications

• Border and perimeter security for military and government facilities
• Critical infrastructure protection (power plants, water treatment, transportation hubs)
• Port and airport surveillance
• Wide-area monitoring in extreme weather and low-light environments
• Forensic-grade documentation for legal proceedings

Marty Allison

The XQ8752-E represents a mature solution in thermal-visual fusion, targeting operators who require absolute certainty in target identification across day and night. The 32x optical zoom combined with thermal detection range exceeding 9 km for vehicles makes this camera exceptional for border and perimeter applications where early warning is critical. Lightfinder 2.0 and Forensic WDR address the camera's primary vulnerability—the 8.3 fps frame rate—by maximizing usable detail in each frame.

Autotracking 2.0 compensates for the narrow field of view at maximum zoom, reducing operator burden during extended monitoring. The IK10 rating and -40° to +55°C operating range confirm outdoor-hardened design. Bandwidth-conscious operators should leverage Zipstream compression; thermal streams typically consume 2–5 Mbps even at full resolution.

Security certifications (signed firmware, TPM, secure boot) align with government and enterprise procurement standards. Total cost of ownership favors the XQ8752-E in high-value applications where false negatives carry unacceptable risk.
