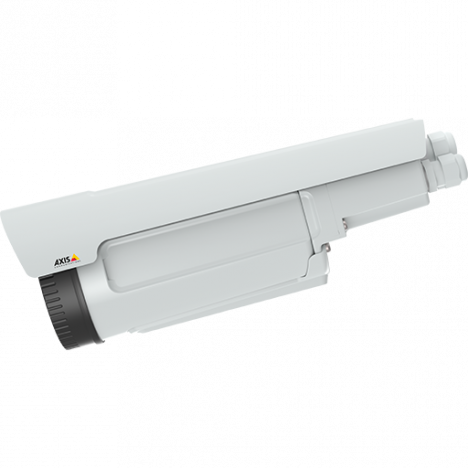

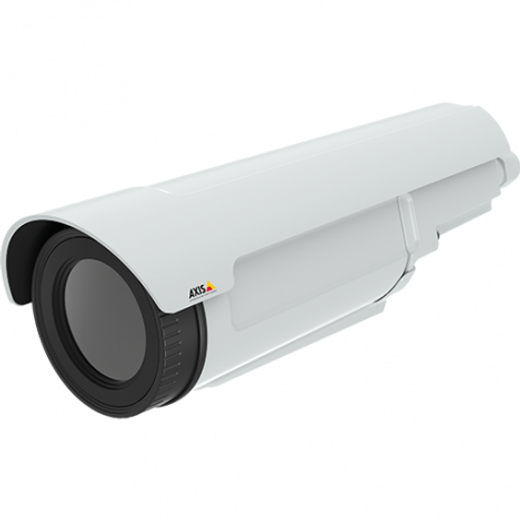

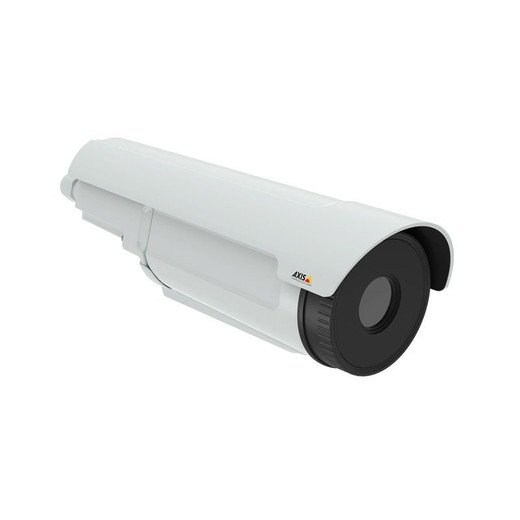

Axis Q1941-E Thermal Outdoor Bullet IP Camera

Axis Q1941-E Thermal Outdoor Bullet IP Camera

The Axis Q1941-E is a professional-grade thermal network camera engineered for outdoor surveillance of critical infrastructure, perimeter security, and challenging environmental conditions. Built on uncooled microbolometer technology, this camera delivers reliable 24/7 thermal detection without visible light dependency, making it ideal for night operations, fog, smoke, and low-visibility scenarios.

Key Features

• 384x288 thermal sensor resolution with <70 mK thermal sensitivity (NETD) for precise temperature differentiation
• Up to 768x576 maximum resolution with 30 fps capture rate for smooth thermal video
• Wide 55° horizontal field of view with 7 mm focal length for expansive area coverage
• IP66-rated weatherproof housing rated for -40 to 60°C operating temperature range
• Power over Ethernet (PoE Class 3) for simplified installation and power delivery
• H.264 video compression with Zipstream technology for efficient bandwidth utilization
• Electronic image stabilization for clearer footage in dynamic environments
• Uncooled thermal sensor eliminates cooling maintenance and extends operational life

Technical Specifications

• Thermal Imaging: Uncooled microbolometer sensor with <70 mK thermal sensitivity for enhanced detail recognition
• Video Output: 384x288 native resolution, 768x576 maximum upscaled resolution, 30 fps frame rate
• Optics: 7 mm fixed focal length, 55° horizontal / 43° vertical field of view
• Connectivity: Wired Ethernet with PoE Class 3 power supply
• Environmental Rating: IP66 weatherproof; operates reliably from -40°C to +60°C
• Compression: H.264 with Zipstream for reduced storage and bandwidth demands
• Integration: Serial connectors, local storage capability, tamper detection, built-in analytics
• Security: Signed firmware support for verified software integrity

Ideal Applications

• Perimeter and border security for critical infrastructure
• Nighttime surveillance in areas without adequate lighting
• Industrial facility monitoring and intruder detection
• Port and logistics facility protection
• Emergency response coordination and situational awareness
• Environmental monitoring in harsh outdoor conditions

Marty Allison

The Q1941-E represents Axis' commitment to thermal surveillance reliability. The uncooled microbolometer design eliminates the complexity and maintenance burden of cooled sensors while delivering exceptional thermal sensitivity below 70 mK—critical for detecting subtle temperature variations in detection scenarios. With PoE Class 3 power delivery, installation costs are minimized compared to systems requiring separate power infrastructure.

The 55° wide field of view paired with 30 fps capture creates an optimal balance between coverage and frame rate for most outdoor security applications. H.264 compression with Zipstream significantly reduces storage requirements, a major consideration for thermal systems that generate continuous 24/7 footage. The IP66 rating and -40 to +60°C operating range ensure year-round operation in demanding climates.

Integration features including local storage, tamper detection, and analytics-ready architecture make this camera suitable for comprehensive surveillance deployments that demand minimal on-site technician involvement.

Download Product Datasheet (PDF)
