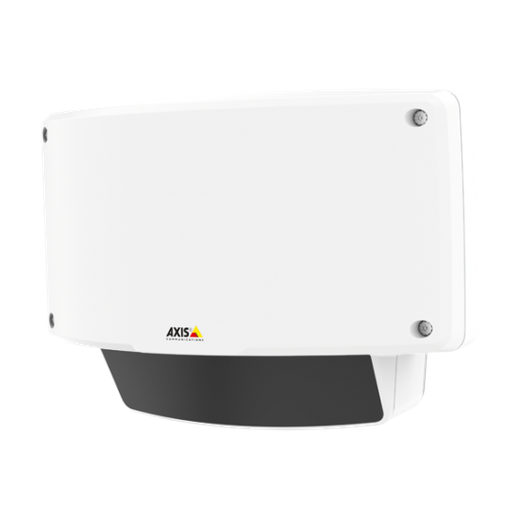

Axis D2050-VE Network Radar Detector
Phased array FMCW (Frequency Modulated Continuous Wave), 24 GHz outdoor radar motion detector. 120 degrees horizontal and 5-50 meter detection range (…
Axis D2050-VE Network Radar Detector
Your recommended setup
Review items below — quantities update pricing automatically.
Item
Qty
Status
Price
Optional Add-Ons recommended
Services optional
Bundle Summary
Bundle Subtotal:
$0.00
Optional Add-Ons:
$0.00
Services:
$0.00
Total:
$0.00
Overview
SKU:
01033-001
UPC:
7331021058293
Condition:
New
Availability:
No Longer Available
Warranty
3-year warranty
Description
Phased array FMCW (Frequency Modulated Continuous Wave), 24 GHz outdoor radar motion detector. 120 degrees horizontal and 5-50 meter detection range (16-164 feet).
Serves as a complement to video surveillance and enables filtering on distance, customizable detection zones, and autotracking for PTZ cameras. Trigger events to activate camera recording, audio notification or light for deterrence
Open API for software integration, microSD/SDHC memory card slot for edge storage, 4 input/output ports, 24 V DC relay port. Wall mount.
Powered by PoE+ (IEEE 802.3at, Type 2 Class 4), IP66, IK08 and NEMA 4X
Operating conditions -40°C to 60°C (-40°F to 140°F).
Midspan not included
Specifications
frequency:
24 GHz
storage:
microSD/SDHC card slot
Field of View:
120 degrees horizontal
IP Rating:
IP66
Vandal Rating:
IK08
Power Type:
PoE+
Operating Temperature:
-40°C to 60°C
Form Factor:
Wall mount
Product Type:
Network Radar Detector
Detection Technology:
Phased array FMCW
Detection Range:
5-50 meters
Power Standard:
IEEE 802.3at Type 2 Class 4
Relay Port:
24 V DC
I/O Ports:
4
NEMA Rating:
NEMA 4X
