Altronix

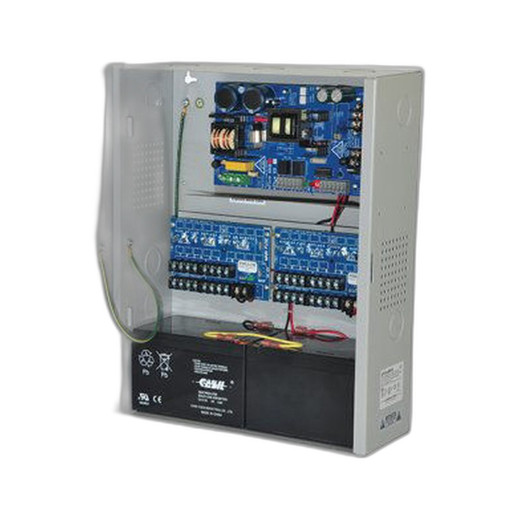

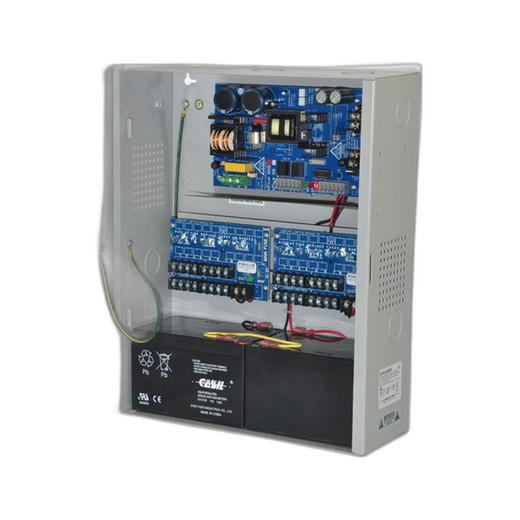

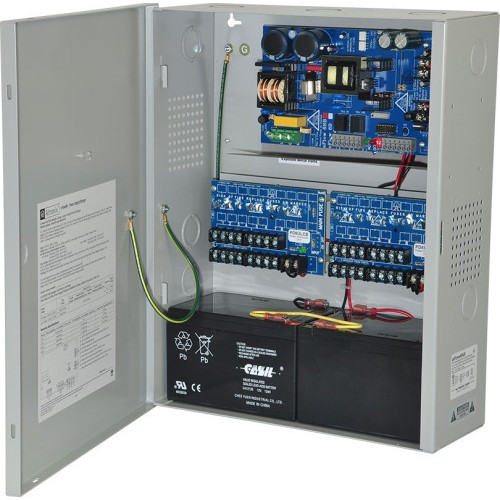

Altronix EFLOW6NX16D Power Supply/Charger w/Fire Alarm Discon
Altronix EFLOW6NX16D Power Supply/Charger w/Fire Alarm Discon
Altronix EFLOW6NX16D Power Supply/Charger with Fire Alarm Disconnect The Altronix EFLOW6NX16D is a UL Listed power supply and charger designed for se…
Altronix EFLOW6NX16D Power Supply/Charger w/Fire Alarm Discon
$382.99
Your recommended setup
Review items below — quantities update pricing automatically.
Item
Qty
Status
Price
Optional Add-Ons recommended
Services optional
Bundle Summary
Bundle Subtotal:
$0.00
Optional Add-Ons:
$0.00
Services:
$0.00
Total:
$0.00
Overview
SKU:
EFLOW6NX16D
Condition:
New
Availability:
Usually ships in 24 hours
Warranty
Lifetime Limited Warranty
Description
Altronix EFLOW6NX16D Power Supply/Charger with Fire Alarm Disconnect
The Altronix EFLOW6NX16D is a UL Listed power supply and charger designed for security and life safety systems requiring integrated fire alarm disconnect capability. This 8-output unit delivers 12/24VDC @ 4A per output from 120VAC 60Hz input, with 6A total maximum current draw. Built-in battery backup and fire alarm disconnect functionality make it suitable for applications where power sequencing and emergency disconnect are critical.
Key Features
- Fire alarm disconnect relay for emergency power shutoff compliance
- Integrated battery backup support with supervised charging
- Eight independent 12/24VDC outputs at 4A capacity
- AC fail, low battery, and battery presence supervision
- UL Listed for life safety and security installations
- 120VAC 60Hz input with 6A maximum current rating
- Lifetime Limited Warranty
Applications
- Access control systems with fire alarm integration
- Life safety power distribution requiring emergency disconnect
- Multi-zone security installations with battery backup
- Building automation systems with fire code compliance needs
Specifications
- Model: EFLOW6NX16D
- Input: 120VAC 60Hz
- Output: 12/24VDC @ 4A per output, 8 outputs total
- Maximum Current: 6A total
- Battery Backup: Yes
- Fire Alarm Disconnect: Yes
- Supervision: AC Fail, Low Battery, Battery Presence
- UL Listed
- Warranty: Lifetime Limited
Specifications
Product Type:
Power Supply/Charger
Approvals:
UL Listed
Input Voltage:
120VAC 60Hz
Max Current:
6A total
Number of Outputs:
8
battery_backup:
Yes
fire_alarm_disconnect:
Yes
Supervision:
AC Fail, Low Battery, Battery Presence
Output Voltage:
12/24VDC @ 4A
Warranty:
Lifetime Limited Warranty
