Overview

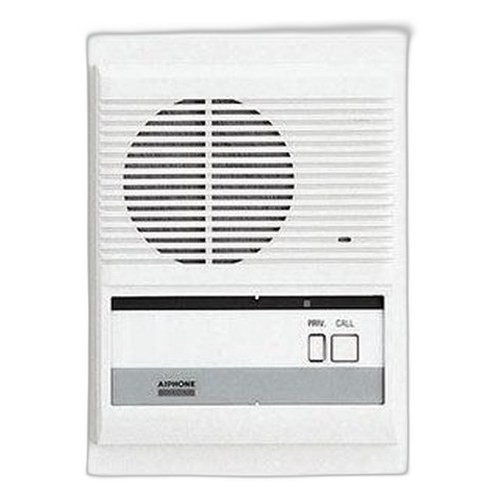

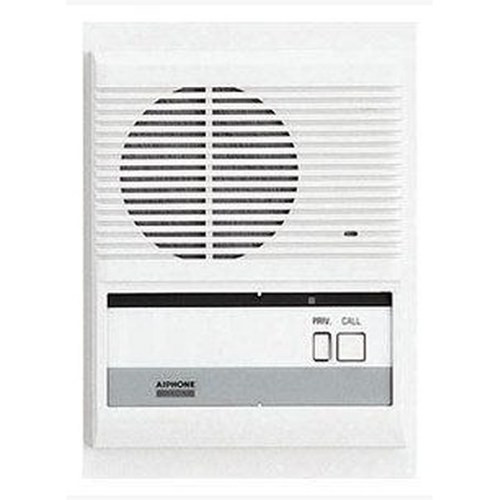

The Aiphone AX-BN is a semi-flush mounted indoor substation designed for integrated voice communication systems. Built with durable ABS plastic construction, this substation connects via standard Cat-5e wiring or 2-conductor cable, supporting runs up to 980 feet. The unit operates on PoE+ (802.3at) power, eliminating the need for dedicated power infrastructure at the substation location. The AX-BN incorporates a privacy feature that prevents unwanted monitoring from the master station, making it suitable for applications requiring controlled access to communication endpoints.

Key Features

• PoE+ Powered: 802.3at power delivery simplifies installation and reduces wiring complexity
• Hands-Free Communication: Automatic audio activation when the master station answers calls
• Privacy Feature: Blocks unwanted monitoring from master station, protecting communication privacy
• Semi-Flush Mount Design: Recessed installation option provides clean, integrated appearance in wall or ceiling installations
• Extended Wiring Support: Compatible with Cat-5e or 2-conductor wiring up to 980 feet in distance
• Durable ABS Plastic Construction: Robust material selection ensures reliable long-term operation in indoor environments

Integration & Compatibility

The AX-BN integrates with Aiphone AX Series master stations and control equipment. The unit supports connectivity with the AX-8M Audio Master (up to 8 master stations and 8 substations), the AX-8MV Audio/Video Master with button controls, and related AX Series components. Standard Cat-5e cabling infrastructure allows the AX-BN to be deployed across extended network runs, making it adaptable to diverse facility layouts. The semi-flush mounting accommodates both wall and ceiling installation scenarios, providing flexibility in substation placement throughout commercial or institutional environments.

Technical Specifications

Power: PoE+ (802.3at)
Communication Mode: Hands-free
Material: ABS plastic
Mount Type: Wall; Ceiling
Mount Style: Semi-flush
Wire Compatibility: Cat-5e or 2-conductor
Maximum Wire Distance: 980 feet

Jerry Tildsen

I've evaluated the AX-BN during several facility audio intercom rollouts, and it performs well as a controlled substation endpoint. The privacy feature is particularly valuable in environments where you need to restrict one-way monitoring from the master station—a requirement I see frequently in healthcare, corporate, and education deployments. The PoE+ power delivery removes a significant installation hurdle compared to auxiliary power runs.

Technical Highlights:

• Privacy Isolation: The built-in privacy feature blocks master station monitoring of the substation, ensuring communication control at the endpoint level
• Extended Reach: The 980-foot wire distance capability accommodates large facilities and campus-style deployments without requiring intermediate repeater infrastructure
• Hands-Free Operation: Automatic voice activation upon master call reduces user action requirements and supports accessible hands-free workflows

Deployment Considerations:

• Verify that your PoE+ switch or injector can reliably deliver 802.3at power across your planned wire run length; voltage drop becomes relevant beyond 200 feet
• Semi-flush mounting requires accurate rough-in preparation; confirm wall or ceiling void depth before ordering installation materials
• Cat-5e wiring is adequate for this application; 2-conductor cable is a legacy option but requires planning for future Cat-5e migrations
• The privacy feature is non-negotiable for restricted areas; document this requirement with facility stakeholders during system design to avoid post-deployment reconfiguration

The AX-BN delivers reliable hands-free communication with genuine privacy control—a combination I recommend when facility requirements demand endpoint autonomy. Pair it with an AX-8M or AX-8MV master for a scalable intercom backbone.
