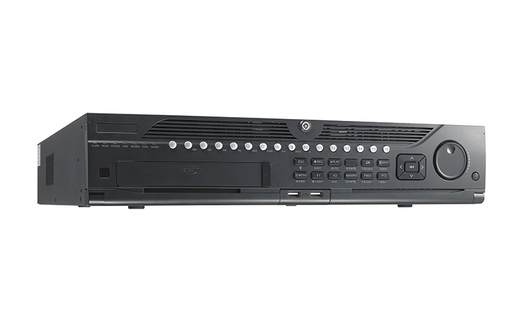

Hikvision DS-9616NI-I8-2TB
Hikvision DS-9616NI-I8-2TB
Hikvision DS-9616NI-I8-2TB
Product images are provided for reference and may not represent the exact model, configuration, or included components.

Overview

SKU: DS-9616NI-I8-2TB
UPC: 842571103601
Condition: New
Availability: No Longer Available
Warranty 5-year warranty
Write a Review 43% OFF

Hikvision DS-9616NI-I8-2TB 16-Channel 4K 2TB NVR

The Hikvision DS-9616NI-I8-2TB is a feature-rich network video recorder (NVR) designed for demanding business security applications. It delivers excep…

Add to cart for sale price
$1,900.00
$1,086.99
Ships same business day
In stock

Quantity:

Adding to cart… The item has been added
Compatibility guidance available for your deployment
Certified experts for pre and post-sales support
Authorized sourcing and documentation support
Shipping and lead-time confirmation before install
Bryan

Talk to Bryan

200+ hrs training • U.S - based

Certified Expert • 877-277-7147

Live Chat Call

Hikvision DS-9616NI-I8-2TB 16-Channel 4K 2TB NVR

$1,900.00
$1,086.99
Add to Cart

Your recommended setup

Review items below — quantities update pricing automatically.

Item Qty Status Price
Optional Add-Ons recommended
Services optional

Bundle Summary

Bundle Subtotal: $0.00
Optional Add-Ons: $0.00
Services: $0.00
Total: $0.00

Overview

SKU: DS-9616NI-I8-2TB
UPC: 842571103601
Condition: New
Availability: No Longer Available
Warranty 5-year warranty
Description

The Hikvision DS-9616NI-I8-2TB is a feature-rich network video recorder (NVR) designed for demanding business security applications. It delivers exceptional 4K resolution recording while remaining cost-effective with a pre-installed 2TB HDD. This NVR caters to organizations requiring high-definition surveillance footage for moderate recording durations, offering a balance between functionality and affordability. Additionally, the NVR incorporates advanced features like H.265+ video compression and mobile remote access, ensuring efficient storage management and convenient monitoring capabilities.

Key Features:

  • 16-channel recording support: Manage and record footage from up to 16 IP cameras simultaneously.
  • 4K Ultra HD resolution: Experience unparalleled image clarity and detail with 4K resolution recording (3840 x 2160 pixels).
  • 2TB pre-installed HDD: Store a good amount of video footage, suitable for moderate recording needs.
  • H.265+ video compression: Save significant storage space and bandwidth with cutting-edge H.265+ compression, reducing requirements by up to 70% compared to H.264.
  • Up to 12 MP resolution recording: Supports a wide range of camera resolutions for versatile deployment scenarios.
  • 8 SATA HDD interfaces and 1 eSATA interface: Provides flexibility for expanding storage capacity as needed.
  • RAID 0, 1, 5, 6, and 10 support: Enhances data redundancy and fault tolerance, protecting your recordings in case of drive failure.
  • Two-way audio support: Enables real-time audio communication through connected cameras.
  • HDMI and VGA outputs: Connect the NVR to displays for local monitoring and playback.
  • Mobile and remote access: Monitor your cameras and recordings remotely through the Hikvision mobile app or web interface.

Compatibility:

  • The Hikvision DS-9616NI-I8-2TB is compatible with a wide range of IP cameras, including Hikvision and third-party brands conforming to ONVIF standards.

Package Contents:

  • Hikvision DS-9616NI-I8-2TB NVR
  • 2TB HDD pre-installed
  • Power cord
  • USB mouse
  • Rack-mounting kit
  • Quick start guide

Summary:

The Hikvision DS-9616NI-I8-2TB NVR stands out as a cost-effective solution for businesses requiring high-definition surveillance with moderate storage needs. Its 4K recording capabilities, H.265+ compression, and remote access features offer exceptional value for price-conscious organizations.

Expert Analysis
Specifications
Frame Rate: 30fps
IP Video Input: 16-ch;Up to 12 MP resolution;*: 32 MP and 24 MP is only available for channel 1 when ultra HD resolution mode is enabled.
Incoming Bandwidth: 256 Mbps
Outgoing Bandwidth: 256 Mbps
Incoming Bandwidth (RAID Mode: 200 Mbps
Outgoing Bandwidth (RAID Mode: 200 Mbps
HDMI 1 Output: 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
HDMI 2 Output: 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
VGA 1 Output: 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
VGA 2 Output: 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Video Output Mode: HDMI 1 and VGA 1 provide simultaneous video output, and work as the main output; HDMI 2 and VGA 2 provide simultaneous video output, and work as the auxiliary output
CVBS Output: 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
Audio Output: 2-ch, RCA (Linear, 1 KΩ)
Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)
Decoding Format: H.265+/H.265/H.264+/H.264/MPEG4
Recording Resolution: 32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF;*: 32 MP and 24 MP is only available for channel 1 when ultra HD resolution mode is enabled.
Synchronous Playback: 16-ch
Decoding Capability: 1-ch@32 MP (30 fps)/2-ch@12 MP (20fps)/4-ch@8 MP (25fps)/8-ch@4 MP (30fps)/16-ch@1080p (30fps)
Dual-Stream Recording: Support
Stream Type: Video, Video & Audio
Audio Compression: G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2/PCM
Remote Connection: 128
Network Protocol: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
Network Interface: 2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
RAID Type: RAID0, RAID1, RAID5, RAID6, and RAID10 (at least 4 TB for each HDD)
Serial Interface: 1 RS-485 (full-duplex), 1 RS-232, 1 keyboard
SATA: 8 SATA interfaces supporting hot-plug
ESATA: 1 eSATA interface
Capacity: Up to 10TB capacity for each disk
Alarm In/Out: 16/4
USB Interface: Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
Power Type: 100 to 240 VAC, 50 to 60 Hz
Consumption: ≤ 30 W
Working Temperature: -10 °C to 55 °C (14 °F to 131 °F)
Working Humidity: 10% to 90%
Chassis: 2U chassis
Dimension (W × D × H: 445 × 465 × 92 mm ( 17.5"× 18.3" × 3.6")
Weight: ≤ 10 kg (22 lb)
FCC: Part 15 Subpart B, ANSI C63.4-2014
CE: EN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4
