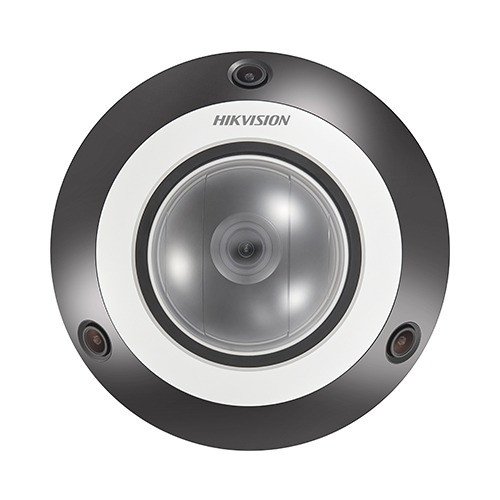

Hikvision DS-2PT3326IZ-DE3 6MP 3x2MP Multi-Sensor PanoVu Indoor Panoramic PTZ IP Camera

The Hikvision DS-2PT3326IZ-DE3 8MP Multi-Sensor PanoVu Mini Panoramic + PTZ Indoor IP Camera is a sophisticated surveillance solution that integrates multiple sensors with a Pan-Tilt-Zoom (PTZ) capability to provide an unparalleled panoramic view with the added benefit of focused detail when necessary. This camera system is designed to deliver comprehensive coverage with high-definition clarity, making it ideal for indoor environments such as retail spaces, offices, and lobbies where wide-angle monitoring and the ability to zoom in on specific points of interest are crucial. The innovative multi-sensor design captures expansive areas without the blind spots typical of conventional cameras, while the PTZ function allows for dynamic tracking of subjects or detailed examination of critical areas, all within a compact and discreet housing suitable for professional settings.

The DS-2PT3326IZ-DE3 stands out for its ability to seamlessly stitch together images from its multiple sensors, creating a cohesive panoramic view that enhances situational awareness. Coupled with its 8MP resolution, the camera delivers crisp, clear images, ensuring that no detail goes unnoticed. The integration of H.265+ compression technology optimizes storage and bandwidth use, making this camera a smart choice for systems where efficiency and high-quality imaging are paramount. Its indoor design is complemented by low-light capabilities and advanced analytics, such as motion detection and intrusion alarms, which automate monitoring tasks and enhance security operations.

Key Features

• Multi-Sensor Panoramic View: Offers a comprehensive 180° view by seamlessly combining images from multiple sensors.
• PTZ Functionality: Allows for detailed inspection and tracking within the panoramic field of view.
• High-Resolution Imaging: 8MP resolution provides clear and detailed images, ensuring critical moments are captured with precision.
• Advanced Compression: Utilizes H.265+ technology to reduce bandwidth and storage requirements without compromising video quality.
• Smart Detection Features: Includes motion detection, line crossing detection, and intrusion detection to automate and enhance security monitoring.

Compatibility

• Network Integration: Fully compatible with ONVIF standards for easy integration with existing IP-based security systems.
• Software Compatibility: Works seamlessly with Hikvision's iVMS-4200 software and Hik-Connect app for comprehensive management and remote monitoring.
• Storage Solutions: Supports both local storage (SD card) and network storage (NVR, NAS) options, compatible with H.265+ compression.

Specifications

• Resolution and Image Quality: 8MP total resolution with up to 1920x1080 resolution for PTZ and panoramic outputs.
• Sensor Type and Size: 1/2.8" Progressive Scan CMOS sensors for panoramic view; 1/2.8" sensor for PTZ.
• Lens: Fixed lenses for panoramic view; Varifocal lens for PTZ with optical zoom capability.
• Field of View (FoV): 180° horizontal field of view for panoramic; variable FoV for PTZ based on zoom level.
• Minimum Illumination: Color: 0.005 Lux @ (F1.6, AGC ON) for PTZ; B/W: 0.001 Lux @ (F1.6, AGC ON).
• Infrared (IR) Night Vision: Not applicable for this indoor model.
• Video Compression: H.265+, H.265, H.264+, H.264 to ensure efficient storage and streaming.
• Frame Rate: Up to 30 fps at full resolution.
• Audio Capabilities: Supports audio with optional external microphone and speaker.
• Storage Options: Built-in microSD/SDHC/SDXC slot, up to 256 GB.
• Power Supply: 12 VDC ± 25%, PoE (802.3af, class 3).
• Connectivity and Network Features: Ethernet 10/100M, supports Wi-Fi with optional module.
• Environmental Resistance: Designed for indoor use with a discreet and compact form factor.
• Software Features and Analytics: Motion detection, video tampering, network disconnect, IP address conflict, illegal login, etc.
• Integration Capabilities: ONVIF (Profile S, Profile G), ISAPI support.
• Mobile and Remote Access: Via iVMS-4200, Hik-Connect, and web browsers.

Package Contents

• Hikvision DS-2PT3326IZ-DE3 Camera Unit
• Installation Guide & Mounting Template
• Software CD-ROM
• Warranty Card

Summary

The Hikvision DS-2PT3326IZ-DE3 represents a significant advancement in indoor surveillance technology, combining broad panoramic coverage with the versatility of PTZ control. This camera is engineered for environments where comprehensive area monitoring and the ability to focus on specific details are equally important. With its high-resolution imaging, efficient data compression, and advanced analytics, the DS-2PT3326IZ-DE3 is an ideal choice for businesses looking to enhance their security infrastructure with a powerful, yet discreet, monitoring solution.
