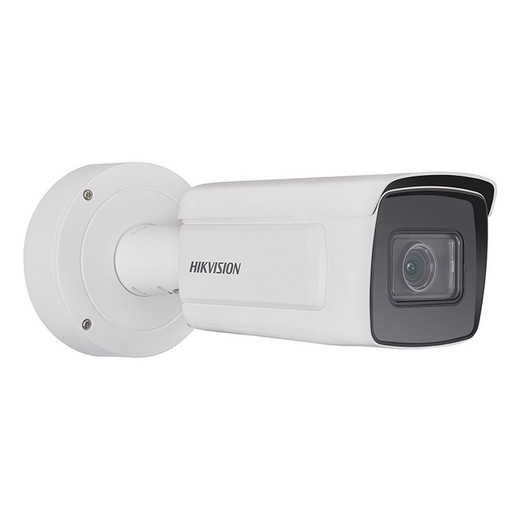

Hikvision DS-2CD5AC5G0-IZHS 12MP Outdoor Bullet Camera

Hikvision DS-2CD5AC5G0-IZHS 12MP Outdoor Varifocal Bullet IP Camera

The Hikvision DS-2CD5AC5G0-IZHS is a high-performance 12MP outdoor bullet camera designed for enterprise-grade surveillance deployments. With ultra-high resolution capture, intelligent analytics, and robust environmental durability, this camera delivers comprehensive security monitoring for commercial properties, industrial facilities, and critical infrastructure installations.

Key Features

• 12MP resolution (4000 × 3000) for exceptional detail and clarity
• Varifocal 2.8–12mm lens with 101° to 36.1° horizontal FOV
• Infrared night vision up to 50m with 850nm wavelength
• H.265+/H.264+ video compression for bandwidth and storage efficiency
• 120dB Wide Dynamic Range for challenging lighting conditions
• IP67/IK10 rated for outdoor durability and impact resistance
• PoE powered with dual power supply options (12VDC or PoE 802.3at)
• Multiple simultaneous streams with up to 5 custom stream profiles
• Advanced smart analytics: face detection, line crossing, intrusion detection, object removal
• Integrated microSD/SDHC/SDXC card slot up to 256GB

Technical Specifications

Imaging: The camera features a 1/1.7" Progressive Scan CMOS sensor with F1.2 aperture and adjustable shutter speed (1s to 1/100,000s), delivering exceptional low-light performance with 0.008 Lux color sensitivity. The 120dB WDR accommodates extreme contrast environments, while 3D DNR and image enhancement technologies (BLC, HLC, Defog, EIS) optimize video quality across varying conditions.

Video Management: Support for five independent video streams plus unlimited custom streams enables flexible client configurations and efficient bandwidth allocation. Main stream supports both H.265/H.264 and H.265+/H.264+ codecs with Region of Interest (ROI) and dynamic face tracking capabilities. The camera maintains 30fps at full resolution (60Hz mode) and supports scalable video coding for adaptive bitrate delivery.

Network & Security: Gigabit Ethernet connectivity with ONVIF, ISAPI, and SDK APIs ensures broad ecosystem integration. Support for HTTPS, IEEE 802.1X, IP filtering, and digest authentication provides enterprise-level network security. Up to 32 concurrent users with three privilege levels enable granular access control. Compatible with Hikvision management platforms (iVMS-4200, iVMS-5200, Hik-Central) and web browsers (Chrome, Firefox, Safari).

Durability: Operating temperature range of -30°C to 65°C (-40°C with -H variant) ensures reliable performance in extreme environments. IP67 enclosure and IK10 impact rating withstand weather exposure and vandalism attempts. The integrated heater (-H model) maintains operation in sub-zero conditions.

Applications

• Perimeter security and facility monitoring
• Traffic and transportation surveillance
• Critical infrastructure protection
• Retail and commercial property monitoring
• Campus and municipal security deployments

Jerry Tildsen

The DS-2CD5AC5G0-IZHS represents mid-to-high-end outdoor surveillance capability, positioned for organizations requiring superior resolution without flagship pricing. The 12MP sensor with varifocal optics balances flexibility and clarity, while H.265+ codec support directly addresses bandwidth constraints in large-scale deployments. Advanced smart event detection (face detection, intrusion, line crossing) enables rule-based alerting and reduces false positives, critical for SOCs managing multiple sites.

The 120dB WDR and F1.2 aperture combination handles challenging mixed-lighting scenarios common in industrial and transportation settings. PoE power delivery simplifies installation while the microSD backup ensures local redundancy in network outages. Native ONVIF compliance with multiple stream support facilitates hybrid-vendor VMS integration.

For organizations standardized on Hikvision or requiring 4K-equivalent detail at outdoor distances, this platform offers reliable performance and proven reliability in the IP camera market.

Product Documentation

📄 Download Product Datasheet (PDF)
