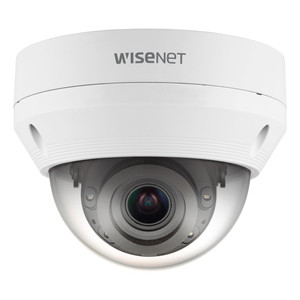

Hanwha QND-8080R 5MP PTZ Dome IP Camera

Hanwha QND-8080R 5MP Day/Night Indoor Vandal-Resistant PTZ Dome IP Camera

The Hanwha QND-8080R delivers professional-grade surveillance with 5-megapixel resolution and dynamic PTZ capabilities in a compact, vandal-resistant dome form factor. Engineered for corporate, retail, and institutional environments, this camera combines high-resolution imaging with intelligent monitoring features to provide comprehensive security coverage and rapid incident response.

Key Features

• 5MP resolution with 3.1x motorized varifocal zoom (3.2–10mm lens)
• Pan/Tilt/Rotate range: 350°/67°/355° for expansive coverage
• Day/Night functionality with auto ICR and IR LED illumination (20m range)
• 120dB Wide Dynamic Range (WDR) for balanced contrast in challenging lighting
• Vandal-resistant dome construction rated IP42
• PoE powered (IEEE 802.3af, Class 3) with low power consumption (6.6W typical)
• H.265/H.264 and MJPEG video compression with WiseStream II smart codec
• Integrated microSD card slot (up to 128GB) for edge storage and local backup
• Advanced motion detection, tampering alerts, and virtual analytics (intrusion, line crossing, area detection)
• ONVIF Profile S/G/T compliant with SUNAPI and Wisenet open platform support

Technical Highlights

The QND-8080R's 1/2.8" CMOS sensor captures full 5MP (2592×1944) video at 30fps, with flexible resolution modes from 4MP to VGA for bandwidth optimization. Its motorized varifocal lens delivers a 101° horizontal field of view when wide and narrows to 31° in telephoto mode, enabling both situational awareness and detailed identification. Minimum illumination of 0.015 Lux in black-and-white mode ensures visibility in near-darkness, while IR LED illumination provides supplementary night coverage without relying on external lighting.

The camera's 120dB WDR technology automatically balances exposure in high-contrast scenes—critical for monitoring areas with windows or mixed indoor/outdoor lighting. Dual-stream and triple-profile support accommodates multiple simultaneous users (up to 6 unicast connections) while smart codec technology reduces bandwidth without sacrificing image quality. Edge-based analytics detect motion across four configurable zones, identify tampering, and trigger alarm outputs or cloud notifications via email and FTP.

Security & Networking

Enterprise-grade security features include HTTPS/SRTP encryption, 802.1X network authentication, firmware encryption, and device certificate validation via Hanwha's private Root CA. Audit logs track all user access, system changes, and events. IPv4/IPv6 dual-stack support with DHCP, DDNS, and QoS ensures seamless network integration.

Applications

Ideal for office lobbies, retail checkout areas, educational facilities, data centers, and access control points where PTZ flexibility, vandal resistance, and reliable low-light performance are essential. Compact form factor (ø120.3×102.0mm, 430g) allows discreet ceiling or wall mounting with the SBP-122HMW bracket.

Eden Phillips

The QND-8080R strikes a practical balance between capability and cost-effectiveness for mid-market surveillance deployments. The 3.1x motorized zoom and 350° pan range enable flexible monitoring without multiple fixed cameras, while WDR handles mixed lighting scenarios common in commercial spaces. WiseStream II compression and edge storage reduce data center load, and ONVIF compliance ensures interoperability with third-party management platforms.

The IP42 rating provides dust and splash resistance appropriate for indoor environments, though outdoor use remains limited. Power efficiency and native PoE support simplify installation, making this camera suitable for businesses upgrading legacy analog systems or expanding IP surveillance infrastructure.
