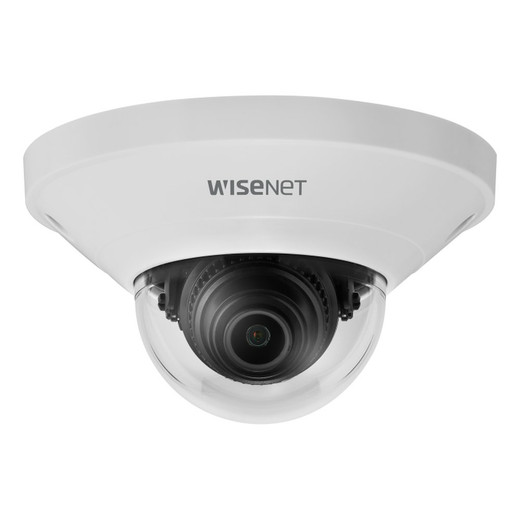

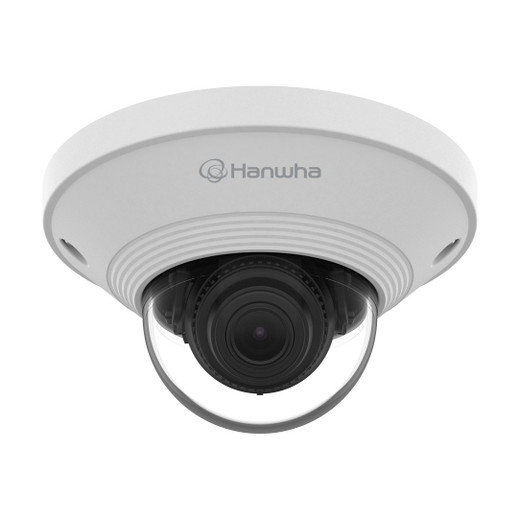

Hanwha QND-6021 2MP Day/Night Compact Dome Camera

Hanwha QND-6021 2MP Day/Night Compact Dome Camera

The Hanwha QND-6021 is a professional-grade 2MP dome IP camera engineered for indoor surveillance applications requiring compact form factors and reliable performance across varying light conditions. Delivering Full HD 1080p resolution at 30fps, this camera combines intelligent imaging technologies with efficient compression to meet the needs of modern security deployments in corporate offices, retail environments, and institutional facilities.

Key Features

• 2MP (1920×1080) CMOS sensor with 30fps H.264/H.265 video delivery
• 120dB Wide Dynamic Range (WDR) for balanced exposure in mixed lighting
• Fixed 4.0mm lens with 88° horizontal field of view and F1.6 aperture
• Advanced IR illumination with automatic day/night switching for 24/7 operation
• Super-compact dome design (Ø99.0×56.0mm) for discreet installation
• PoE powered (IEEE 802.3af, Class 2) with minimal 2.80W typical consumption
• Intelligent analytics: motion detection, defocus detection, tampering alerts, people counting
• Edge storage via microSD/SDHC/SDXC card (up to 128GB) with partition encryption
• IP42 and IK08 certified for dust and vandal resistance

Technical Highlights

The QND-6021's 1/2.8" CMOS imaging device with 0.03 Lux minimum illumination (F1.6, 1/30sec color mode) ensures clear capture in near-dark conditions without reliance on IR alone. WDR technology eliminates the need for manual exposure adjustment when scenes contain both bright windows and shadowed areas, automatically preserving detail across the full tonal range.

Video compression leverages H.265 and H.264 Main/High profiles alongside Hanwha's WiseStream II smart codec for adaptive bitrate management. H.265 encoding reduces file sizes by up to 50% compared to H.264, directly lowering storage and bandwidth costs. Multiple streaming profiles (up to 3) support simultaneous viewing at different resolutions and frame rates without server load penalty.

Motion detection spans four polygonal zones with configurable sensitivity; privacy masking includes six rectangular zones to obscure sensitive areas. The camera logs user access, system events, and audit trails with role-based access control via IP address restrictions and 802.1X network authentication. Secure communication defaults to HTTPS/SRTP with TLS encryption and firmware signing.

PoE (802.3af Class 2) power delivery eliminates the need for external adapters, simplifying installation to single cable runs. Typical power draw of 2.80W makes this camera suitable for non-PoE+ installations and long cable runs with budget-conscious power infrastructure.

Applications

Ideal for office lobbies, retail floors, hallways, and access points where compact mounting and full HD clarity are required. ONVIF Profile S/G/T compliance ensures integration with third-party VMS platforms. Hanwha's Wisenet open platform and SUNAPI HTTP API support custom integrations and edge analytics workflows.

Marty Allison

The QND-6021 fills a narrow but important niche: ultra-compact 2MP domes with professional imaging features. The combination of WDR, IR, and H.265 compression at sub-5W power consumption makes it exceptionally well-suited to dense deployments (e.g., retail chains, multi-floor offices) where cumulative power and switching capacity constrain camera count. The 120dB WDR spec is competitive for its class, though the fixed 4.0mm lens limits flexibility—field of view cannot be adjusted post-installation.

Motion detection across four zones and people counting via embedded analytics reduce reliance on external servers for basic event triggering. For integrators, the ONVIF compliance and Wisenet platform support simplify multi-vendor configurations. Firmware encryption and device certificate authentication (Hanwha Private Root CA) address baseline cybersecurity expectations.

The IP42/IK08 rating provides moderate protection; this is not a true outdoor or high-impact-resistant camera despite the spec sheet's durability label.

Product Documentation

📄 Download Product Datasheet (PDF)
