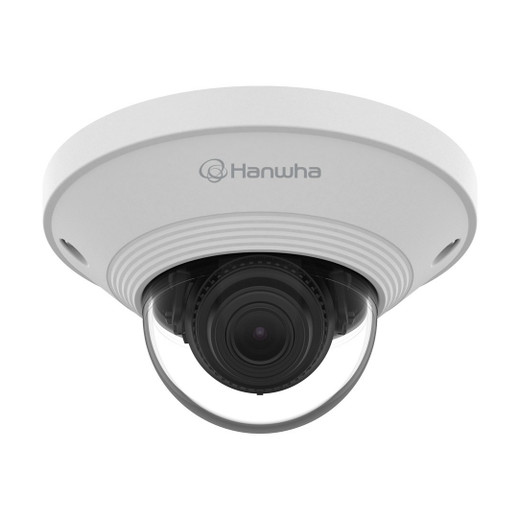

Hanwha QND-6011 2MP Indoor Dome IP Camera

Hanwha QND-6011 2MP Indoor Dome IP Camera

The Hanwha QND-6011 delivers professional-grade surveillance in an exceptionally compact form factor, ideal for discretely monitoring indoor environments from offices to retail spaces. This 2MP day/night dome camera combines full 1080p resolution at 30fps with advanced imaging technologies, ensuring clear, detailed footage in virtually any lighting condition.

Key Features

• 2MP (1920×1080) Full HD resolution at 30fps for sharp, fluid video
• 120dB Wide Dynamic Range (WDR) for balanced exposure in high-contrast scenes
• Auto day/night switching with electrical IR cut filter for round-the-clock monitoring
• Super-compact dome design (ø99.0×56.0mm) — minimal visual footprint
• Low light performance: 0.03Lux (F2.0) color sensitivity
• PoE powered (IEEE 802.3af, Class 2) — single cable installation
• Efficient H.265/H.264 and MJPEG compression with WiseStream II smart codec
• Integrated microSD card slot (up to 128GB) for local edge storage
• Motion detection (4 polygonal zones) and tampering detection with alert triggers
• IP42 and IK08 rated for durability and vandal resistance

Technical Highlights

Imaging & Optics: The QND-6011 employs a 1/2.8" CMOS sensor with a fixed 2.8mm lens (F2.0) and 114° horizontal field of view. Electronic image stabilization, LDC support, and advanced noise reduction (SSNR) ensure high-quality output even in challenging conditions. Multiple resolution options (640×480 through 1920×1080) optimize bitrate and storage requirements for diverse deployments.

Video & Compression: H.265 and H.264 Main/High profile encoding, combined with WiseStream II adaptive bitrate technology, substantially reduce storage and bandwidth consumption. Support for up to three simultaneous streaming profiles via unicast or multicast accommodates multiple concurrent viewers and recording configurations.

Networking & Security: Full ONVIF Profile S/G/T compliance ensures interoperability with standard VMS platforms. Dual authentication (Digest + brute-force prevention), 802.1X network authentication, HTTPS/SRTP encrypted communications, and firmware encryption protect against unauthorized access. Device certificates with Hanwha Private Root CA provide additional identity verification.

Analytics & Intelligence: Built-in defocus detection, motion detection, and tampering alerts enable proactive incident response. People counting analytics support business intelligence applications. Configurable privacy masking (6 rectangular zones) and video rotation options respect privacy while maximizing coverage.

Applications

Ideal for retail stores, office building common areas, hallways, reception desks, and small rooms where unobtrusive surveillance is paramount. The compact size, efficient power consumption (typical 2.80W), and robust feature set make it suitable for both small installations and large-scale deployments requiring cost-effective monitoring.

Karl Wilson

The QND-6011 represents an excellent balance of performance and practicality for mainstream indoor surveillance. Its 120dB WDR and low-light sensitivity (0.03Lux) handle typical office and retail lighting variations effectively. H.265 support is a significant advantage for managing storage costs over the camera's operational lifetime.

PoE Class 2 operation (max 4.80W) allows daisy-chaining from standard switches without infrastructure upgrades. ONVIF compliance and multiple API options (SUNAPI, Wisenet Open Platform) simplify integration into mixed-vendor environments. IP42/IK08 ratings, while modest, provide adequate protection against dust and light vandalism in controlled indoor settings.

The absence of pan/tilt/zoom functions is appropriate for fixed-coverage applications but limits adaptability post-installation. Edge storage via microSD is a practical failsafe against network outages. Overall, this camera excels as a reliable, compact, and cost-effective solution for organizations requiring dependable 1080p surveillance without premium pricing.

Product Documentation

📄 Download Product Datasheet (PDF)
