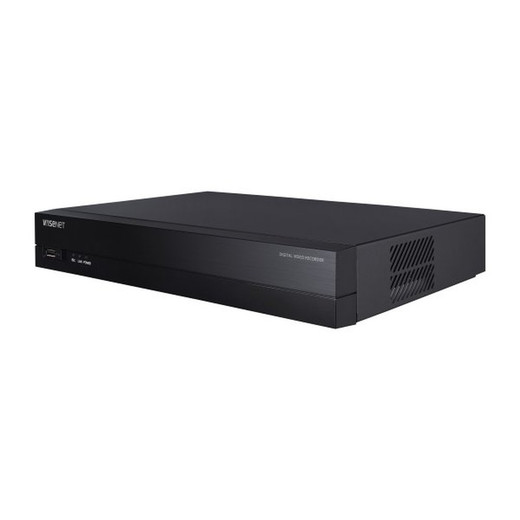

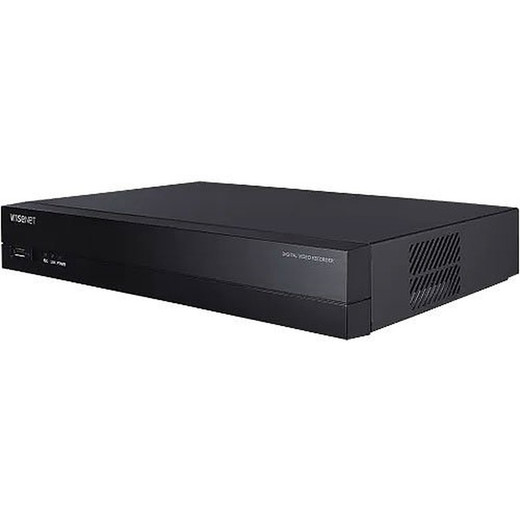

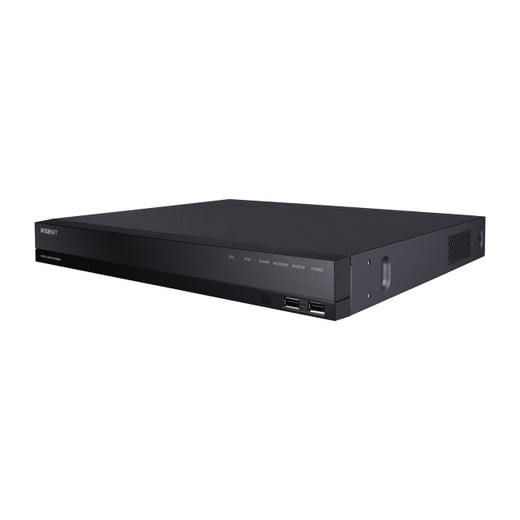

Hanwha HRX-435-8TB HD+ Pentabrid DVR AHD (up to 8MP)

Hanwha HRX-435-8TB Overview

The Hanwha HRX-435-8TB is a 4-channel pentabrid DVR recorder engineered for hybrid surveillance installations requiring flexible analog and network camera support. This DVR accepts AHD, HDTVI, HDCVI, CVBS analog inputs up to 8MP resolution, plus up to 6 total network IP cameras (2 additional channels), making it ideal for staged deployments or mixed camera infrastructure. The 8TB internal storage provides substantial on-board retention for continuous recording across multiple channels and resolutions.

Hanwha HRX-435-8TB Core Capabilities

• 5-in-1 input architecture: AHD (8MP, 5MP, 4MP, 1080p, 720p); HDTVI (8MP, 5MP, 4MP, 1080p, 720p); HDCVI (8MP, 5MP, 4MP, 1080p, 720p); CVBS (NTSC/PAL); IP (up to 8MP via SUNAPI/ONVIF)
• Recording performance: 8/8 fps @ 8MP analog, 12/12 fps @ 5MP analog per channel; maximum 30 Mbps recording bandwidth
• Compression: H.265, H.264, and MJPEG triple codec support for storage efficiency and playback flexibility
• Playback bandwidth: Up to 32 Mbps across 6 channels simultaneously (local monitor or CMS)
• Storage: 8TB pre-installed; expandable to 12TB total with two SATA slots (supports drives up to 6TB each)
• Dual display output: HDMI (3840×2160, 2560×1440, 1920×1080, 1280×1024, 1280×720) and VGA (1920×1080, 1280×1024, 1280×720) simultaneous output plus single BNC spot monitor
• Audio I/O: 4 audio inputs, 1 audio output
• Alarm control: 4 alarm inputs, 2 relay outputs, coaxial PTZ control support
• Mobile access: P2P service with QR code quick-connect for Wisenet mobile app deployment
• Live and recorded event search with manual, scheduled, and event-triggered recording modes (pre/post event capture, dual-track)
• Event detection: Video loss, motion detection, tampering; network camera analytics support (object detection, face detection, audio detection, virtual line crossing, enter/exit, passing, appearance/disappearance)
• Network protocols: SUNAPI (Wisenet proprietary), ONVIF compliance
• Maximum concurrent users: 4 simultaneous sessions (1 local, 3 remote); supports 6 channels local, 6 channels CMS, 4 channels Wisenet Mobile, 1 channel web browser

Hanwha HRX-435-8TB Deployment & Integration

Built for integrators managing mixed-signal environments, the HRX-435-8TB eliminates the need for separate analog and network recorders. Coaxial control enables direct PTZ camera steering over standard coax cable runs, reducing infrastructure cost in retrofits. ONVIF protocol support ensures compatibility with third-party IP cameras and network video management platforms
