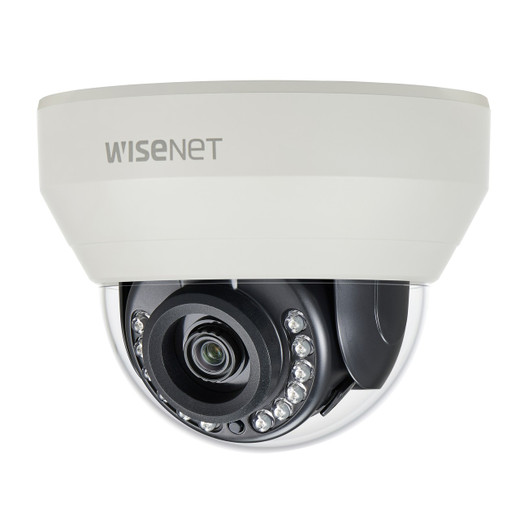

Hanwha HCD-7010RA HD+ 4MP IR indoor dome camera

Hanwha HCD-7010RA Overview

The Hanwha HCD-7010RA is a 4MP Wisenet HD+ indoor dome camera designed for budget-conscious surveillance deployments requiring reliable day/night imaging in controlled environments. This analog camera operates in both AHD and CVBS formats, delivering 2688×1520 resolution through a fixed 2.8mm lens with F1.8 maximum aperture. The HCD-7010RA is purpose-built for easy installation and plug-and-play operation, making it ideal for small to medium integrations where wired analog infrastructure is already in place.

Hanwha HCD-7010RA Key Features

• 4MP Resolution with CMOS Imaging: 1/3-inch 4MP CMOS sensor captures 2688×1520 effective pixels, delivering sharp detail in indoor surveillance applications.
• Dual Video Format Support: Native AHD output via BNC connector with additional CVBS output (2-pin connector) for installation flexibility and mixed-format deployment scenarios.
• 65-Foot IR Illumination Range: Built-in IR LEDs provide 20-meter (65.62-foot) viewable range in complete darkness, enabling around-the-clock monitoring without external lighting.
• True Day/Night with ICR: Automatic Day/Night (ICR) switching and manual white balance modes (ATW, AWC, Manual, Indoor, Outdoor presets) ensure color accuracy during daylight and responsive B/W imaging when illumination drops to 0 Lux with IR enabled.
• Low-Light Color Performance: Captures color video down to 0.26 Lux (F1.8, 1/30sec) without IR assistance, suitable for dimly lit indoor spaces.
• Enhanced Backlight Handling: User Backlight Compensation (BLC), HLC (High Light Compensation), and Dual Wide Dynamic Range (DWDR) manage challenging lighting conditions and prevent image washout.
• Motion Detection with Privacy Zones: Four-zone motion detection engine with two-zone privacy masking capability for targeted alerting and privacy compliance.
• 2D Digital Noise Reduction: 2DDNR processing smooths video while preserving detail, improving codec efficiency and reducing bandwidth consumption.
• Wide Horizontal Field of View: 107.48° horizontal, 59.67° vertical, and 122.01° diagonal field of view from the 2.8mm lens, covering large indoor areas with minimal fisheye distortion.
• Electronic Shutter Speed Control: Adjustable shutter range from 1/30 to 1/12,000 seconds (NTSC) or 1/25 to 1/12,000 seconds (PAL) for exposure tuning and motion artifact control.
• 12VDC Power with Low Consumption: Single 12VDC input with maximum 5W power draw ensures compatibility with standard surveillance power supplies and minimal heat generation.
• Extended Transmission Distance: Coaxial transmission distance up to 500 meters (1,640 feet) enables deployment across large facilities using existing analog cabling infrastructure.

Hanwha HCD-7010RA Integration and Deployment Considerations

The HCD-7010RA is designed for analog surveillance systems and does not support network protocols such as ONVIF or HTTP streaming. Integration is achieved through AHD DVR or hybrid video recorders that support Hanwha's proprietary ACP (Analog Camera Protocol) as well as standard CVBS systems. Compatible devices listed by the manufacturer include the SBP-300 series hybrid recorders and SPB/SPG-IND12 power supplies. This camera is rated for indoor use only and is not suitable for outdoor, semi-outdoor, or vandal-resistant deployments. Pan/tilt/rotate capability includes 0°–350° pan, 0°–67° tilt, and 0°–355° rotation ranges, though these are typically implemented through the mounting bracket rather than motorized head movement. Installation uses standard analog coaxial cabling, supporting mixed analog and hybrid recorder environments where legacy and modern infrastructure must coexist.

Hanwha HCD-7010RA Physical and Environmental Specifications

Dimensions: Ø110.1 × 86.1 mm (4.33 × 3.39 inches) compact dome form factor. Weight: 240g (0.53 lb). Color: Ivory polycarbonate housing. Operating Temperature: –10°C to +55°C (+14°F to +131°F) with 0–90% RH non-condensing humidity tolerance. This temperature range supports most climate-controlled indoor environments but is not suitable for unheated attics, freezing outdoor installations, or high-temperature industrial settings. Minimum object distance is 0.5 meters (1.64 feet), suitable for lobby, corridor, and interior perimeter coverage.
