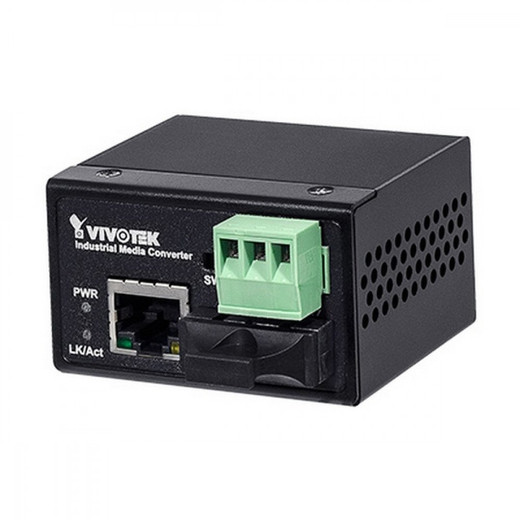

Vivotek AW-IHS-0200 Industrial 10/100M to 100M SC Media Converter -40°C to 75°C

Vivotek AW-IHS-0200 Industrial 10/100M to 100M SC Media Converter

The Vivotek AW-IHS-0200 is a rugged industrial media converter designed to bridge copper-based Ethernet networks with fiber optic infrastructure. This compact device transforms 10/100M RJ45 connections into high-speed 100M SC fiber links, enabling extended transmission ranges and superior signal integrity in electrically noisy industrial environments. Built for demanding outdoor and harsh operational conditions, the AW-IHS-0200 delivers reliable connectivity across temperature extremes from -40°C to 75°C.

Key Features

• Converts 10/100M Fast Ethernet to 100M SC multi-mode fiber (2 km range)
• Extended operating temperature range: -40°C to 75°C for extreme industrial environments
• IP40-rated aluminum housing with DIN-rail and wall-mount installation options
• IEEE 802.3/802.3u compliance with full-duplex flow control support
• LED indicators for power, link status, and speed monitoring
• Auto-MDI/MDI-X and auto-negotiation for seamless connectivity
• Ultra-low power consumption at just 2W
• Flexible power input: 18V-36VAC or 12V-60VDC

Technical Specifications

• Connectivity: 1x RJ45 Fast Ethernet port; 1x SC multi-mode fiber port (131nm wavelength)
• Performance: 14,880 pps @ 10Mbps; 148,000 pps @ 100Mbps
• Buffer Memory: 128 KB with store-and-forward transmission
• Dimensions: 59 x 49 x 36 mm; Weight: 0.08 kg
• Safety Certifications: CE, C-Tick, FCC, VCCI, LVD
• Included Accessories: Quick install guide, terminal block, DIN-rail brackets, wall-mount kit

Industrial Applications

Ideal for IP camera surveillance networks, network infrastructure expansion, and security system deployments requiring fiber connectivity in electromagnetically harsh environments. Perfect for outdoor installations, manufacturing facilities, transportation systems, and utility infrastructure where extended range and noise immunity are critical.
