Speco O4BM 4MP IP Bullet Camera 8-32mm Varifocal LPR

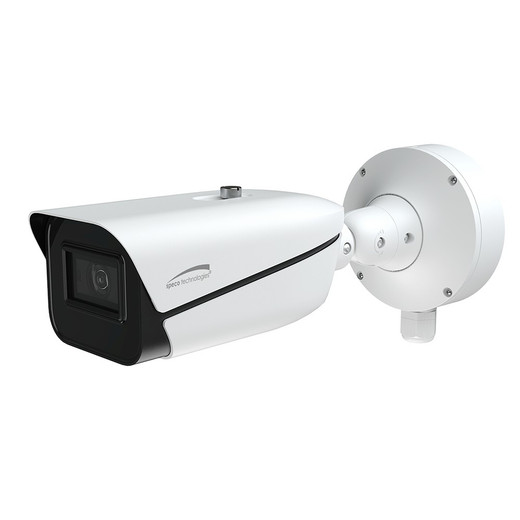

Speco Technologies O4BM 4MP IP Bullet Camera

Overview

The Speco Technologies O4BM is a 4MP fixed outdoor IP bullet camera designed for perimeter surveillance, traffic monitoring, and access control deployments. This model combines a motorized 8-32mm varifocal lens with advanced edge analytics—including license plate recognition (LPR), line crossing detection, intrusion detection, and face detection—in a compact, IP67-rated housing. Built for integration into ONVIF-compliant VMS platforms, the O4BM delivers true day/night imaging with 328 feet of infrared coverage and sophisticated video compression to maximize bandwidth efficiency across network surveillance systems.

When this is the correct choice

Select the O4BM when you need a single-camera solution for outdoor perimeter security with built-in LPR and behavioral analytics. This camera is ideal for traffic enforcement, parking facility monitoring, access gate documentation, and entrance/exit verification where license plate capture and intrusion alerts are required. The motorized lens enables remote zoom and focus adjustment, reducing on-site commissioning time. Its IK10 vandal rating and -40°F to 140°F temperature range make it suitable for harsh outdoor environments including industrial sites, toll plazas, and unmanned facilities.

When to choose a different model

If you require PTZ (pan-tilt-zoom) motor control beyond focus and zoom, consider a dedicated PTZ camera. For indoor-only applications where vandal resistance is not a concern, a standard fixed dome camera may reduce costs. If audio recording is critical to your deployment, verify two-way audio requirements separately, as this model includes microphone input only. For extreme low-light applications requiring minimal IR illumination bleed, review thermal or higher-sensitivity sensor alternatives.

Optics and field of view

The motorized 8-32mm varifocal lens (4x zoom range) allows remote adjustment of focal length and focus without physical site visits. This flexibility is especially valuable in fixed-position installations where initial zoom estimates change or seasonal vegetation impacts coverage. The varifocal design enables operators to optimize field of view for specific objects of interest—wide-angle for general perimeter coverage or telephoto for detailed license plate or facial feature capture at distance.

Imaging performance and low light

The O4BM uses a 1/1.79-inch CMOS sensor to capture 4MP resolution (2592×1520) at 30 fps in both day and night modes. True day/night functionality provides seamless switching between color (day) and high-sensitivity black-and-white (night) imaging without manual intervention. Advanced WDR (Wide Dynamic Range) processing manages scenes with extreme brightness variation—typical in backlighting scenarios or when headlights strike the camera. Infrared illumination extends coverage to 328 feet, enabling license plate recognition and facial detail capture in complete darkness. The combination ensures reliable image quality for evidence documentation across all lighting conditions.

Analytics and edge capabilities

Integrated edge analytics eliminate dependency on external AI servers for basic threat detection. The O4BM O4BM includes:

• License Plate Recognition (LPR): On-camera detection and classification of vehicle registration plates for automatic alerts and logging
• Line Crossing Detection: Alerts when objects cross a configurable virtual boundary—ideal for perimeter intrusion monitoring
• Intrusion Detection: Identifies unauthorized entry into defined zones and triggers immediate notifications
• Face Detection: Locates and flags human faces within the frame for targeted recording or alarm escalation

These analytics execute locally on the camera, reducing network bandwidth and processing latency while providing standalone operation if VMS connectivity is interrupted.

Video encoding and streaming

The O4BM supports H.265+ and H.264+ compression alongside MJPEG. H.265+ delivers up to 50% bandwidth savings compared to H.264 at equivalent quality—a critical advantage in multi-camera installations or bandwidth-constrained networks. Dual-codec support ensures compatibility with legacy and modern VMS platforms. 30 fps encoding at 4MP resolution maintains smooth motion for vehicle and pedestrian tracking while minimizing storage footprint.

Network and security

ONVIF Profile G compliance guarantees interoperability with standards-compliant management systems, NVRs, and VMS software. Wired Ethernet connectivity via PoE (802.3af) simplifies cabling—single Cat5e/Cat6 run supplies both network and power, eliminating separate 12V DC infrastructure. Standard cybersecurity practices should include network segmentation and credential rotation; consult your VMS documentation for authentication and encryption options.

Environmental and durability ratings

IP67 rating confirms dust and water ingress protection suitable for outdoor wall or pole mounting, vehicle wash bays, and wet environments. IK10 vandal rating provides resistance to deliberate impact and tampering—equivalent to 5 kg steel ball dropped from 40 cm height. Operating temperature range of -40°F to 140°F (-40°C to 60°C) supports deployment in Arctic, desert, and tropical climates without performance degradation. The white powder-coat finish blends with standard building architecture and reduces visual glare in certain light conditions.

Power and installation notes

PoE (802.3af) powering draws 11.5W maximum, staying within standard PoE injector and switch port budgets. Compact form factor (6.1 lbs) permits installation on standard L-brackets or pole mounts. Junction box inclusion simplifies field cabling termination. Remote motorized lens focus and zoom adjustment reduce commissioning visits, though initial aiming and angle setup require on-site access. Verify PoE switch capacity before deployment in multi-camera arrays.

What is included

• Speco Technologies O4BM camera head
• 8-32mm motorized varifocal lens
• Junction box for field termination
• Mounting hardware (standard wall/pole bracket compatibility)

Ted Perry

I evaluated the Speco O4BM during a recent multi-site traffic enforcement system deployment. The combination of on-camera LPR, line crossing, and intrusion detection reduces VMS processing overhead and provides reliable alerting even if the central system experiences connectivity loss. The motorized 8-32mm lens proved valuable during commissioning—we adjusted zoom remotely after initial installation rather than scheduling repeat site visits. The IK10 and IP67 ratings held up through a harsh winter installation with freeze-thaw cycles and direct water spray from building cleaning equipment.

Technical Highlights:

• License Plate Recognition: Native LPR analytics capture vehicle identifiers without external ALPR server dependency, improving response time for toll, parking, and security gate applications
• 328ft IR Range: Infrared illumination reaches beyond typical 100-150ft cameras, enabling license plate detail capture at distance and reducing overlap camera count in long-approach scenarios
• H.265+ Compression: Bandwidth savings allow larger archive retention on fixed NVR storage or reduce WAN bandwidth pressure in multi-site integrations
• Motorized Lens: Remote focus and zoom adjustment post-installation eliminates commissioning delays and supports seasonal coverage optimization

Deployment Considerations:

• Confirm PoE injector or switch supplies 802.3af power; at 11.5W draw, the O4BM fits standard PoE budgets, but verify aggregate camera load before final rack configuration
• Test LPR accuracy during commissioning under variable plate angles, illumination, and vehicle speeds specific to your site; license plate orientation and reflectivity affect recognition reliability
• Establish clear zone definitions for line crossing and intrusion detection rules during VMS integration to minimize false positives from shadows, reflections, or passing pedestrians outside intended perimeter zones

The O4BM delivers legitimate value in perimeter and traffic enforcement deployments where native edge analytics reduce central system load and licensing costs. The robust IP67/IK10 build and extended IR range make it suitable for unattended outdoor installations. Budget adequate commissioning time for analytics rule fine-tuning and lens optimization, as these tasks directly impact alert accuracy and evidence quality.
