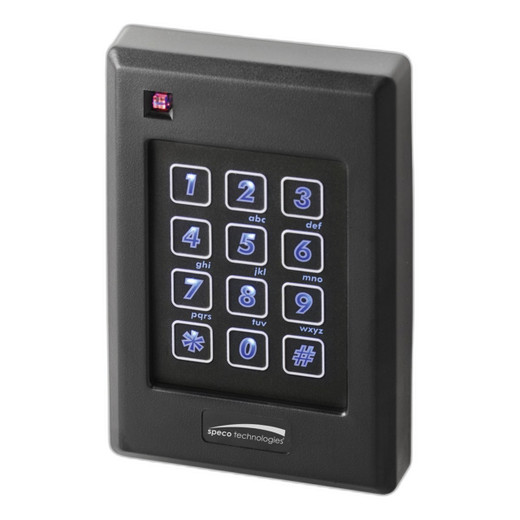

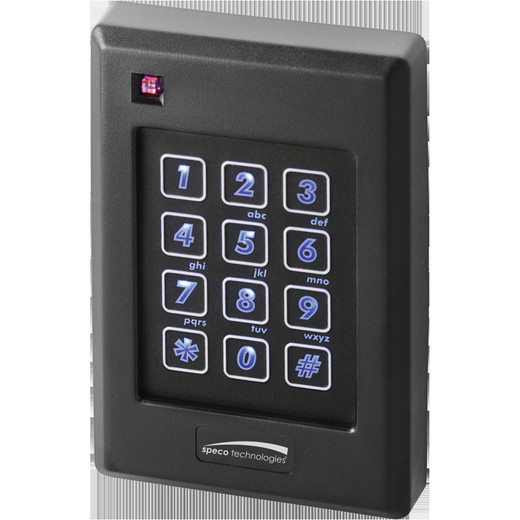

Speco ACSR64L Single Gang Keypad & Smart Card Reader
The Speco ACSR64L is a single-gang contactless smartcard reader and keypad designed for weather-resistant access control in indoor and outdoor environments. This IP67-rated device combines 13.56 MHz contactless smartcard technology with Bluetooth Low Energy (BLE) mobile credential support, enabling read ranges up to 15 feet for smartphone-based access. The ACSR64L operates on DC 12V power and integrates seamlessly into existing access control infrastructures via standard Wiegand 26-bit interface.
Key Features
- Dual-credential support: contactless smartcard and BLE-enabled mobile credentials
- Extended mobile read range of up to 15 feet (4.6 meters) for smartphone access
- IP67-rated weather-resistant design with epoxy-potted electronics and tamper-resistant construction
- Supports multiple RFID technologies including MIFARE Classic, DESFire EV1/EV2, UltraLight, and FIPS 201 (PIV Type A)
- Compact single-gang form factor (3" W × 4.6" H × 0.75" D) for wall box or flat surface mounting
- Four-state LED indicator (red, green, amber, off) with integrated audio beeper for credential feedback
- Low power draw: 60 mA typical, 250 mA peak at 12 VDC
- Wide operating temperature range of –31°F to 150°F (–35°C to +66°C)
Applications
- Perimeter access control gates and barrier entry points requiring weather resistance
- Hybrid credential environments supporting both legacy smartcard and modern mobile-based access systems
- Outdoor secure facilities including utility substations, cell tower sites, and industrial compounds
- Multi-credential campus or enterprise deployments with MIFARE or government-issued PIV credentials
- NDAA-compliant federal and defense contractor facilities
Specifications
- Model: Keypad and Long-Range Mobile-Ready Contactless Smartcard Reader
- MPN: ACSR64L
- Technology: Contactless smartcard (13.56 MHz) and Bluetooth Low Energy (2.4 GHz)
- Mounting: Single-gang wall box or flat surfaces
- Dimensions: 3" W × 4.6" H × 0.75" D (76 mm × 117 mm × 19 mm)
- IP Code: IP67
- Voltage: +8 to –14 VDC
- Current Draw: 60 mA typical; 250 mA peak @ 12 VDC
- Read Range: Smartcards up to 2 inches; Mobile credentials up to 15 feet (4.6 m)
- Interface: Wiegand 26-bit
- Operating Temperature: –31°F to 150°F (–35°C to +66°C)
- Certifications: FCC, ICC, CE, UL Standard 294; NDAA Section 889 Part B compliant
- Cabling: 24 AWG minimum, multiconductor stranded with foil shield
- Warranty: Lifetime
