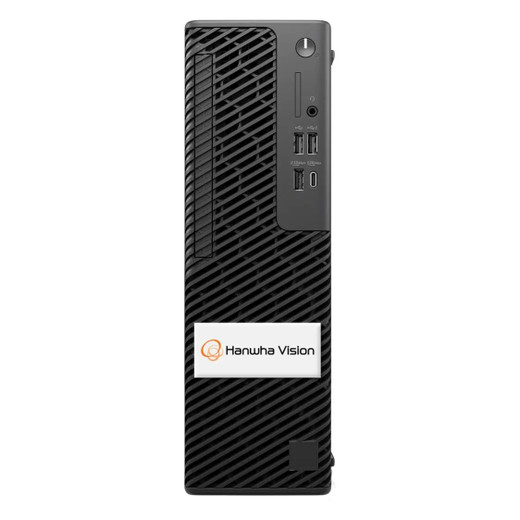

Hanwha WWT-P-5405L Small form factor WAVE Client Workstation for

Hanwha WWT-P-5405L Overview

The Hanwha WWT-P-5405L is a small form factor Wisenet WAVE Client Workstation purpose-built for multi-monitor surveillance control room deployments. This unit ships with Wisenet WAVE video management software pre-installed and configured, enabling immediate operational deployment without additional software licensing or setup overhead. The compact tower form factor (3.74" W × 11.53" D × 11.95" H) fits standard IT environments while delivering the processing power and video output capacity required for intensive surveillance monitoring.

Hanwha WWT-P-5405L Key Features

• Quad-Monitor Video Output Architecture: Nvidia A400 discrete GPU with four miniature DisplayPort (mDP) outputs, plus system HDMI and three additional DisplayPort outputs on the motherboard, supporting four simultaneous 1080p+ displays. Four mDP-to-HDMI adapters included for flexible monitor connectivity.
• Intel Core Ultra 5 Processor with 16GB System RAM: Current-generation compute platform delivers sustained performance for real-time video stream decoding, Wisenet WAVE client operations, and multi-camera live view without degradation during peak demand.
• Dual Network Interface (1GbE + 2.5GbE): Primary 1 Gigabit Ethernet NIC plus dedicated 2.5 Gigabit RJ45 network interface for bandwidth-intensive camera feed ingestion and independent management traffic segregation.
• 512GB M.2 SSD OS Drive: Fast NVMe storage for Wisenet WAVE application responsiveness and rapid system boot/recovery cycles typical in control room environments.
• Ubuntu 22.04 LTS Operating System: Stable long-term support Linux distribution with five-year maintenance window, reducing OS update cycles and ensuring platform stability in 24/7 surveillance operations.
• Wisenet WAVE Client Pre-loaded and Configured: Factory-installed video management software eliminates integration and licensing delays; system is surveillance-ready upon power-on.
• Comprehensive USB and Audio Connectivity: Front USB panel includes two USB 2.0, one USB 3.2 Gen2, and one USB 3.2 Gen 2x2 Type-C port; rear adds two USB 2.0, three USB 3.2 Gen1, and one USB 3.2 Gen2 Type-C. Front 3.5mm audio jack supports auxiliary input for intercom or notification audio.
• 360W 80 Plus Platinum Power Supply: Efficient power delivery with platinum-rated conversion; low thermal output suitable for enclosed equipment racks or compact installation spaces.
• Extended Operating Temperature Range: Rated 41°F to 113°F (5°C to 45°C) operational, supporting non-climate-controlled server rooms, communications closets, and field control stations.
• Five-Year Next Business Day Keep Your Hard Drive Warranty: Enterprise-class warranty with expedited hardware replacement and retention of failed storage media for forensic data recovery or compliance audits.
• Included Peripherals: USB keyboard and mouse bundled; eliminates procurement delays for basic operator interface hardware.
• Multiple Industry Certifications: UL, cUL, CB, and FCC compliance ensure regulatory acceptance in North American installations; 80 Plus Platinum energy certification reduces operating cost and environmental burden.

Hanwha WWT-P-5405L Integration & Compatibility

The WWT-P-5405L ships with Wisenet WAVE Client software pre-installed, enabling direct connection to Wisenet WAVE Recording Servers and third-party ONVIF-compatible network cameras. Dual network interfaces support segregated camera ingestion and management traffic, typical in enterprise surveillance architectures. USB ports accommodate standard security console peripherals (keyboards, mice, ID card readers, panic buttons) without external hubs. The system operates independently or as part of larger Wisenet WAVE deployments supporting distributed control room operations across multiple facilities.

Hanwha WWT-P-5405L Package Contents

• Hanwha WWT-P-5405L workstation chassis with Wisenet WAVE pre-installed
• Intel Core Ultra 5 processor with 16GB RAM and 512GB M.2 SSD
• Nvidia A400 GPU
• Four miniature DisplayPort to HDMI adapters
• USB keyboard
• USB mouse
