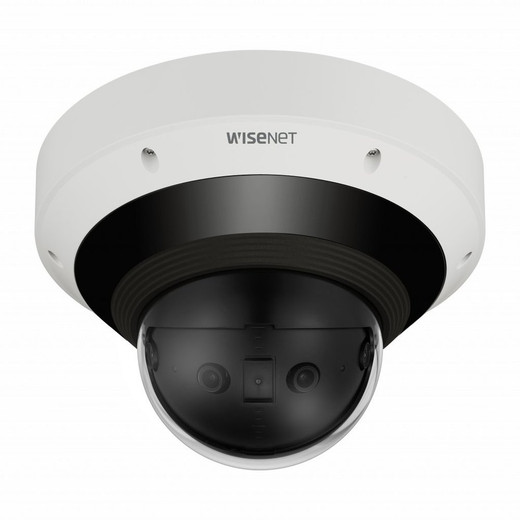

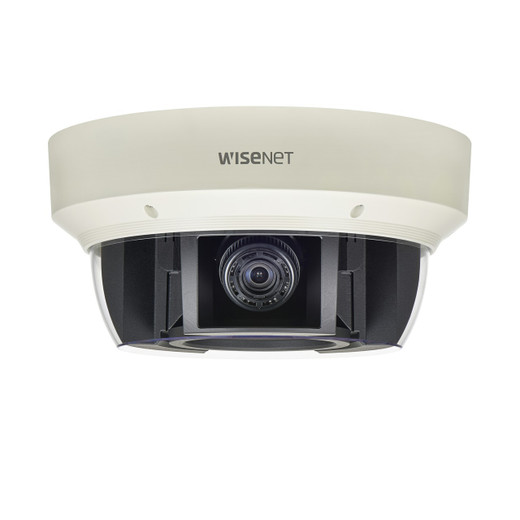

Hanwha PNM-9031RV RB Multi-Sensor Panoramic Dome

Hanwha PNM-9031RV RB Overview

The Hanwha PNM-9031RV RB is a multi-sensor panoramic dome camera engineered for wide-area outdoor surveillance in vandal-prone environments. Combining four 5MP sensors into a single stitched 15MP image at 20 fps, this rebox camera delivers a panoramic 192° field of view without requiring VMS integration for sensor fusion. The robust IP66/IK10 rating and NEMA4X compliance make it ideal for demanding deployments including correctional facilities, transportation hubs, and perimeter security.

Hanwha PNM-9031RV RB Key Features

• 15MP Panoramic Stitched Image: Four independent 5MP sensors are seamlessly combined and streamed as a single panoramic scene at 192° field of view and 20 fps, eliminating mosaic viewing and blind spots across wide coverage zones.
• Triple Codec Support with WiseStream II: H.265, H.264, and MJPEG compression with Hanwha WiseStream II technology enables intelligent bandwidth optimization and flexible storage efficiency without sacrificing image quality.
• Exceptional Dynamic Range: 120dB WDR (Wide Dynamic Range) captures detail in both bright and shadowed areas simultaneously, critical for scenes with mixed indoor/outdoor lighting or high-contrast backlit scenarios.
• IR Illumination to 49.2 Feet: Built-in infrared viewable length of 15m (49.2 feet) provides reliable night-vision coverage, extending surveillance capability through complete darkness without visible light pollution.
• Vandal-Resistant Design: IP66 environmental sealing and IK10 impact resistance protect against water ingress, dust, and physical tampering. NEMA4X stainless-steel enclosure rating ensures durability in saltwater and corrosive environments.
• Embedded Analytics and Sound Classification: On-board video intelligence including heatmap generation and sound classification capabilities enable edge-based event detection and reduce false alarms without external analytics servers.
• Bidirectional Audio: Built-in audio input and output support two-way voice communication, enabling remote deterrence, announcements, or emergency response coordination directly from connected management systems.
• Dual MicroSD Card Slots: Two independent microSD card slots with storage capability support local backup recording, redundancy, and offline archival without requiring external NAS infrastructure.
• PoE+ and 12V DC Power Options: PoE+ (802.3at) delivery simplifies installation and centralizes power management; 12V DC alternative supports legacy systems and outdoor installations without PoE infrastructure.
• Enterprise-Grade Security: TPM 2.0 module with FIPS 140-2 Level 2 certification ensures cryptographic integrity, secure firmware validation, and compliance with federal security standards for critical infrastructure and government deployments.

Hanwha PNM-9031RV RB Integration and Compatibility

The PNM-9031RV RB supports ONVIF standards for broad VMS ecosystem compatibility. Multi-sensor panoramic architecture requires no special VMS integration—all four sensors are automatically stitched and delivered as a single RTSP stream, compatible with standard surveillance management platforms including Milestone Xprotect, Genetec Security Center, and other ONVIF-compliant systems. Ethernet 10Base-T/100Base-TX/1000Base-TX connectivity ensures flexible network deployment in both managed enterprise and remote outdoor configurations.
