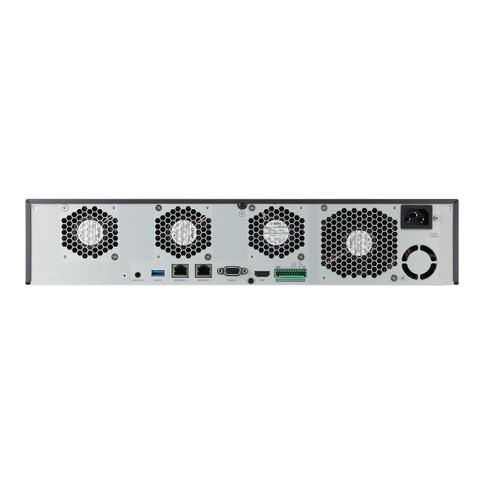

Hanwha XRN-1620SB1 RB Overview
The Hanwha XRN-1620SB1 RB is a 16-channel embedded Linux NVR designed for high-resolution IP camera surveillance installations. This Intel-based rebox delivers 32 MP recording capability with support for multiple compression standards, making it suitable for enterprise and mid-to-large deployments requiring unified video management across 16 networked camera inputs with integrated PoE power distribution.
Hanwha XRN-1620SB1 RB Key Features
- 32 MP Recording and Display Support: Captures video up to 32 MP resolution with H.265 codec at 15 fps, 12 MP at 30 fps, and 8.3 MP at 50 fps in FHD clone mode, enabling forensically rich video archive and real-time monitoring of high-resolution feeds.
- 16 Integrated PoE/PoE+ Ports with 200W Budget: All 16 camera inputs include built-in PoE+ (802.3at) power delivery rated at 200W total, eliminating the need for external PoE injectors or midspans in standard installations.
- Flexible Compression Standards (H.265, H.264, MJPEG): Records in H.265 for bandwidth-efficient storage, H.264 for broad compatibility, and MJPEG for motion-only scenarios, with simultaneous dual-stream recording capability to serve different playback and archival requirements.
- 140 Mbps Recording Bandwidth and 32 Mbps Playback: Handles continuous recording across all 16 channels at 140 Mbps aggregate throughput, with independent 32 Mbps playback bandwidth supporting parallel retrieval without impacting live recording.
- Dual Video Output Monitors (HDMI and VGA): FHD output via HDMI and VGA in clone mode allows independent display of the same 16-channel view across two monitors, or UHD single-monitor mode via HDMI for higher-resolution local playback and evidence review.
- Advanced Display Layouts (Dynamic, Virtual, Clone, Expand): Supports up to 16-division dynamic layout in clone mode and up to 9-division expand mode for flexible multi-camera monitoring, with frame rates up to 240 fps at 1080p and 480 fps at D1 resolution in clone mode.
- Comprehensive Event Triggering and Actions: Records based on alarm input, video loss, camera events (sensor, motion detection, video analytics, defocus, audio), dynamic events, and user events, with action responses including email, event push notifications, PTZ presets, alarm output, FTP upload, and SUNAPICommand integration.
- AI Search and Fisheye Dewarping: Provides intelligent search capabilities for Wisenet AI cameras and real-time fisheye dewarping on both web interface and CMS platforms, enabling efficient video forensics and expanded field-of-view management.
- Quad Concurrent Users with Up to 64 Remote Playback Channels: Supports 4 simultaneous users (1 local, 3 remote) with up to 64 concurrent playback channels per remote user (16 channels local, 16 per remote user), enabling multi-operator access during investigations and routine monitoring.
- ONVIF and SUNAPI Protocol Support: Certified ONVIF compliance ensures interoperability with third-party cameras and VMS platforms; native SUNAPI support integrates with Hanwha ecosystem devices and legacy systems.
- Web UI 2.0 (No Plugin Required) and CMS Compatibility: Browser-based management without Java applets or plugins reduces deployment overhead; supports integration with Hanwha CMS platforms for centralized multi-site management.
- Automatic Recovery Backup (ARB) and Recording Modes: Includes automatic recovery backup functionality with support for normal continuous, dual-stream, schedule-based (continuous and event-triggered), and event-triggered recording (with pre- and post-event buffers), plus manual bookmarking for critical incidents.
Hanwha XRN-1620SB1 RB Integration and Compatibility
The XRN-1620SB1 RB integrates with Hanwha Wisenet cameras and third-party IP cameras via ONVIF and SUNAPI protocols. It supports up to 4 simultaneous local and remote users, with remote playback accessible via web UI 2.0 (plugin-free). The unit accepts camera event triggers (motion detection, video analytics, sensor input, defocus detection, audio events) and supports advanced search across recorded content using Wisenet AI analytics when paired with AI-capable cameras. Event-triggered actions include email notification, FTP upload, PTZ preset control, and buzzer/alarm output for rapid incident response integration.
