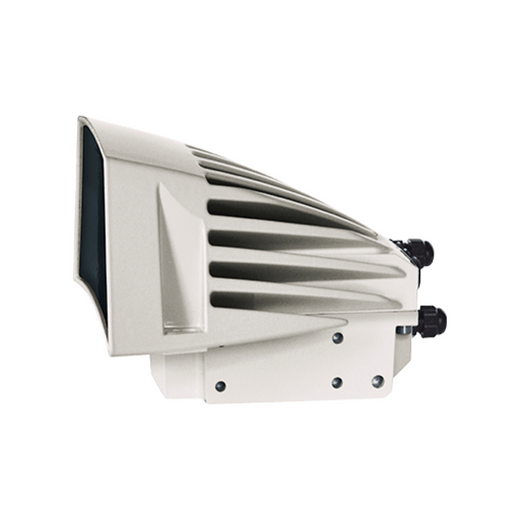

Pelco IRN30A9AS00 940nm Covert IR Illuminator 30-Deg AC

Pelco IRN30A9AS00 – IR Illuminator

Pelco IRN30A9AS00 is a covert 940 nm IR illuminator with a 30-degree beam and approximately 80 m maximum range, powered from 100–240 Vac wide-range mains input. Connects directly to AC mains without a separate DC power supply. At 940 nm, output is invisible to the human eye for covert perimeter monitoring. NDAA Section 889 compliant.

The 30-degree beam covers a moderate arc suited for matching wide-to-medium angle camera fields of view across parking areas, building approaches, and fence lines. Mount co-axially with or adjacent to the paired camera. At 940 nm, camera sensor efficiency drops significantly versus 850 nm—verify the paired camera delivers usable imagery at the intended range. For low-voltage installations, the IRN30B9AS00 operates on 24 Vac or 12/24 Vdc. For wider coverage, the 60-degree IRN60A9AS00 broadens the beam. For maximum range, the 10-degree IRN10A9AS00 reaches approximately 140 m.

Key Specifications

• Wavelength: 850 nm

Integration and Compatibility

Engineered for seamless integration with Pelco camera systems, this accessory supports professional installation workflows and enterprise-grade deployment standards. Built to withstand the environmental demands of commercial and industrial surveillance applications. NDAA Section 889 compliant for government and regulated installations.

Warranty and Support

Backed by a 1-year warranty, this product is supported by Pelco's global service network and authorized distributor channels. Enterprise customers benefit from priority technical support and streamlined RMA processes through authorized reseller partners.
