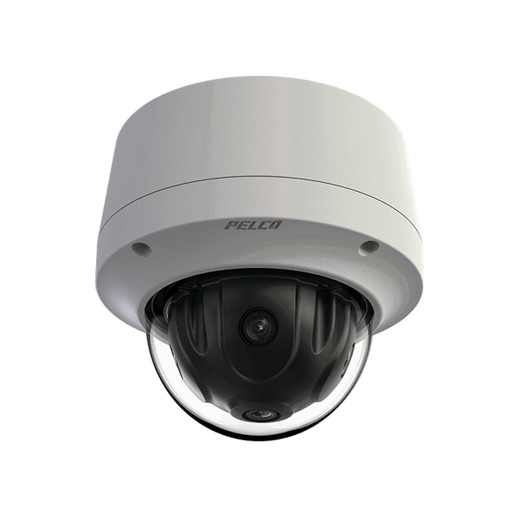

Pelco IMM12027-E-BASE Optera 12MP 270-Degree Panoramic

Pelco IMM12027-E-BASE – Professional Accessory

Pelco IMM12027-E-BASE is an Optera outdoor panoramic camera delivering 12MP aggregate resolution across a 270° field of view using four independent 3MP rectilinear sensors. Each sensor has its own lens, producing undistorted video without fisheye de-warping—yielding higher effective pixel density than a single-sensor panoramic of equivalent total resolution. The “BASE” suffix indicates this is the base hardware unit without bundled VMS licenses.

H.264/H.265 streaming with corridor mode support on each sensor. PoE+ powered. NDAA Section 889 compliant. Corner-mount and wall-mount positions maximize the 270° coverage arc for perimeter and building-corner applications.

For full 360° coverage from a center-mount position, select the IMM12036-E-BASE instead. Both share the same Optera platform and base hardware. VideoXpert and third-party ONVIF-compatible VMS platforms support the four independent streams natively.

Key Specifications

• Sensor Configuration: 4x3MP sensors
• Field of View: 270°
• Lens: 2.7mm f/2.5
• Frame Rate: 12.5 fps full resolution
• Power: PoE+
• Video Compression: H.264
• ONVIF Compliance: ONVIF Profile S; Profile T; Profile G
• Ingress Protection: IP66; IP67
• Operating Temperature: -40C to +60C

Integration and Compatibility

Engineered for seamless integration with Pelco camera systems, this accessory supports professional installation workflows and enterprise-grade deployment standards. Built to withstand the environmental demands of commercial and industrial surveillance applications. NDAA Section 889 compliant for government and regulated installations.

Warranty and Support

Backed by a 5-year warranty, this product is supported by Pelco's global service network and authorized distributor channels. Enterprise customers benefit from priority technical support and streamlined RMA processes through authorized reseller partners.
