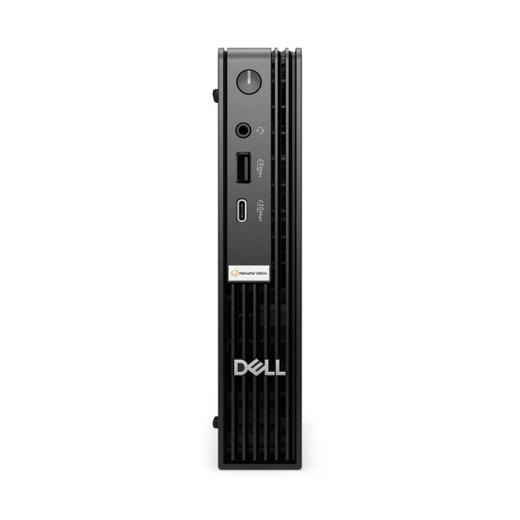

Hanwha WWT-P-7205ML Micro form factor WAVE Client Workstation for

Hanwha WWT-P-7205ML Overview

The Hanwha WWT-P-7205ML is a micro form factor WAVE client workstation designed for Wisenet WAVE video management system deployment in control rooms and integration environments. This compact system runs Ubuntu 22.04 LTS and delivers dual monitor support through dual HDMI and single DisplayPort outputs, making it suitable for operator workstations and distributed VMS client installations where space and thermal efficiency are constraints.

Hanwha WWT-P-7205ML Key Features

• Preloaded Wisenet WAVE Client: Ships with Wisenet WAVE video management system client and tools factory-installed and pre-configured, eliminating deployment setup time.
• Dual Monitor Output Support: Delivers video to two monitors simultaneously via 2x HDMI rear connectors and 1x DisplayPort rear connector, enabling multi-camera monitoring and operator workflow optimization.
• Intel Core Ultra 7 Processor: 6th generation Intel Core Ultra 7 architecture provides multi-threaded performance for concurrent VMS client operations, live view streaming, and event management tasks.
• 16GB DDR5 Memory: Sufficient RAM for stable, lag-free operation of Wisenet WAVE client software and multi-camera live view without performance degradation.
• 512GB M.2 SSD OS Drive: Single internal M.2 SSD form factor OS drive provides fast boot and responsive system performance with no mechanical drive latency.
• Ubuntu 22.04 LTS Operating System: Long-term support Linux distribution ensures security patch availability through April 2032, reducing lifecycle replacement frequency in production deployments.
• 2.5 GbE Network Interface: Single 2.5 Gigabit Ethernet RJ45 connector supports high-bandwidth camera streams and VMS server communication without bottlenecking.
• Micro Form Factor Chassis: Compact 1.42" W × 7.01" D × 7.17" H design (3.09 lbs) fits standard rack shelves, wall mounts, or under-monitor placement in space-constrained control rooms.
• Comprehensive I/O Connectivity: Front panel includes 1x USB 3.2 Gen1, 1x USB 3.2 Gen2 Type-C, and 1x 3.5mm universal audio jack. Rear provides 2x USB 2.0 and 2x USB 3.2 Gen1 ports for peripherals and external storage.
• Included Peripherals: Keyboard and mouse included, reducing total cost of ownership and ensuring compatibility-tested input devices for immediate deployment.
• Wide Operating Range: Operates reliably in controlled environments from 50°F to 95°F (10°C to 35°C) with 20–80% non-condensing humidity tolerance, suitable for indoor control room deployment.
• International Safety Certifications: Holds UL, cUL, CB, and FCC certifications, meeting North American and global electrical safety standards for institutional and commercial deployment.

Hanwha WWT-P-7205ML Integration & Compatibility

The WWT-P-7205ML integrates seamlessly into Wisenet WAVE VMS infrastructures as a client workstation. Ubuntu 22.04 LTS provides ONVIF compliance and standard Linux networking tools for integration with enterprise monitoring ecosystems. The system ships with Wisenet WAVE client pre-installed, eliminating software licensing delays and reducing integration effort. Standard 2.5 GbE Ethernet supports both direct-attach and switched network deployment. Multi-monitor output capability allows integration into dual-display operator console layouts where camera grid layouts and event dashboards demand separate screen real estate.

Hanwha WWT-P-7205ML Package Contents

• WWT-P-7205ML micro form factor workstation chassis
• USB keyboard
• USB mouse
• 90W adapter (4.5mm barrel connector)
