Frame Rate:
30fps
Sensor Type:
Approx. 1/2.8 type CMOS image sensor
Scanning Area:
5.12 mm (H) × 3.84 mm (V) {3/16 inches (H) × 5/32 inches (V)}
Minimum Illumination:
Color : 0.03 lx (30IRE, F1.3, 1/30s) Color : 0.04 lx (50IRE, F1.3, 1/30s) BW : 0.02 lx (50IRE, F1.3, 1/30s) BW : 0 lx (50IRE, F1.3, 1/30s with IR LED)
White Balance:
ATW1/ ATW2/ AWC
Shutter Speed:
[60 fps mode] 1/60 Fix to 1/10000 Fix [30 fps/ 15 fps mode] 1/30 Fix to 1/10000 Fix [50 fps mode] 1/50 Fix to 1/10000 Fix [25 fps/ 12.5 fps mode] 1/25 Fix to 1/10000 Fix
Maximum Shutter:
[60 fps mode] Max. 1/4000 s to Max. 16/30 s [30 fps/ 15 fps mode] Max. 1/4000 s to Max. 16/30 s [50 fps mode] Max. 1/4000 s to Max. 16/25 s [25 fps/ 12.5 fps mode] Max. 1/4000 s to Max. 16/25 s
Intelligent Auto:
On/Off
Super Dynamic:
On/Off (Range : 0 to 31)
Dynamic Range:
Max. 132 dB (Super Dynamic: On, Level: 31)
Adaptive Black Stretch:
The level can be set in the range of 0 to 255.
Back Light Compensation/High Light Compensation:
BLC (Back light compensation) / HLC (High light compensation) / Off (Range : 0 to 31) *only when Super Dynamic/ Intelligent Auto: Off
Fog Compensation:
On/Off (Range : 0 to 8) *only when Intelligent Auto / Auto contrast adjust: Off
Maximum Gain (AGC:
The level can be set in the range of 0 to 11.
Color/BW (ICR:
Off/ On(IR Light Off)/ On(IR Light On)/ Auto1(IR Light Off)/ Auto2(IR Light On)/ Auto3(SCC)
IR Illumination:
High/ Middle/ Low/ Off Maximum irradiation distance: 70 m {Approx. 230 ft} (30IRE)* 50 m {Approx. 164 ft} (50IRE) * Converted value
Digital Noise Reduction:
The level can be set in the range of 0 to 255.
Video Motion Detection (VMD:
On/ Off, 4 areas available
Scene Change Detection (SCD:
On/ Off, 1 area available
Audio Detection:
On/ Off
AI Sound Classification:
Selectable from Gunshot, Yell, Vehicle horn, Glass break
AI Anaytics:
AI Video Motion Detection, AI Privacy Guard, AI Face Detection, AI People Detection, AI Vehicle Detection, AI Non mask Detection, AI Occupancy Detection, AI Scene Change Detection
Privacy Zone:
On/Off, Up to 8 zones available Color: gray/white/blue/green/red/black, or mosaic
VIQS:
On/Off, Up to 8 zones available
Image Rotation:
0° (Off)/ 90°/ 180° (Upside-down)/ 270°
Image Stabilizer:
On/Off, Available only in the 30 fps mode
Camera Title (OSD:
On/Off Up to 40 characters, Up to 2 lines (alphanumeric characters, marks)
Optical Zoom:
3.1x (Motorized zoom / Motorized focus)
Extra Zoom:
max 12.4x (3.1x - 12.4x when resolution is 640x360)
Focal Length:
2.9 mm – 9 mm {1/8 inches – 11/32 inches}
Angular Field of View:
[16:9 mode] Horizontal： 33 ° (TELE) - 103 ° (WIDE) Vertical： 19 ° (TELE) - 55° (WIDE) [4:3 mode] Horizontal： 33 ° (TELE) - 103 ° (WIDE) Vertical： 25 ° (TELE) - 75° (WIDE)
Maximum Aperture Ratio:
1:1.3(WIDE) - 1:2.5(TELE)
Focus Range:
0.3 m {11-13/16 inches} - ∞
Aperture Range:
F1.3 - close
DORI Detect (25ppm / 8ppf:
48.9m {160.3ft} (WIDE) 207.4m {680.5ft} (TELE)
DORI Observe (62.5ppm / 19ppf:
19.5m {64.1ft} (WIDE) 83.0m {272.2ft} (TELE)
DORI Recognize (125ppm / 38ppf:
9.8m {32.1ft} (WIDE) 41.5m {136.1ft} (TELE)
DORI Identify (250ppm / 76ppf:
4.9m {16.0ft} (WIDE) 20.7m {68.1ft} (TELE)
System on Chip (SoC:
Ambarella CV52
Adjusting Angle (Fixed camera:
Horizontal (PAN) angle: -194°to +166° Vertical (TILT) angle: -30°to +85° Azimuth (YAW) angle: ±100°
GUI / Setup Menu Language:
English, Italian, French, German, Spanish, Portuguese, Russian, Chinese, Japanese
Browser:
Microsoft Edge, Firefox, Google Chrome
Network IF:
10BASE-T/100BASE-TX, RJ45 connector
Resolution (16:9:
[16:9 mode (60fps mode)] [16:9 mode (50fps mode)] 3072x1728*/ 2560x1440 [16:9 mode (30 fps mode)] [16:9 mode (25 fps mode)] 3072x1728*/ 2560x1440/ 1920x1080/ 1280x720/ 640x360/ 320x180
Resolution (4:3:
[4:3 mode (60 fps mode)] [4:3 mode (50 fps mode)] 3072x2304*/ 2560x1920 [4:3 mode (30 fps mode)] [4:3 mode (25 fps mode)] 3072x2304*/ 2560x1920/ 1280x960/ 800x600/ VGA/ 400x300/ QVGA
H.265/H.264 Transmission Mode/Type:
[Transmission Mode] Transmission priority: Constant bit rate/ VBR/ Frame rate/ Best effort [Transmission Type] Unicast port (AUTO)/ Unicast port (MANUAL)/ Multicast
JPEG (MJPEG) Image Quality:
10 steps: 0(SUPER FINE) - 9(LOW)
Audio Compression Method:
G.726 (ADPCM): 16 kbps/ 32 kbps G.711: 64 kbps AAC-LC: 64 kbps/ 96 kbps/ 128 kbps
Audio Transmission Mode:
Off / Mic (Line) input / Audio output / Interactive (Half duplex) / Interactive (Full duplex)
Supported Protocol (IPv6:
TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP, SNMPv1/v2/v3, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ, FTP, SFTP, LLDP, MQTT
Supported Protocol (IPv4:
TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, SNMPv1/v2/v3, UPnP, IGMP, ICMP, ARP, IEEE 802.1X, DiffServ, SRTP, FTP, SFTP, LLDP, MQTT
No. of Simultaneous Users:
Up to 14 users (Depends on network conditions)
SD Memory Card:
microSDXC memory card: 64 GB, 128 GB, 256 GB, 512 GB microSDHC memory card: 4 GB, 8 GB, 16 GB, 32 GB microSD memory card: 2 GB
Mobile Terminal Compatibility:
iPad / iPhone (iOS 8.0 or later), AndroidTM terminals
ONVIF®Profile:
G / S / T / M
Alarm Source:
3 terninals input, VMD alarm, SCD alarm, Command alarm, Audio detection alarm
Alarm Actions:
SDXC/SDHC/SD memory recording, E-mail notification, HTTP alarm notification Indication on browser, TCP alarm notification output
Audio Input:
ø3.5 mm stereo mini jack
Audio Output:
ø3.5 mm stereo mini jack (Audio output is monaural.) Output impedance: Approx. 600 Ω (unbalanced) Output level: –20 dBV
External I/O Terminals:
ALARM IN1 (Alarm input 1/ Black & white input/ Auto time adjustment input) (x1) ALARM IN2 (Alarm input 2/ ALARM OUT) (x1) ALARM IN3 (Alarm input 3/ AUX OUT) (x1)
Safety:
UL (UL62368-1), c-UL (CSA C22.2 No.62368-1), CE, IEC62368-1
EMC:
FCC (Part15 ClassA), ICES-003 ClassA, EN55032 ClassA, EN55035
Power Source and Power Consumption:
[Power Source] DC12 V *4, PoE+ (IEEE802.3at compliant) [Power Consumption] DC12 V ：1.2 A／ Approx. 14.2 W PoE+ DC 54 V ：260 mA／ Approx. 14.0 W（Class 4 device）
Ambient Operating Temperature:
-40 °C to +55 °C {-40 °F to +131 °F} (Power On range: -30 °C to +55 °C {-22 °F to +131 °F})
Ambient Operating Humidity:
10 % to 100 % (no condensation)
Water and Dust Resistance:
IP66/ IP67 (IEC 60529), Type 4X (UL50E), NEMA 4X compliant
Shock Resistance:
50J(IEC 60068-2-75 compliant), IK10(IEC62262)
Wind Resistance:
Up to 40 m/s {approx. 89 mph}
Dimensions:
ø154 mm × 105 mm (H) {ø6-1/16 inches ×4-1/8 inches (H)} Dome radius 42 mm {1-21/32 inches} (excluding an attachment for the conduit portion)
Mass (approx:
Approx. 1.1 kg {2.43 lbs} (excluding an attachment for the conduit portion)
Finish:
Main body: Aluminum die cast, i-PRO white Outer fixing screws: Stainless steel (Corrosion-resistant treatment) Dome cover: PC resin, Clear(with ClearSight coating)

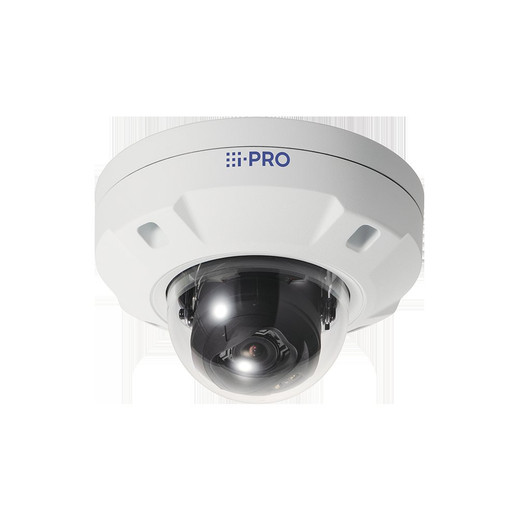

Product Type:
Dome
Connectivity:
Wired
Night Vision:
IR
Power Type:
PoE+
PoE Class:
4
Form Factor:
Dome
IP Rating:
IP66, NEMA 4X
Vandal Rating:
IK10
Compatibility:
ONVIF
Resolution:
5MP
Video Compression:
H.265, H.264, MJPEG
Audio Support:
Yes
IR Distance:
70m
Built-in IR:
Yes
Day/Night:
Yes
Analytics:
Facial Recognition
Storage Support:
microSD
Outdoor Ready:
Yes
Signed Firmware:
Yes
HTTPS Encryption:
Yes
Operating System:
Android
Image Stabilization:
Yes
Secure Boot:
Yes
