Frame Rate:
25/30fps
Sensor Type:
Approx.1/2.8 type CMOS image sensor
Scanning Area:
5.59 mm (H) × 3.15 mm (V) {7/32 inches (H) × 1/8 inches (V)}
Minimum Illumination (Color:
Color : 0.22 lx (30IRE, F2.1, 1/30s) Color : 0.32 lx (50IRE, F2.1, 1/30s)
Minimum Illumination (B&W:
BW : 0.13 lx (50IRE, F2.1, 1/30s) BW : 0 lx (50IRE, F2.1, 1/30s with IR LED)
White Balance:
ATW1/ ATW2/ AWC
Maximum shutter:
30 fps mode: Max.1/10000s to Max.16/30s 25 fps mode: Max.1/10000s to Max.16/25s
Intelligent Auto:
On / Off
Super Dynamic:
On / Off (Range : 0 to 31) *1
Dynamic Range:
Max.120 dB (Super Dynamic : On, Level : 31)
Back Light Compensation/ High Light Compensation:
BLC (Back light compensation) / HLC (High light compensation) / Off *only when Super Dynamic / Intelligent Auto : Off
Fog Compensation:
On / Off (Range : 0 to 8) *only when Intelligent auto / Auto contrast adjust : Off)
Maximum Gain (AGC:
The level can be set in the range of 0 to 11.
Color/BW (ICR:
Off / On (IR Light Off) / On (IR Light On) / Auto1 (IR Light Off) / Auto2 (IR Light On) / Auto3 (SCC)
IR Illumination:
High/ Middle/ Low/ Off Maximum irradiation distance : 21 m {Approx. 69 ft} (30IRE)* 15 m {Approx. 49 ft} (50IRE)
Digital Noise Reduction:
The level can be set in the range of 0 to 255.
Video Motion Detection (VMD:
On/ Off, 4 areas available
Scene Change Detection (SCD:
On/ Off, 1 area available
Privacy Zone:
On/ Off, up to 8 zones available
VIQS:
On/ Off, up to 8 zones available
Camera Title (OSD:
On/ Off, Up to 40 characters, Up to 2 Lines (alphanumeric characters, marks)
Optical Zoom:
1x
Extra zoom:
Max 3.0 x (when resolution is 640x360)
Focal Length:
2.4mm {3/32inches}
Angular Field of View:
[16:9 mode] Horizontal : 123°, Vertical : 69° [4:3 mode] Horizontal : 92°, Vertical : 69°
Maximum Aperture Ratio:
1 : 2.1
Focus range:
0.5 m {19-11/16 inches} – ∞
Aperture range:
F2.1
DORI Detect (25ppm / 8ppf:
22.2m {73.0ft}
DORI Observe (62.5ppm / 19ppf:
8.9m {29.2ft}
DORI Recognize (125ppm / 38ppf:
4.4m {14.6ft}
DORI Identify (250ppm / 76ppf:
2.2m {7.3ft}
System on Chip (SoC:
Ambarella S3LM
Adjusting Angle:
Horizontal (PAN) angle : -45° to +45° Vertical (TILT) angle : 0 to +90°, Azimuth (YAW) angle : -90° to +90°
GUI / Setup Menu Language:
English, Italian, French, German, Spanish, Portuguese, Russian, Chinese, Japanese
Browser:
Microsoft Edge, Firefox, Google Chrome
Network IF:
10BASE-T/100BASE-TX, RJ45 connector
Resolution (16:9:
[16:9 mode(30 fps mode)] [16:9 mode(25 fps mode)] 1920×1080/ 1280×720/ 640×360/ 320×180
Resolution (4:3:
[4:3 mode(30 fps mode)] [4:3 mode(25 fps mode)] 1280×960/ VGA/ QVGA
H.265/H.264 Transmission Mode / Type *2:
[Transmission Mode] Constant bit rate / VBR / Frame rate / Best effort [Transmission Type] Unicast port (AUTO) / Unicast port (MANUAL) / Multicast
JPEG (MJPEG) Image Quality:
10 steps: 0(SUPER FINE) - 9(LOW)
Audio Compression Method:
G.726 (ADPCM) : 16 kbps / 32 kbps G.711 : 64 kbps AAC-LC : 64 kbps / 96 kbps / 128 kbps
Supported Protocol (IPv6:
TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP, SNMPv1/v2/v3, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ, LLDP, FTP, SFTP, MQTT
Supported Protocol (IPv4:
TCP/IP, UDP/ IP, HTTP, HTTPS, SSL/TLS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, SNMPv1/v2/v3, UPnP, IGMP, ICMP, ARP, IEEE 802.1X, DiffServ, SRTP, LLDP, FTP, SFTP, MQTT
No. of Simultaneous Users:
Up to 14 users(Depends on network conditions)
Mobile Terminal Compatibility:
iPad / iPhone (iOS 8.0 or later), AndroidTM mobile terminals
SDXC/SDHC/SD Memory Card (Option:
microSDXC memory card: 64 GB,128 GB,256 GB,512 GB microSDHC memory card: 4 GB,8 GB,16 GB,32 GB microSD memory card: 2 GB
ONVIF®Profile:
G / S / T
Alarm Actions:
SDXC/SDHC/SD memory recording, E-mail notification, HTTP alarm notification Indication on browser, TCP alarm notification output
Safety:
UL (UL62368-1), c-UL (CSA C22.2 No.62368-1), CE, IEC62368-1
EMC:
FCC (Part15 ClassA), ICES-003 ClassA, EN55032 ClassA, EN55035
Power Type:
PoE
Power (Max:
PoE DC 48V: 180mA / approx. 8.6W (Class 0 device)
Ambient Operating Temperature:
0 °C to +40 °C (32 °F to 104 °F)
Ambient Operating Humidity:
10 to 90 % (no condensation)
Dimensions:
ø104 mm x 51 mm (H) {ø4-3/32 inches x 2 inches (H)}
Mass (approx:
Approx. 280 g {0.62 lbs}
Finish:
Main body : ABS resin, i-PRO white Dome section : PC resin, Clear

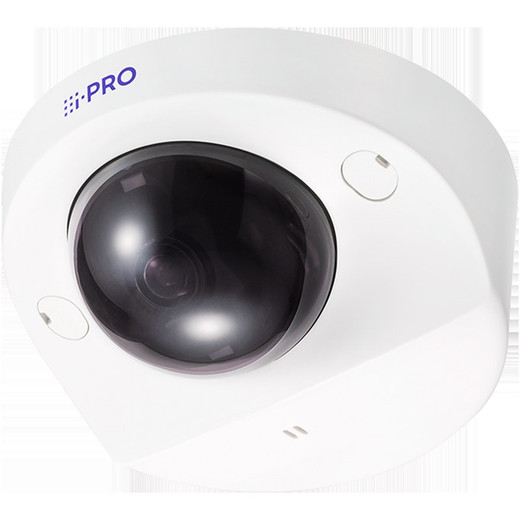

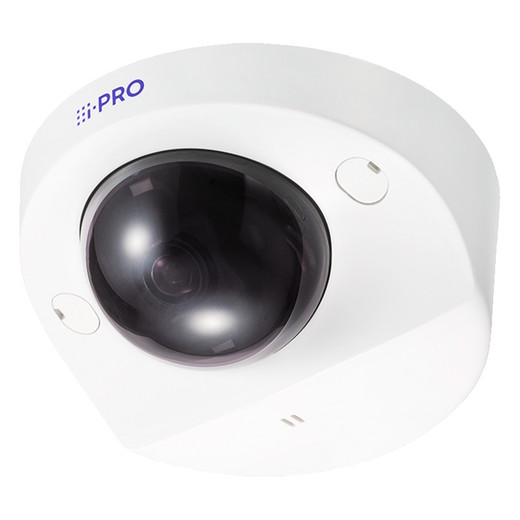

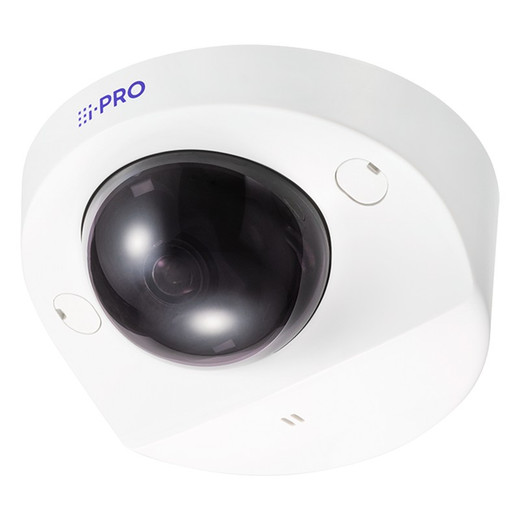

Product Type:
Dome
Connectivity:
Wired
Night Vision:
IR
PoE Class:
2
Form Factor:
Dome
Compatibility:
ONVIF
Resolution:
2MP
Video Compression:
H.265, H.264, MJPEG
Audio Support:
Yes
IR Distance:
15m
Built-in IR:
Yes
Day/Night:
Yes
Storage Support:
microSD
HTTPS Encryption:
Yes
Operating System:
Android
Image Stabilization:
Yes
