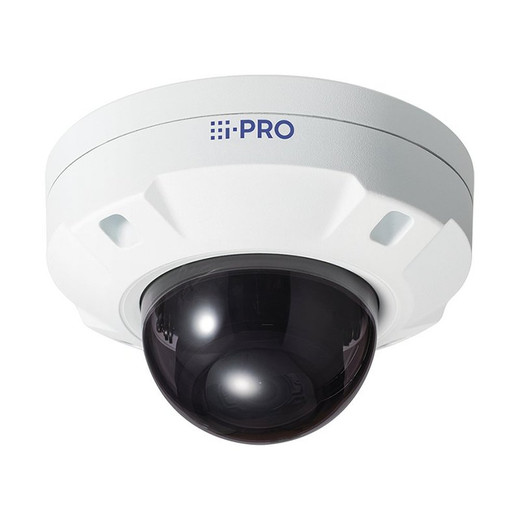

i-PRO WV-S2536LGNA Overview
The i-PRO WV-S2536LGNA is a 2MP (1080p) outdoor vandal-resistant dome network camera engineered for perimeter security, building entrances, and high-traffic surveillance deployments. This camera combines robust physical protection with embedded AI analytics, FIPS 140-2 Level 3 secure cryptographic processing, and NDAA compliance—making it suitable for federal, enterprise, and integrator-driven installations requiring certified security and threat detection at the edge.
i-PRO WV-S2536LGNA Key Features
- 2MP (1080p) CMOS Sensor with 1/2.8" Format — Delivers sharp detail capture across standard surveillance scenes; 5.57 mm (H) × 3.13 mm (V) scanning area provides balanced field coverage without excessive distortion.
- Built-in IR-LED Night Vision (70m / 230ft Range) — Integrated infrared LEDs enable full-color operation down to 0.018 lux (30IRE) and black & white operation at 0 lux with IR engaged, ensuring 24/7 visibility without external illuminators.
- IP66 and IK10 Rated Vandal-Resistant Dome — Sealed against dust and high-pressure water jets (IP66); withstands direct impact and abuse (IK10), meeting EN 62262 mechanical protection standards for exposed outdoor environments and accessible mounting locations.
- Edge AI Analytics Engine (Up to 2 Apps) — Supports simultaneous deployment of two AI analytic applications at the camera edge, enabling real-time object detection, behavior analysis, and scene intelligence without backend processing overhead.
- FIPS 140-2 Level 3 SecureElement (EdgeLock® SE050F NXP®) — Hardware-based cryptographic module protects encryption keys and secure boot, ensuring tamper resistance and compliance with federal information security requirements.
- NDAA Compliant Camera — Certified for use in federal and government procurements; no blacklisted components or supply-chain restrictions.
- H.265, H.264, and MJPEG Codec Support — Flexible compression options optimize bandwidth and storage; H.265 reduces file size vs. H.264 while maintaining quality, critical for multi-camera deployments.
- Advanced Dynamic Range Processing — Maximum 144 dB dynamic range (Super Dynamic mode, Level 31) with adaptive black stretch and highlight/backlight compensation handle high-contrast scenes (glossy entry doors, windows, mixed sun/shadow).
- Configurable Motion Detection and Scene Change Detection — Embedded VMD and SCD reduce false alarms from weather and lighting shifts; integrate with NVR/VMS for rule-based recording and alerts.
- Wind Resistance Up to 40 m/s (89 mph) — Dome structure maintains optical and mechanical integrity during severe weather; suitable for coastal, rooftop, and high-wind perimeter deployments.
- Compact Aluminum Die-Cast Housing (1.1 kg, 154 × 105 mm) — Lightweight and corrosion-resistant construction; fits standard dome cutout installations without excessive bracket reinforcement.
- Intelligent Auto, White Balance, and Fog Compensation — Automatic exposure, color, and image enhancement adapt to changing conditions; fog compensation improves visibility in haze without manual tuning.
i-PRO WV-S2536LGNA Integration & Compatibility
The WV-S2536LGNA supports standard Ethernet 10Base-T/100Base-TX network connectivity and operates within ONVIF-based VMS ecosystems. Edge AI analytics are processed locally, reducing latency and bandwidth; integrators can leverage the camera's motion detection and scene change detection outputs to trigger NVR recording rules, alerts, and third-party automation. Flexible frame rate options (60, 50, 30, 25, 15, or 12.5 fps) and shutter speed range (1/4000 s to 16/30 s or 16/25 s depending on mode) allow tuning for sports/traffic analysis or low-light surveillance. Secure boot and signed firmware protect against unauthorized modifications; FIPS 140-2 Level 3 compliance ensures cryptographic operations meet federal standards for government and enterprise deployments.
