Frame Rate:
60fps
Sensor Type:
Approx. 1/2.8 type CMOS image sensor
Scanning Area:
5.57 mm (H) × 3.13 mm (V) {7/32 inches (H) × 1/8 inches (V)}
Minimum Illumination (Color:
Color : 0.007 lx (30IRE, F1.3, 1/30s) / Color : 0.009 lx (50IRE, F1.3, 1/30s)
Minimum Illumination (B&W:
BW : 0.006 lx (50IRE, F1.3, 1/30s) / BW : 0 lx(50IRE, F1.3,1/30s with IR LED)
White Balance:
ATW1/ ATW2/ AWC
Shutter Speed:
[60 fps Mode] 1/60 Fix to 1/10000 Fix, [30fps/15fps mode] 1/30 Fix to 1/10000 Fix [50 fps Mode] 1/50 Fix to 1/10000 Fix, [25fps/12.5fps mode] 1/25 Fix to 1/10000 Fix
Intelligent Auto:
On / Off
Super Dynamic:
On / Off, The level can be set in the range of 0 to 31.
Dynamic Range:
Max.144 dB (Super Dynamic : On, Level 31)
Adaptive Black Stretch:
The level can be set in the range of 0 to 255.
Back Light Compensation/High Light Compensation:
BLC (Back light compensation) / HLC (High light compensation) / Off (Range : 0 to 31) *only when Super Dynamic/ Intelligent Auto: Off
Fog Compensation:
On / Off (only when Intelligent auto / auto contrast adjust : Off)
Maximum Gain (AGC:
The level can be set in the range of 0 to 11.
Color/BW (ICR:
Off / On (IR Light Off) / On (IR Light On) / Auto1 (IR Light Off) / Auto2 (IR Light On) / Auto3 (SCC)
IR LED Light:
High / Middle / Low / Off, Maximum irradiation distance : 70 m {Approx. 230 ft} (30IRE) / 50 m {Approx. 164 ft} (50IRE)
Digital Noise Reduction (DNR:
The level can be set in the range of 0 to 255.
Video Motion Detection (VMD:
On / Off, 4 areas available
Scene Change Detection (SCD:
On / Off, 1 areas available
Audio Detection:
On / Off
AI Sound Classification:
Gunshot, Yell, Vehicle horn, Glass break
AI Analytics:
AI Video Motion Detection, AI Privacy Guard, AI Face Detection, AI People Detection, AI Vehicle Detection, AI Non mask Detection, AI Occupancy Detection, AI Scene Change Detection
Privacy Zone:
On / Off, Up to 8 zones available
VIQS:
On / Off, Up to 8 zones available
Image Rotation:
0° / 90° / 180° / 270°
Camera Title (OSD:
On / Off, Up to 40 characters (alphanumeric characters, marks)
Focus Adjustment:
Auto focus / Manual
Optical Zoom:
3.1 x (Motorized zoom / Motorized Focus)
Extra zoom:
3.1x - 9.3x (when resolution is 640 x 360)
Focal Length:
2.9 - 9 mm {1/8 inches - 13/32 inches}
Angular Field of View:
Horizontal : 36° (TELE) – 115° (WIDE), Vertical : 20° (TELE) – 61° (WIDE)
Maximum Aperture Ratio:
1 : 1.3 (WIDE) – 1 : 2.5 (TELE)
Focus range:
0.3 m {11-13/16 inches} – ∞
DORI Detect (25ppm / 8ppf:
Wide: 24.5 m / 80.3 ft, Tele: 118.2 m / 387.7 ft
DORI Observe (62.5ppm / 19ppf:
Wide: 9.8 m / 32.1 ft, Tele: 47.3 m / 155.1 ft
DORI Recognize (125ppm / 38ppf:
Wide: 4.9 m / 16.1 ft, Tele: 23.6 m / 77.5 ft
DORI Identify (250ppm / 76ppf:
Wide: 2.4 m / 8.0 ft, Tele: 11.8 m / 38.8 ft
System on Chip (SoC:
Ambarella CV25M
Adjusting Angle:
Horizontal : -240 to +120°, Vertical : -30 to +85°, Yaw : ±100°
Camera Control:
Brightness, AUX On / Off
Audio Support:
Mic (Line) Input : On / Off Volume adjustment : Low / Middle / High Audio Output : On / Off Volume adjustment : Low / Middle / Hig
GUI / Setup Menu Language:
English, Italian, French, German, Spanish, Portuguese, Russian, Chinese, Japanese
Network IF:
10Base-T / 100Base-TX, RJ45 connector
Resolution H.265/ H.264/ JPEG (MJPEG) 16:9:
[16:9 mode (60 fps mode)] , [16:9 mode (30 fps mode)], [16:9 mode (50 fps mode)] , [16:9 mode (25 fps mode)] : 1920x1080, 1280x720, 640x360, 320x180
Resolution H.265/ H.264/ JPEG (MJPEG) 4:3:
[4:3 mode(30 fps mode)] , [4:3 mode (25 fps mode)] : 1280x960, VGA, QVGA [4:3 mode(15 fps mode)] , [4:3 mode (12.5 fps mode)] : 2048x1536, 1280x960, VGA, QVGA
JPEG - Image Quality:
10 steps
Smart Coding:
GOP (Group of pictures control): Off/ Low (Variable GOP 1s-8s)/ Mid (Variable GOP 4s-16s)/ Advanced(Fixed GOP 60s w/1s key-frame)/ Frame rate control (Variable GOP 4s-16s with frame rate control)
Audio Compression:
G.726 (ADPCM) : 16 kbps / 32 kbps , G.711 : 64 kbps , AAC-LC : 64 kbps / 96 kbps / 128 kbps
Audio Transmission Mode:
Off / Mic (Line) input / Audio output / Interactive (Half duplex) / Interactive (Full duplex)
Supported Protocol (IPv6:
TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP, SNMPv1/v2/v3, DHCPv6,RTP, MLD, ICMP, ARP, IEEE 802.1X,DiffServ, FTP, SFTP, MQTT, LLDP
Supported Protocol (IPv4:
TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, SNMPv1/v2/v3, UPnP, IGMP, ICMP, ARP, IEEE 802.1X, DiffServ, SRTP, FTP, SFTP, MQTT, LLDP
No. of Simultaneous Users:
Up to 14 users (Depends on network conditions)
Secure:
FIPS 140-2 level 3 (NXP® EdgeLock® SE050F), Device Certificate GlobalSign® pre-installed, HTTPS, User authentication, Digest authentication, Host authentication
Secure (Continued:
IEEE802.1X, System log, Image transmission log, Brute-force protection, Alteration detection
SDXC/SDHC/SD Memory Card:
microSDXC memory card : 64 GB, 128 GB, 256 GB, 512 GB microSDHC memory card : 4 GB, 8 GB, 16 GB, 32 GB microSD memory card : 2 GB
Mobile Terminal Compatibility:
iPad, iPhone, AndroidTM terminals
ONVIF® Profile:
G / M / S / T
Alarm Source:
3 terminals input, VMD alarm, Command alarm, Audio detection alarm
Alarm Actions:
SDXC/SDHC/SD memory recording, E-mail notification, HTTP alarm notification Indication on browser, Panasonic alarm protocol output
Safety:
UL (UL62368-1), c-UL (CSA C22.2 No.62368-1), CE, IEC62368-1
EMC:
FCC (Part15 ClassA), ICES-003 ClassA, EN55032 ClassB, EN55035
Power Source and Power Consumption:
DC power supply : DC12 V 720 mA, Approx. 8.6 W PoE (IEEE802.3af compliant) Device :DC48 V 180 mA, Approx. 8.7 W (Class 0 device)
Ambient Operating Temperature:
-10 °C to +50 °C (14 °F to 122 °F)
Ambient Operating Humidity:
10 to 90 % (no condensation)
Dimensions:
ø129.5 mm x 101 mm (H) {ø5-3/32 inches x 3-31/32 inches (H)} Dome radius 40 mm {1-9/16 inches}
Mass (approx:
Approx. 470 g {1.04 lbs.}
Finish:
Main body : ABS resin, i-PRO white / Dome section : Acrylic resin, Clear
Monitor Output (for Adjustment:
VBS : 1.0 V [p-p] / 75 Ω, composite, Pin jack An NTSC or PAL signal can be outputted from camera
Audio input:
ø3.5 mm stereo mini jack For microphone input : Recommended applicable microphone : Plug-in power type (Sensitivity of microphone : -48 dB±3 dB (0 dB=1 V/Pa, 1 kHz))
Audio Output:
ø3.5 mm stereo mini jack (monaural output) Output impedance : Approx. 600 Ω (unbalanced) / Output level : –20 dBV
External I/O Terminals (Cable:
ALARM IN 1 (Black & white input, Auto time adjustment input) (x1), ALARM IN 2 (ALARM OUT) (x1), ALARM IN 3 (AUX OUT) (x1)

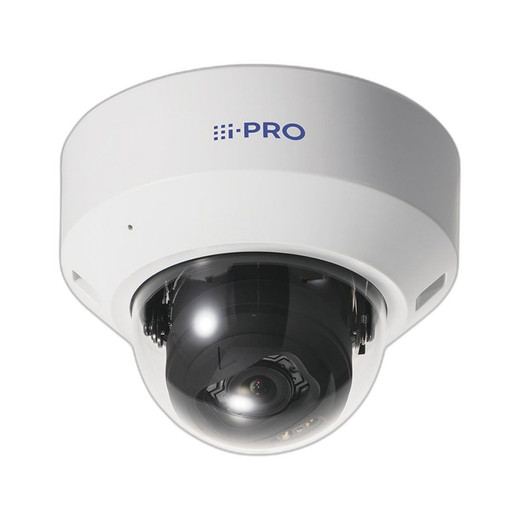

Product Type:
Dome
Connectivity:
Wired
IP Rating:
IK10
Night Vision:
IR
Power Type:
PoE
PoE Class:
0
Form Factor:
Dome
Compatibility:
ONVIF
Resolution:
2MP
Video Compression:
H.265, H.264, MJPEG
IR Distance:
70m
Built-in IR:
Yes
Day/Night:
Yes
Analytics:
Facial Recognition
Storage Support:
microSD
Signed Firmware:
Yes
HTTPS Encryption:
Yes
Operating System:
Android
