Frame Rate:
High
Features:
AI
Sensor Type:
1/2.7" Progressive Scan CMOS
Max. Resolution:
2592 × 1944
Min. Illumination:
Color: 0.003 Lux @ (F1.4, AGC ON), B/W: 0 Lux with IR
Shutter Time:
1/3 s to 1/100, 000 s
Day & Night:
IR cut filter
Angle Adjustment:
Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°

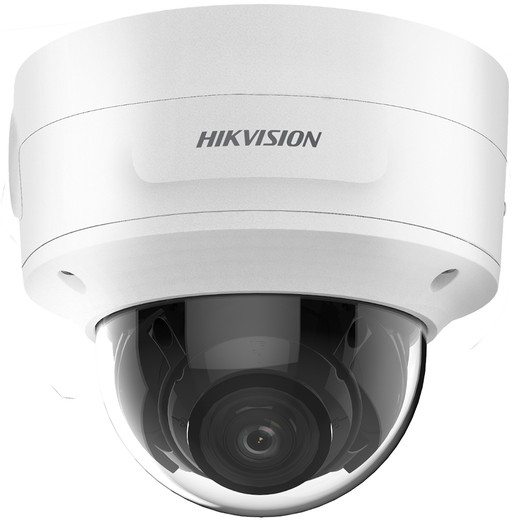

Lens Type:
Varifocal lens, motor-driven lens, 2.7 to 13.5 mm and 7 to 35 mm optional
Focal Length & FOV:
2.7 to 13.5 mm: horizontal FOV 103° to 32°, vertical FOV 73° to 24°, diagonal FOV 142° to 40°;7 to 35 mm: horizontal FOV 28° to 10°, vertical FOV 21° to 8°, diagonal FOV 35° to 13°
Lens Mount:
2.7 to 13.5 mm: Ø14;7 to 35 mm: Integrated
Iris Type:
Auto-iris
Aperture:
2.7 to 13.5 mm: F1.4;7 to 35 mm: F1.6
DORI:
2.7 to 13.5 mm: D: 64 to 187 m, O: 25 to 74 m, R: 12 to 37 m, I: 6 to 18 m;7 to 35 mm: D: 200 to 580 m, O: 79 to 230 m, R: 40 to 116 m, I: 20 to 58 m
Supplement Light Type:
IR
Supplement Light Range:
2.7 to 13.5 mm: up to 40 m;7 to 35 mm: up to 50 m
Smart Supplement Light:
Yes
IR Wavelength:
850 nm
Main Stream:
50 Hz: 25 fps (2592 × 1944, 2688 × 1520, 1920 × 1080, 1280 × 720);60 Hz: 24 fps (2592 × 1944);30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream:
50 Hz: 25 fps (640 × 480, 640 × 360);60 Hz: 30 fps (640 × 480, 640 × 360)
Third Stream:
50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360);60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360);*Third stream is supported under certain settings.
Fourth Stream:
50 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360);60 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360);*Fourth stream is supported under certain settings.
Video Compression:
Main stream: H.265/H.264/H.264+/H.265+;Sub-stream: H.265/H.264/MJPEG;Third stream: H.265/H.264;Fourth stream: H.265/H.264/MJPEG;*Third stream and fourth stream are supported under certain settings.
Video Bit Rate:
32 Kbps to 16 Mbps
H.264 Type:
Baseline Profile/Main Profile/High Profile
H.265 Type:
Main Profile
Bit Rate Control:
CBR/VBR
Scalable Video Coding (SVC:
H.264 and H.265 encoding
Region Of Interest (ROI:
5 fixed regions for main stream and sub-stream
Target Cropping:
Yes
Audio Compression:
G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC
Audio Bit Rate:
64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC)
Audio Sampling Rate:
8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Environment Noise Filtering:
Yes
Protocols:
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, ARP, SNMP
Simultaneous Live View:
Up to 6 channels
API:
Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, ISUP
User/Host:
Up to 32 users. 3 user levels: administrator, operator and user
Security:
Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
Network Storage:
MicroSD/SDHC/SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR);Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
Client:
iVMS-4200, Hik-Connect, Hik-Central
Web Browser:
Plug-in required live view: IE 10+;Plug-in free live view: Chrome 57.0+, Firefox 52.0+;Local service: Chrome 57.0+, Firefox 52.0+
Image Parameters Switch:
Yes
Image Settings:
Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
Day/Night Switch:
Day, Night, Auto, Schedule
Wide Dynamic Range (WDR:
120 dB
SNR:
= 52 dB
Image Enhancement:
BLC, HLC, 3D DNR
Ethernet Interface:
1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage:
Built-in micro SD/SDHC/SDXC slot, up to 256 GB
Audio Support:
1 input (line in), 3.5 mm connector, max input amplitude: 3.3 vpp, input impedance: 4.7 KO, interface type: non-equilibrium; 1 output (line out), 3.5 mm connector, max output amplitude: 3.3 vpp, output impedance: 100 O, interface type: non-equilibriu
Alarm:
1 input, 1 output (max. 24 VDC/24 VAC, 1 A)
Reset Key:
Yes
Basic Event:
Motion detection (human and vehicle targets classification), video tampering alarm, exception
Smart Event:
Unattended baggage detection, object removal detection, scene change detection, audio exception detection
Linkage:
Linkage Method
Face Capture:
Yes
Perimeter Protection:
Line crossing detection, intrusion detection, region entrance detection, region exiting detection
Power Type:
12 VDC ± 25%, 0.9 A, max. 10.8 W, Ø5.5 mm coaxial power plug;PoE: 802.3af, Class 3, 36 V to 57 V, 0.36 A to 0.23 A, max. 12.9 W
Dimension:
Ø153.5 mm × 133.1 mm (Ø6.0" × 5.2")
Package Dimension:
244 mm × 174 mm × 173 mm (9.6" × 6.9" × 6.8")
Weight:
Approx. 830 g (1.8 lb.)
With Package Weight:
Approx. 1729 g (3.9 lb.)
Storage Conditions:
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup And Operating Conditions:
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
General Function:
Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter
Web Client Language:
33 languages;English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditiona
EMC:
FCC SDoC (47 CFR Part 15, Subpart B); IC VoC (ICES-003: Issue 6, 2016);
Protection:
IP67 (IEC 60529-2013), IK10 (IEC 62262:2002)

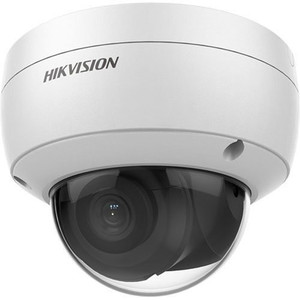

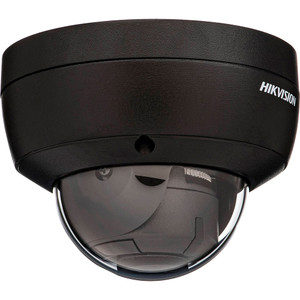

Product Type:
Dome
Connectivity:
Wired
IP Rating:
IP67
Resolution:
5MP
Night Vision:
IR
