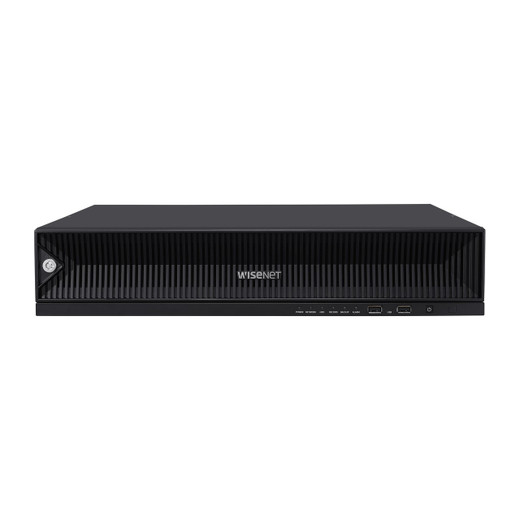

Hanwha XRN-3210RB2 32-Channel NVR

Hanwha XRN-3210RB2 32-Channel NVR

The Hanwha XRN-3210RB2 is a robust 32-channel network video recorder engineered for enterprise-grade surveillance deployments. This Linux-based NVR combines high-capacity recording, intelligent event management, and seamless integration with Hanwha's Wisenet AI camera ecosystem to deliver comprehensive security infrastructure for large-scale installations.

Key Features

• 32-channel recording with support for 20MP+ resolution cameras
• Dual HDMI outputs: 4K (3840×2160@30Hz) and Full HD (1920×1080@60Hz) for flexible display configurations
• Advanced storage: 8 SATA slots supporting up to 80TB capacity with hot-swap capability
• Native RAID 5/6 support for data redundancy and fault tolerance
• Dual-stream recording modes with flexible scheduling (continuous, event-based, pre/post event)
• Up to 400 Mbps recording bandwidth in distributed mode and RAID mode
• Multi-user access: 4 concurrent users (1 local, 3 remote) with up to 80-channel simultaneous playback
• P2P connectivity with QR code configuration for rapid deployment
• Fisheye dewarping support for panoramic camera integration
• Intelligent event triggering including camera defocus detection, video loss alerts, and video analytics

Technical Highlights

Recording performance scales across multiple configurations: distributed mode supports up to 400 Mbps, while normal mode handles 150 Mbps baseline, with RAID degradation maintaining 320 Mbps throughput. The XRN-3210RB2 supports H.265 compression for efficient bandwidth utilization without compromising image quality. Playback capability reaches 64 Mbps in RAID mode across all 32 channels simultaneously, or 32 Mbps in non-RAID configurations.

The system provides comprehensive event management through 8 alarm inputs, 4 alarm outputs, motion detection across 4-point and 8-point polygon configurations, and camera-level analytics triggers. Actions extend to email notifications, FTP uploads, PTZ preset activation, and SUNAPI command execution. Dual Gigabit Ethernet interfaces enable redundant network paths, while a third Ethernet port supports WAN connectivity.

Security architecture includes 802.1X authentication, IP filtering, device certificates signed by Hanwha Techwin Root CA, encrypted firmware, and comprehensive access logging (up to 100,000 entries per log type). The embedded OS supports both IPv4 and IPv6 with full protocol suite including ONVIF, RTSP, HTTP/HTTPS, SNMP, and Hanwha's proprietary SUNAPI.

AI and Integration Capabilities

Native compatibility with Wisenet AI cameras enables object classification, vehicle detection with color/type identification, and advanced demographic analytics including age and gender estimation. The CMS platform supports up to 300 PTZ presets and fisheye dewarping for local and network playback. Remote access leverages WAVE, SSM, and Smart Viewer software, with support for iOS/Android mobile platforms via Wisenet Mobile.

Applications

Ideal for large commercial facilities, transportation hubs, retail chains, and government installations requiring extensive multi-site surveillance with centralized management. The N+1 failover and ARB (Automatic Rebuild) features ensure business continuity in mission-critical deployments.

James Everett

The XRN-3210RB2 represents an advanced middle-tier enterprise NVR balancing capacity and performance. Its distributed recording architecture outperforms single-mode systems, supporting heterogeneous camera mixes without bandwidth bottlenecks. The 80TB maximum capacity with hot-swap SATA provides operational flexibility without downtime.

RAID implementation with degradation-mode throughput guarantees is critical for 24/7 operations. The dual 3-Gbps Ethernet design mitigates network single points of failure. Event-driven recording combined with multi-stream capability enables resource optimization—simultaneous high-resolution continuous recording on critical zones while lower-bandwidth event capture handles perimeter coverage.

Hanwha's Wisenet AI integration eliminates third-party codec licensing, reducing total cost of ownership. The system's Linux OS and ONVIF compliance ensure long-term vendor independence and integration flexibility with enterprise VMS platforms.
