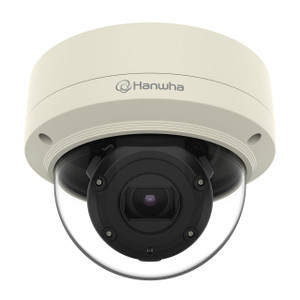

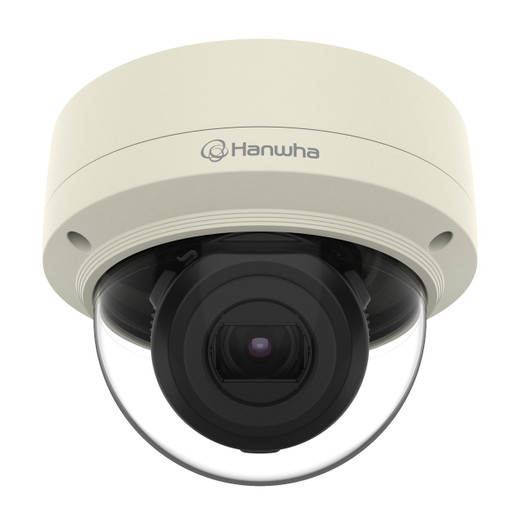

Hanwha XNV-6120 2MP Outdoor PTZ Dome Camera

Hanwha XNV-6120 2MP Day/Night Outdoor 12x Optical Zoom PTZ Dome IP Camera

The Hanwha XNV-6120 is a professional-grade outdoor PTZ dome camera engineered for comprehensive surveillance of large commercial properties, perimeter security, and critical infrastructure. Built on a 1/2.8" CMOS sensor with 2-megapixel (1920x1080) resolution, this camera delivers sharp, detailed imagery essential for identification and incident investigation. The 12x optical zoom (5.2–62.4mm focal length) enables operators to capture fine detail across vast distances—from wide-area monitoring to precise target identification—without relying on digital interpolation that compromises image quality.

Key Features

• 12x Optical Zoom PTZ: Pan 354°, tilt 75°, rotate 355° for comprehensive area coverage and flexible targeting
• Day/Night Capability: Auto ICR switching with extreme low-light performance (0.003 Lux B&W, 0.03 Lux color) for 24/7 surveillance
• Wide Dynamic Range (WDR): 150dB WDR plus HLC, BLC, and SSDR for balanced imagery in high-contrast outdoor lighting
• IP66/IP67 & IK10 Rated: Sealed dome design withstands harsh weather, vandalism, and extreme temperatures (-40°C to +55°C operating)
• Advanced Analytics: Motion detection, face detection, defocus/fog detection, directional tracking, loitering, tampering, virtual line crossing, and audio detection
• Efficient Compression: H.265/H.264 and MJPEG support with WiseStream II smart codec to optimize bandwidth and storage
• PoE Powered: IEEE 802.3af Class 3 PoE delivers power and data over single Ethernet cable (max 7.8W)

Technical Specifications

• Video Resolution: Full 1920x1080, plus 11 additional resolution options down to 320x240
• Frame Rate: Up to 60fps (H.265/H.264) or 30fps (MJPEG)
• Zoom Optics: DC auto iris lens, F1.6 (wide) to F3.0 (tele), 54.58° to 5.30° horizontal field of view
• Range Performance: Detect at 829.7m (tele), recognize at 165.9m (tele), identify at 83.0m (tele)
• Storage: Dual microSD/SDHC/SDXC slots (up to 512GB total) for edge recording; NAS support via Ethernet
• Connectivity: 10/100BASE-T Ethernet, RJ-45; audio I/O (selectable mic/line in); 1 alarm input/output
• Security: HTTPS/SSL encryption, digest authentication, 802.1X EAP support, IP filtering, user access logging
• Compatibility: ONVIF Profile S/G/T, Wisenet open platform, HTTP API; supports unicast (20 users) and multicast streaming

Ideal Applications

The XNV-6120 excels in outdoor environments requiring extended zoom range and precise PTZ control: large commercial campuses, parking lots, port facilities, traffic monitoring, perimeter defense, public event venues, and critical infrastructure sites. Exceptional low-light performance and analytics make it suitable for 24/7 unattended surveillance.

Karl Wilson

The XNV-6120 represents a solid mid-range outdoor PTZ offering balanced specifications for professional security deployments. Its 12x optical zoom and 2MP resolution strike a pragmatic middle ground—capable of recognizing subjects at meaningful distances without the power demands or cost of higher-megapixel alternatives. The 150dB WDR implementation and multi-layer backlight compensation (WDR, HLC, BLC, SSDR) are critical for outdoor use where sun glare and shadow contrast are constant challenges.

Built-in analytics, particularly motion detection and face detection, reduce false alarms and enable intelligent event filtering at the edge. PoE Class 3 operation (7.8W peak) keeps installation costs low by eliminating separate power runs. The dual microSD slots provide reliable failover edge storage.

ONVIF compliance ensures integration with third-party VMS platforms. Its IP67 rating and -40°C startup capability confirm engineering for genuine outdoor extremes. Operators should note the 2.1m minimum focus distance—suitable for perimeter and area monitoring but not close-range detail work.

The 1024MB RAM and dual-slot storage enable robust performance during high-bitrate recording or busy analytics processing.

Product Documentation

📄 Download Product Datasheet (PDF)
