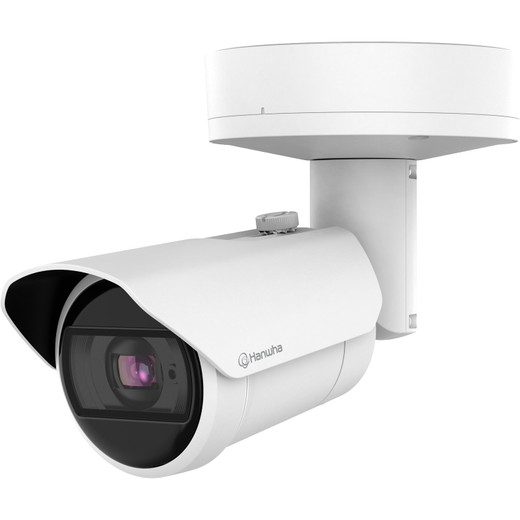

Hanwha XNO-C8083R 6MP Varifocal IR Bullet Camera

Hanwha XNO-C8083R 6MP Varifocal IR Bullet Camera

The Hanwha XNO-C8083R is a professional-grade 6MP outdoor bullet camera engineered for demanding surveillance applications requiring high-resolution imagery, intelligent analytics, and exceptional durability. Built on Hanwha's AI-powered platform, this camera delivers advanced object detection, comprehensive WDR performance, and reliable operation across extreme environmental conditions.

Key Features

• 6MP progressive CMOS sensor (3328x1872) with multiple resolution profiles up to 30fps
• 4.4~9.3mm motorized varifocal lens (2.1x zoom) with P-iris and IR correction
• Extreme Wide Dynamic Range (extremeWDR) at 120dB for challenging lighting
• WiseIR technology with 40-meter infrared range for complete darkness visibility
• AI-based object detection: person, face, vehicle, and license plate recognition
• Built-in Digital Image Stabilization with gyro sensor for shake-free footage
• Advanced noise reduction: WiseNRⅡ and SSNRⅤ technology
• IP66/IP67 and IK10 vandal-resistant certification for outdoor durability
• PoE (IEEE 802.3af Class 3) power delivery with 12VDC alternative
• microSD/SDHC/SDXC edge storage up to 512GB
• H.265/H.264/MJPEG video compression with WiseStream smart codec
• ONVIF Profile S/G/T/M compatibility and MQTT support

Technical Specifications

Imaging: The 1/1.8" progressive CMOS sensor captures fine detail with F1.3 wide aperture performance. Minimum illumination reaches 0.04 Lux in color and 0.004 Lux in black & white, with 0 Lux capability under IR. The varifocal lens delivers 113°–47° horizontal field of view and supports electronic image rotation including 90°/270° hallway mode.

Intelligent Analytics: AI-driven motion detection supports 8 polygonal zones with configurable triggers. Advanced classification identifies vehicle types (car, bus, truck, motorcycle, bicycle), performs people counting, queue management, and heatmap analysis. Virtual line crossing detection and area monitoring enhance perimeter security.

Environmental Resilience: Operating temperature range of −40°C to +55°C with 0–95% humidity tolerance ensures performance in diverse climates. IP66/IP67 submersible rating and IK10 impact resistance (up to 20 joules) provide comprehensive protection against weather, vandalism, and physical stress.

Network & Security: Dual-stream support delivers up to 10 profiles with 3 virtual channels. Security features include HTTPS/SSL encryption, 802.1X authentication, IP filtering, and user access logging. Alarm I/O ports support analytics-triggered events with email, FTP, and MQTT notifications.

Ted Perry

The XNO-C8083R represents a mature platform for mid-to-high-tier outdoor surveillance deployments. The 120dB extremeWDR engine effectively manages backlit scenarios common in perimeter applications, while AI-native architecture reduces post-processing overhead. Motorized varifocal optics eliminate fixed focal-length constraints, allowing field adjustment without camera replacement.

The 40-meter IR throw with P-iris correction balances long-range detection capability against typical mounting heights of 15–25 feet. PoE Class 3 compliance (maximum 12.95W) simplifies infrastructure—most managed PoE switches handle 30+ units per port. Consider detection-class performance: at wide angle, 44.1m detect range suits perimeter fencing; tele position extends to 153.1m for critical access points.

Gyro-stabilization addresses windy installations and vibration transfer from shared conduits. The inclusion of business intelligence (people counting, heatmap) and virtual analytics adds value beyond basic motion detection for retail, campus, and traffic monitoring use cases.

Applications

Ideal for perimeter security, critical infrastructure protection, parking facilities, city surveillance, retail environments, and transportation hubs where high-resolution imagery, AI analytics, and extreme durability are required.

Product Documentation

📄 Download Product Datasheet (PDF)
