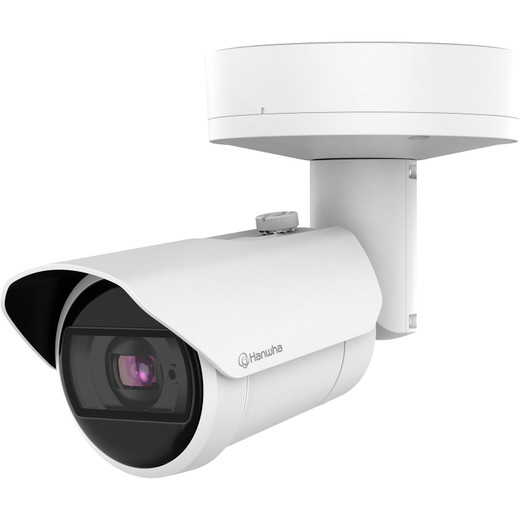

Hanwha XNO-C7083R 4MP Varifocal IR Bullet Camera

Hanwha XNO-C7083R 4MP Varifocal IR Bullet Camera

The Hanwha XNO-C7083R is a professional-grade 4MP outdoor bullet camera engineered for demanding surveillance applications. Built on Hanwha's advanced AI engine, this camera delivers intelligent object detection, classification, and analytics while maintaining exceptional image quality across dynamic lighting conditions. The motorized 2.8–10mm varifocal lens (3.6x zoom) with DC auto iris provides flexible field-of-view adjustment from 110° wide to 30° telephoto, enabling operators to optimize coverage for any deployment scenario.

Key Features

• 4MP Resolution & 60fps Capture: 2592x1520 progressive CMOS imaging at up to 60fps (H.265/H.264), ensuring smooth video and fine detail preservation
• Extreme WDR (120dB): Simultaneous capture of bright and dark areas, ideal for mixed sunlight/shadow environments and backlit scenes
• AI-Powered Analytics: Real-time detection and classification of persons, faces, vehicles, and license plates with vehicle sub-types (car, bus, truck, motorcycle, bicycle)
• 40m IR Range: WiseIR technology delivers reliable night vision up to 131 feet with 0 lux capability when IR is engaged
• Motorized Varifocal Lens: 2.8–10mm zoom with simple manual focus and DC auto iris for precise lens control
• Rugged IP66/IP67 & IK10 Rating: Certified for harsh outdoor conditions with protection against water ingress, dust, and vandalism
• Digital Image Stabilization: Built-in gyro sensor reduces vibration effects for stable surveillance footage
• Advanced WDR Modes: Selectable BLC, HLC, and SSDR for optimized backlight compensation
• PoE Powered: IEEE 802.3af Class 3 PoE (12.95W max) or 12VDC auxiliary power; ultra-low power consumption

Technical Highlights

Video compression leverages H.265 and H.264 codecs alongside MJPEG, with WiseStream II/III smart codec technology reducing bandwidth without sacrificing detail. The camera supports up to 10 streaming profiles and 3 virtual channels for flexible multi-client deployment. Audio input (selectable mic/line) and output (line out) enable two-way communication and event-triggered audio alerts.

Edge storage via microSD/SDHC/SDXC (up to 512GB) enables local backup and continuous recording. Advanced motion detection includes 8 configurable polygonal zones, while privacy masking supports 32 quadrangle zones with color and mosaic options. Alarm I/O (2 configurable ports) triggers on analytics events, network disconnect, scheduled time windows, or MQTT subscriptions, with support for file upload, email notification, NAS recording, and HTTP/HTTPS handover.

Security is enforced through HTTPS/SSL, digest authentication, IP filtering, 802.1X (EAP-TLS/LEAP/PEAP), and pre-installed Hanwha Techwin certificates. Full ONVIF Profile S/G/T/M compliance plus SUNAPI and Wisenet open platform integration ensure broad ecosystem compatibility.

Operating temperature range: −40°C to +55°C (−40°F to +131°F). Dimensions: ø93.4 × 276.6mm; weight: 1.64kg. Includes backbox.

Ideal Applications

• Critical infrastructure and perimeter surveillance
• City and public space monitoring
• Industrial facilities and logistics hubs
• Retail and commercial campuses
• Traffic and vehicle enforcement

Ted Perry

The XNO-C7083R stands out in the mid-range bullet camera market for its balance of optical flexibility, AI-driven intelligence, and weatherproof durability. The 3.6x motorized varifocal lens eliminates the need for fixed-lens variants, reducing SKU complexity and allowing field operators to optimize zoom without camera replacement. The 120dB extreme WDR combined with 0.0038 lux BW sensitivity ensures usable imagery in venues ranging from full daylight parking lots to near-total darkness, a capability rarely matched at this price tier.

AI-native object detection—particularly license plate recognition and vehicle type classification—provides immediate actionable intelligence without post-processing dependencies. The built-in gyro sensor for digital stabilization is a thoughtful inclusion often reserved for premium models; it directly improves forensic usability in vibration-prone installations (elevated highways, railway corridors).

PoE Class 3 (12.95W max) keeps infrastructure costs low while supporting full feature set. microSD edge storage paired with MQTT-triggered alerts creates a resilient local backup loop, mitigating network dependency. ONVIF and Wisenet open platform certification ensures vendor lock-in risk is minimal.

The IP66/IP67 + IK10 triple certification is industry-standard for outdoor bullets, but the -40°C to +55°C operating range confirms this camera is built for genuine alpine and desert deployments—many competitors limit to -30°C or +50°C.
