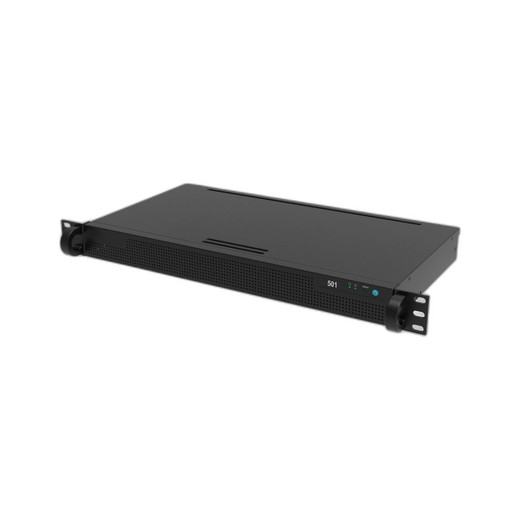

Hanwha Bridge-501 Wisenet SKY Bridge NVR

Hanwha Bridge-501 Wisenet SKY Bridge NVR

The Hanwha Bridge-501 is a compact 1U rack-mount network video recorder engineered for mid-to-large scale IP camera deployments. Built on embedded Linux architecture, this enterprise-grade NVR delivers reliable video storage and management with cloud-integrated analytics capabilities, making it ideal for security operations requiring flexible scaling and redundant network connectivity.

Key Features

• Supports up to 50 cameras at 1MP or 35 cameras at 4MP resolution
• Cloud analytics capability for up to 10 concurrent streams
• 1TB internal HDD with 800GB usable video storage capacity
• Dual gigabit ethernet ports for network redundancy and bandwidth management
• Multiple video outputs: VGA, HDMI, and DisplayPort for flexible monitoring setups
• Compact 1U form factor fits standard 19-inch server racks
• 2x USB 3.0 ports for rapid data transfer and device integration
• Included rack mount brackets for secure installation

Storage and Connectivity

The Bridge-501 features a 1TB spinning hard disk drive with 800GB of usable storage for continuous video recording. Dual gigabit ethernet RJ-45 ports enable network redundancy, critical for uninterrupted surveillance in large camera networks. The embedded Linux operating system provides stable, lightweight performance without complex software overhead.

Display and Output Options

Multiple video output connections—VGA, HDMI, and DisplayPort—allow seamless integration with diverse monitoring equipment and multi-display configurations. This flexibility supports command centers and control room environments with varied display requirements, enabling simultaneous monitoring across multiple screens without additional hardware.

Physical Specifications

Measuring 1U at 427mm x 251mm x 45mm and weighing 8.6kg, the Bridge-501 is designed for dense rack deployments. It operates reliably in temperatures from 0°C to 35°C and humidity levels up to 70% RH. The 120W internal power supply supports 100–240V AC input, simplifying global deployment across different regional power standards.

Applications

Ideal for retail networks, corporate campuses, transportation hubs, and multi-site enterprises requiring centralized video management. The scalable camera support and cloud analytics integration make it suitable for growing security operations that need reliable local storage with modern cloud connectivity.

James Everett

The Bridge-501 balances performance and compactness effectively for mid-market deployments. The 50-camera capacity at 1MP or 35 cameras at 4MP provides meaningful headroom for medium environments, while the 800GB usable storage supports continuous recording for 24+ hours depending on compression and resolution. The inclusion of dual gigabit ethernet and redundant display outputs reflects enterprise-grade thinking—network redundancy prevents single points of failure in mission-critical surveillance.

Cloud analytics support for 10 concurrent streams bridges local storage with modern cloud security workflows. Its rack-mount form factor and included brackets streamline deployment in data centers and server rooms. For organizations standardized on Hanwha's Wisenet ecosystem, this NVR integrates seamlessly with compatible IP cameras and management software.
